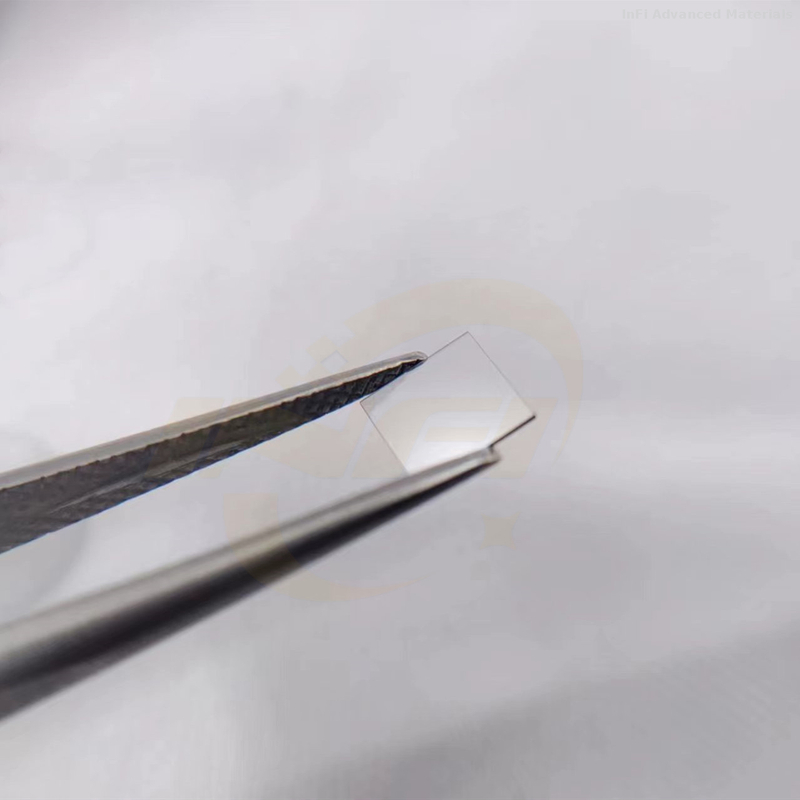

0.1mm Thickness Optical CVD Diamond

0.1mm thickness optical grade CVD diamond plates for optical window use
0.1 mm:
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button
  • SCD-OP

  • Chenguang

Parameters

• Extremely broad transmission spectrum
1064nm:>65% ;
8μm~25μm:>70% 。
• Highest thermal conductivity (>2000 W m-1 K-1)
• Chemically inert and operates in corrosive environments
• Biocompatiblity
• Scratch resistant
• Low birefringence
• Highest Raman gain coefficient
• Low absorption
• Thicknesses available up to 3 mm
• Wide range of sizes available
• Single crystal path length >10 mm

• Orientation: 4pt/100

•Size range: 2-15 mm (single crystal CVD diamond),

  Thickness:  0.05-3mm,

   up to 10*10*2 and 15*15*0.5

Edge Features

< 0.2 mm

Edge Orientation

<100> edges

Face Orientation

{100} faces

Laser Kerf

3-5°

Lateral Tolerance:

‘+0.1/-0.1 mm

Flatness

Within 2µm

Parallelism :

10-20um

Polished sides Roughness, Ra

polished, Ra < 10-30 nm

Thickness Tolerance

‘+/- 0.05 mm

Boron Concentration [B]:

<0.05ppm

Nitrogen Concentration:

< 10 ppm

Refractive Index (10.6 µm) (1):

1064nm:2.392
600nm:2.415

Thermal Conductivity:

typically > 1900 Wm-1K-1

Transmission:

Transmittance :1064nm:>65%
                              8μm~25μm:>70%

Packing:

Packing-3
