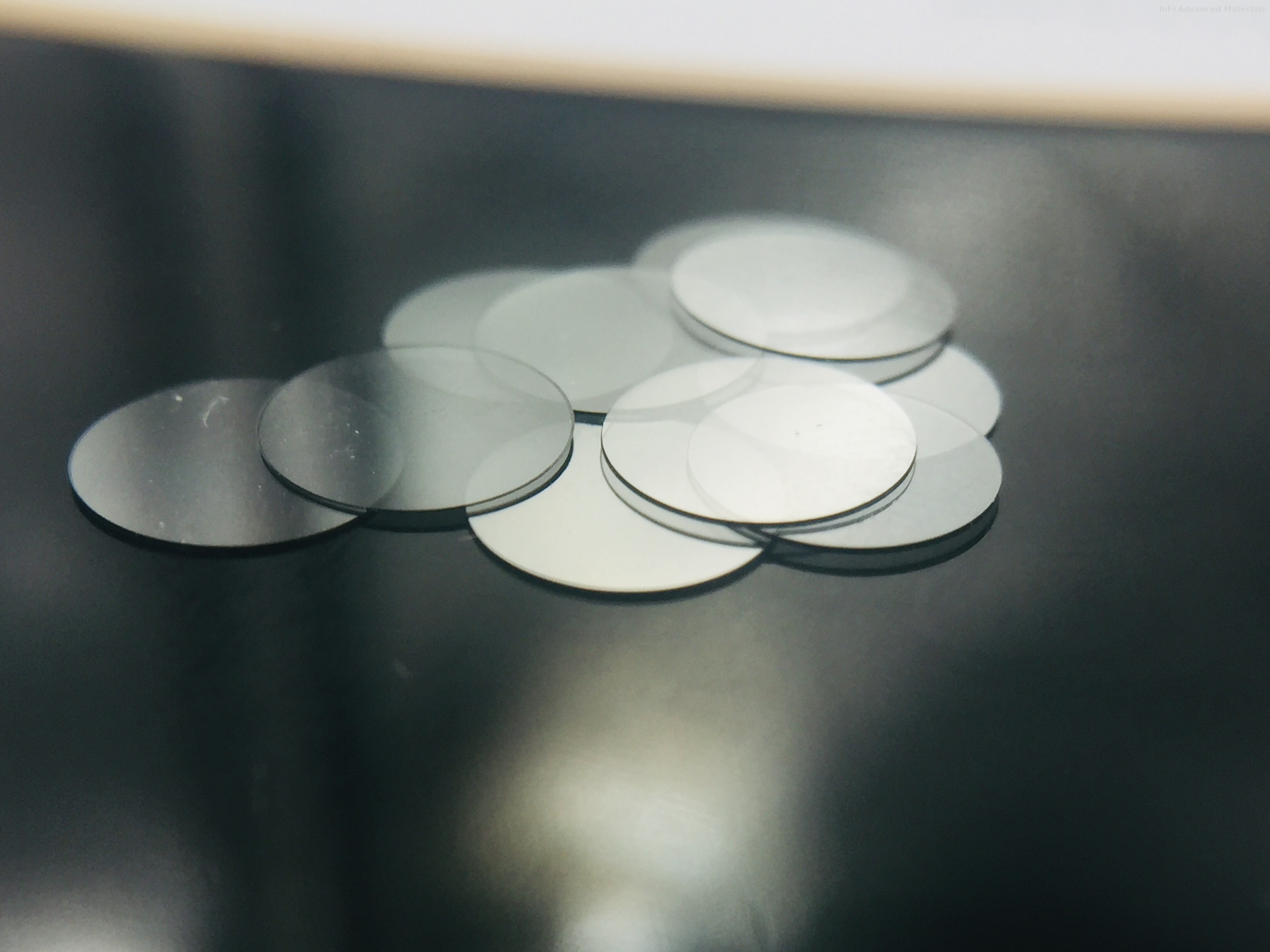

Big Size Cvd Diamond Wafer Optical Grade single crystal CVD Diamond for Optical Window 10*0.1

Single crystal diamond CVD (chemical vapor deposition) refers to a type of diamond that is produced using the CVD process. In this process, a mixture of carbon-containing gases is decomposed under controlled conditions, resulting in the formation of a single crystal diamond layer on a substrate.

Single crystal diamond CVD is known for its exceptional hardness and thermal conductivity, which makes it useful for a range of industrial and scientific applications, such as cutting and grinding tools, heat spreaders, and optical components.

Compared to other forms of synthetic diamond, single crystal diamond CVD has a highly ordered crystal structure, which gives it improved physical and mechanical properties. This makes it a desirable material for a range of high-performance applications, where its hardness and thermal conductivity are important factors.

In summary, single crystal diamond CVD is a type of synthetic diamond that is produced using the CVD process and is characterized by its exceptional hardness and thermal conductivity. It has a wide range of applications in industries such as manufacturing, electronics, and optics.


Size:
Orientation:
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button
  • JSD

  • INFI


Size Available:

Crystal growth process:
Mono crystal CVD diamond
Color:
Normal grade - Near colorless, Mechanic grade - Brown

Advantage:
1) Regular shape, uniform size. The size can be strictly controlled according to customer needs.
2) High repurchase rate and high cost performance, well received by customers.
3) No visible growth lines,under 100x microscope, no black spots, no impurities, no crack.
4) The stress is good, the number of times of reuse is high, and it is not easy to crac
Size
7*7  8*8  9*9  10*10 11*11  12*12  13*13  14*14
 Thickness: 0.05-3mm
Orientation:
4pt/100
Shape:
Square,Triangles, rectangles, swords
Lateral Dimensions Measured
to smaller side
Edges
Laser Cut
Laser Kerf
< 3°
Lateral Tolerance:
+0.1/-0 mm
Roughness, Ra
1. Two sides polished, Ra <10- 30 nm

2. One side polished, the other size is The other side is the cutting surface, or grow

3.Both sides are unpolished

Applications and Advantages of Optical-Grade CVD Single-Crystal Diamond

Optical-grade CVD single-crystal diamond is a material of exceptional purity (typically Type IIa), engineered to combine the superior mechanical and thermal properties of diamond with outstanding optical transmission across a vast spectral range.

Primary Application Areas

1. Extreme-Environment Optical Windows & Domes

Application: Output windows for high-power laser systems, infrared domes for hypersonic vehicles, and sensor windows operating in harsh environments (corrosion, sand, rain erosion).

Principle: Acts as a protective barrier, transmitting specific wavelengths of light while withstanding extreme mechanical, thermal, and chemical shock.

2. High-Power Laser Optics

Application: Lenses, windows, and mirror substrates for CO₂ lasers (10.6 μm); transmission and reflection components for free-electron lasers, mid-infrared optical parametric oscillators, and other high-energy laser systems.

Principle: Possesses an extremely low absorption coefficient in the infrared, enabling it to withstand very high laser fluence without thermal lensing or damage.

3. Synchrotron & X-ray Optic

Application: Monochromators for synchrotron beamlines, high-energy X-ray monochromator crystals, X-ray windows.

Principle: Low atomic number results in low X-ray absorption, while high thermal conductivity effectively dissipates heat generated by X-rays, preventing thermal deformation.

4. Terahertz (THz) Optics

Application: Lenses, windows, polarizers, and substrates for THz wave generation and detection systems.

Principle: Exhibits very low absorption and dispersion across the THz band (0.1-10 THz), making it an ideal broadband THz optical material.

5. Raman Spectroscopy

Application: Sample cell windows, enhancement substrates for high-intensity Raman spectrometers.

Principle: Its own strong, sharp Raman signal (1332 cm⁻¹) serves as an excellent internal standard and typically does not interfere with most sample signals.

6. Quantum Optics & Sensing

Application: Protective windows and carriers for magnetometers, thermometers, and biosensors based on quantum defects like the Nitrogen-Vacancy (NV) center.

Principle: Provides a stable optical interface for internal color centers, allowing efficient excitation and collection of fluorescence signals.

7. Infrared Thermal Imaging Systems

Application: Lenses for long-wave infrared (LWIR, 8-14 μm) systems, protective windows for high-speed thermal imaging cameras.

Principle: High transmission in the LWIR band and the ability to withstand rapid temperature changes without degrading image quality.



Core Advantages

1. Unparalleled Broadband Optical Transmission

Advantage: Maintains high transmission from the deep ultraviolet (~225 nm) to the far infrared and beyond (into the millimeter-wave region). Bulk absorption coefficients can be as low as 0.1 cm⁻¹ @ 10.6 μm.

Comparison: Traditional infrared materials (e.g., ZnSe, Ge, Si) have significant bandgap limitations, and most are not transparent in the visible spectrum.

2. Exceptional Laser Damage Threshold (LDT)

Advantage: Possesses the highest known LDT of any material. In the infrared, its damage threshold can be 1-2 orders of magnitude higher than other materials.

Reason: Extreme thermal conductivity (>2000 W/m·K) instantaneously dissipates locally absorbed energy, preventing thermal runaway. Its wide bandgap (5.47 eV) also inhibits multi-photon ionization.

3. Extreme Thermo-Mechanical Stability

Advantage: The combination of the highest thermal conductivity and a low coefficient of thermal expansion (~1 x 10⁻⁶ /K) makes it highly resistant to deformation or fracture under severe thermal shock.

Value: Critical for optics in lasers with fluctuating power and for domes on high-speed vehicles.

4. Superior Mechanical Strength and Hardness

Advantage: As the hardest known material, it offers exceptional wear and scratch resistance, eliminating the need for fragile protective coatings required on softer IR materials like ZnS.

Result: Dramatically extends the service life of optics in abrasive environments (e.g., sand, rain).

5. Excellent Chemical Inertness

Advantage: Resistant to almost all acids, alkalis, solvents, and high-temperature metal vapors.

Implication: Can operate reliably for extended periods in corrosive atmospheres or plasma environments.

6. Low and Stable Refractive Index

Advantage: Has a moderate refractive index (~2.38 @ 10.6 μm) with minimal temperature variation (dn/dT ~10⁻⁵ /K), making it an excellent lens material for the infrared.

Value: Ensures imaging stability and beam collimation over a wide temperature range.
