Prism Optical Diamond
INFI

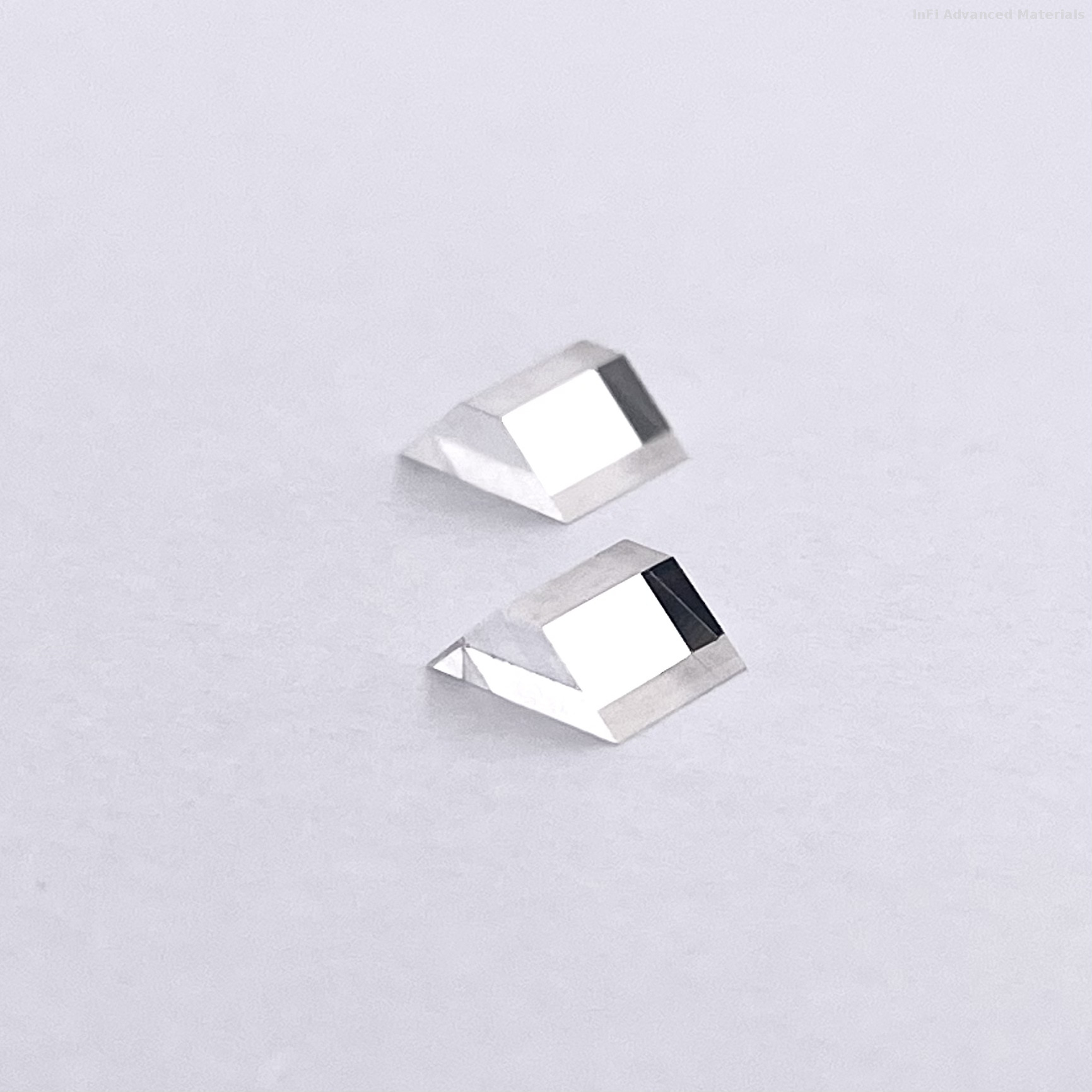

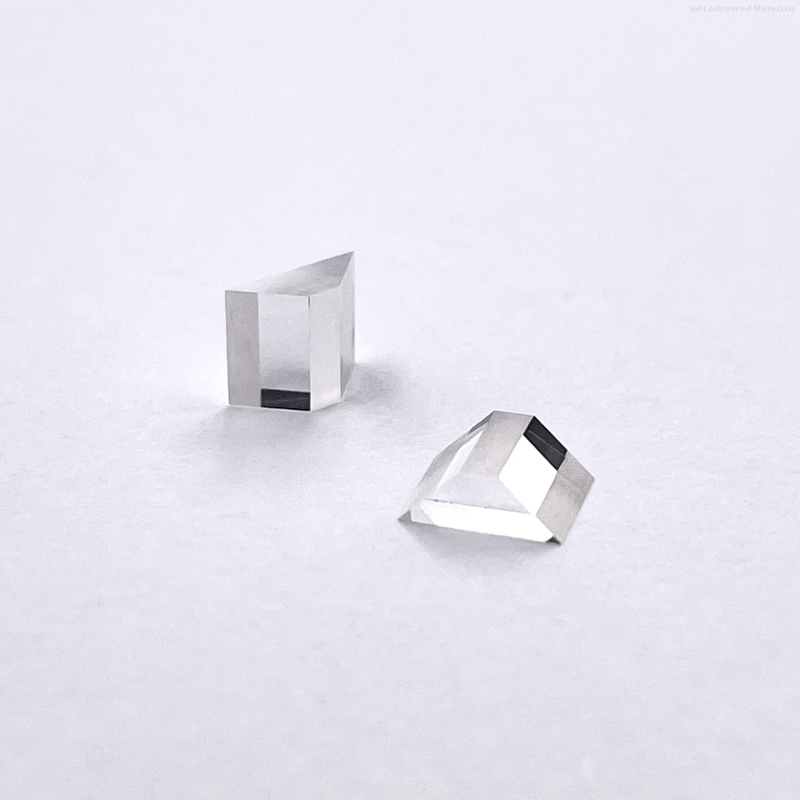

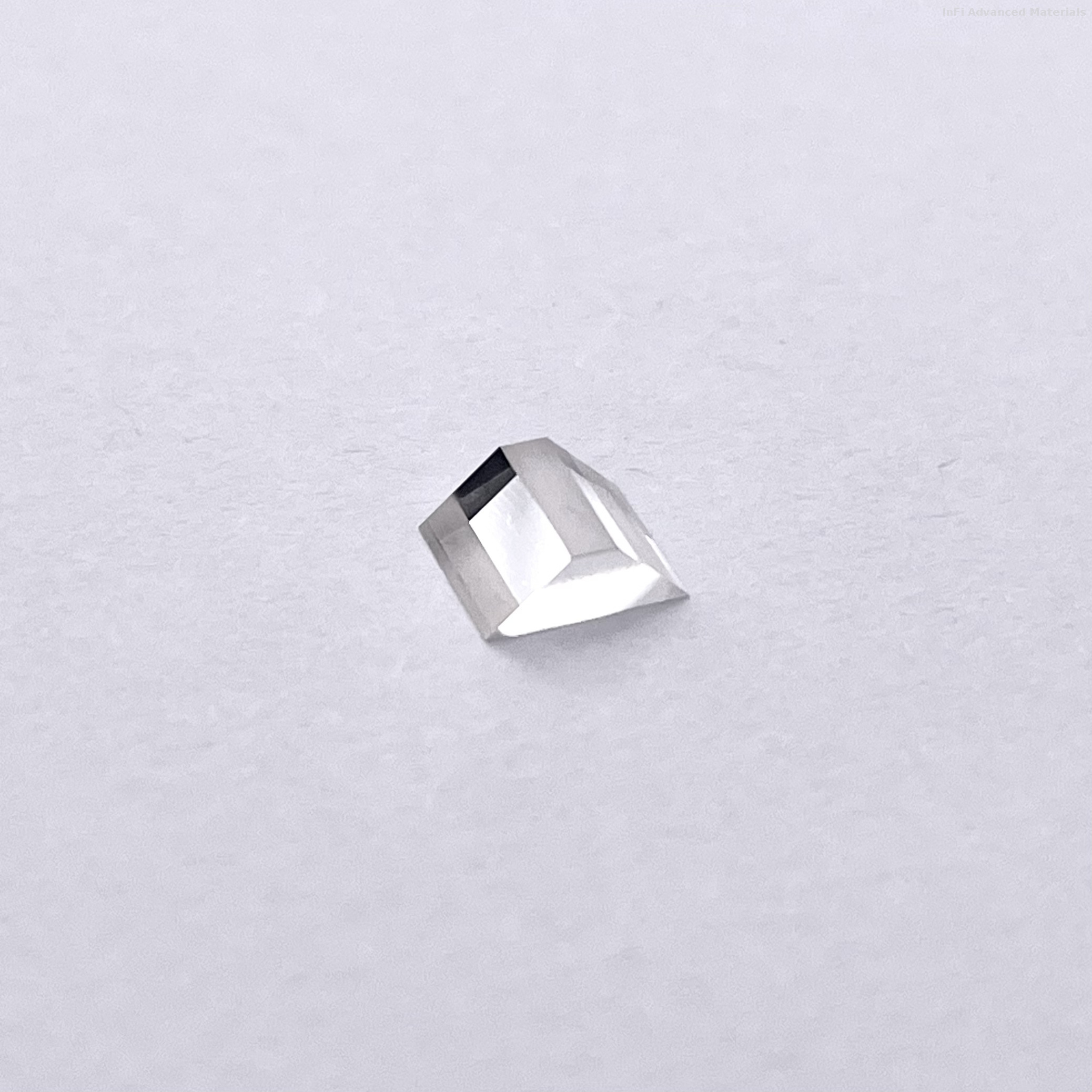

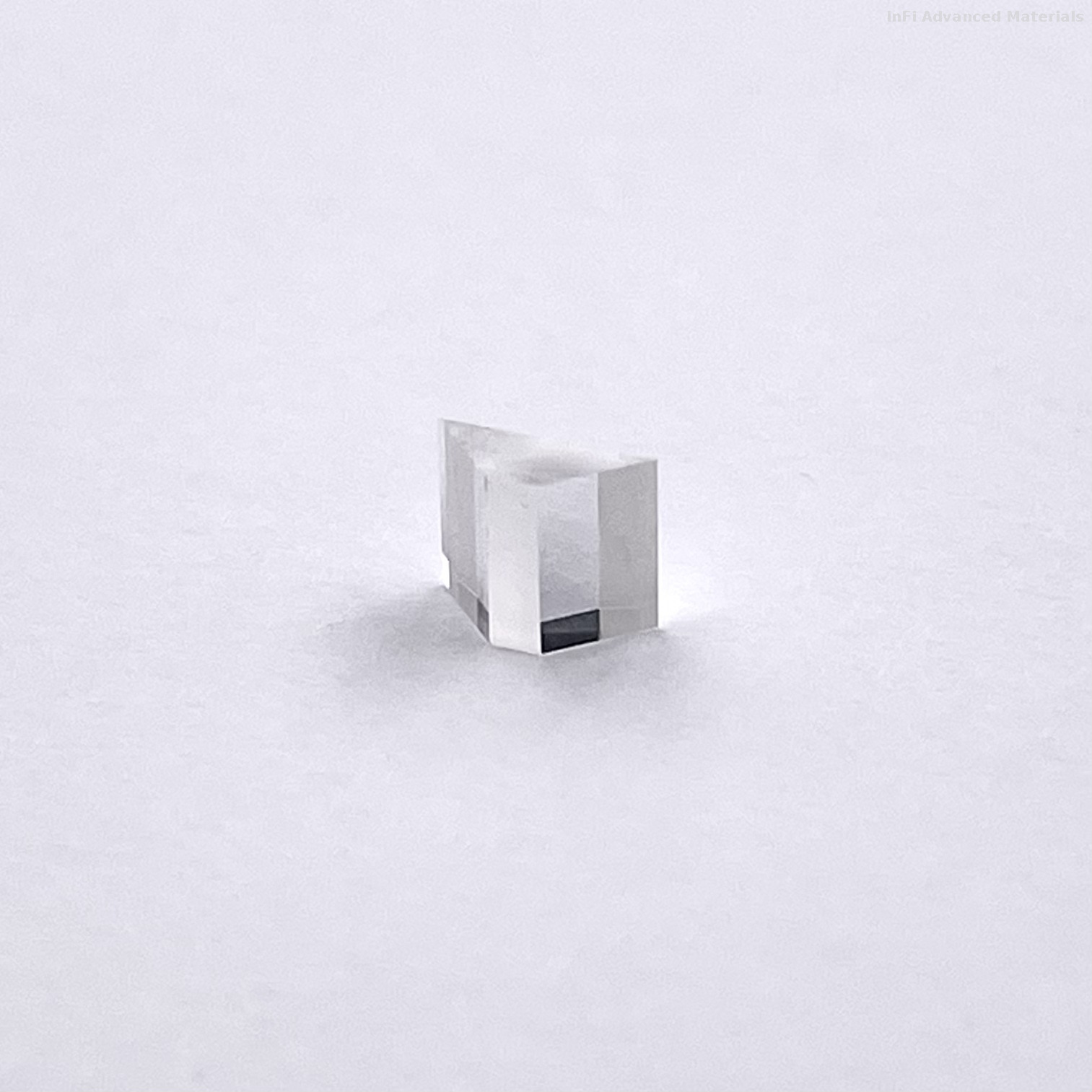

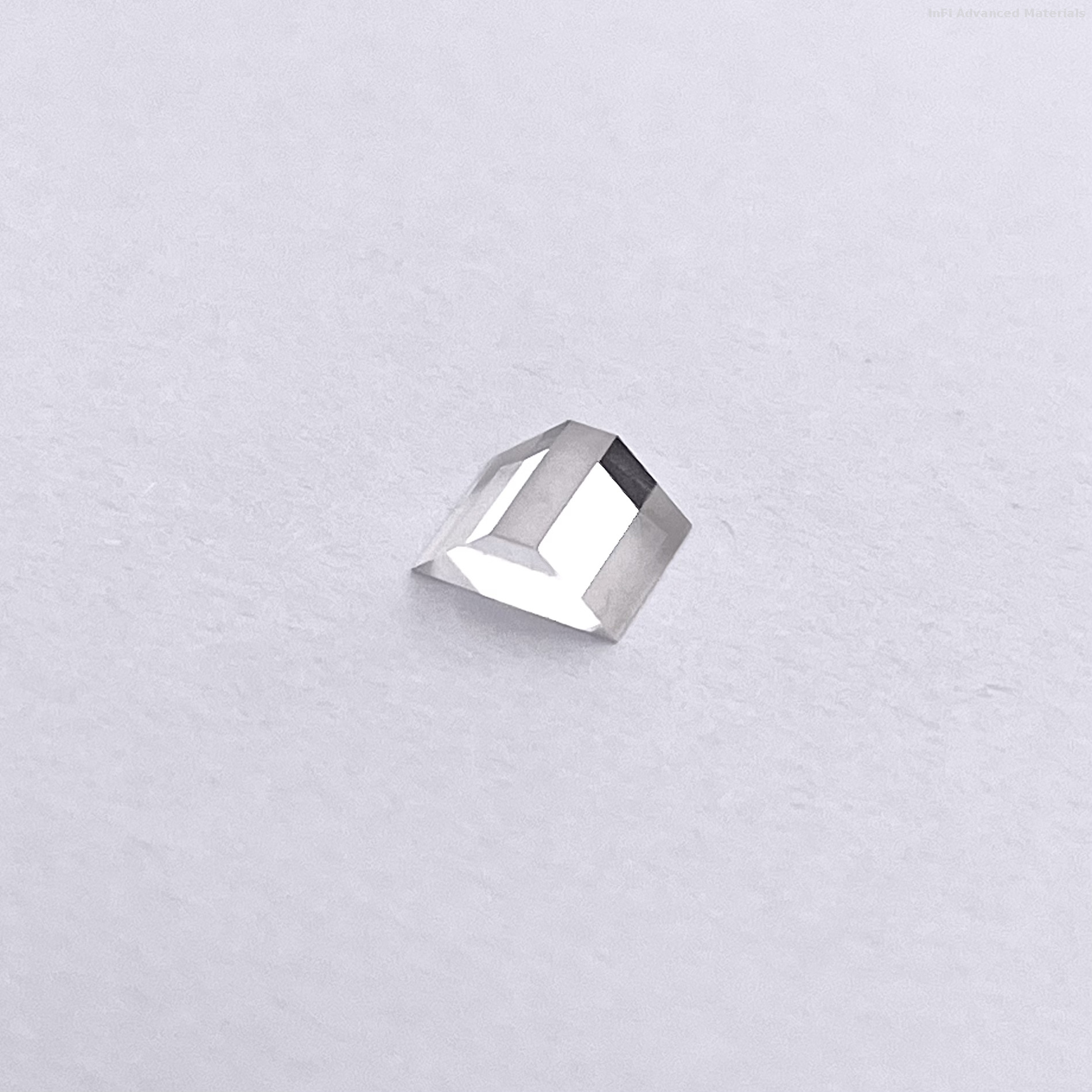

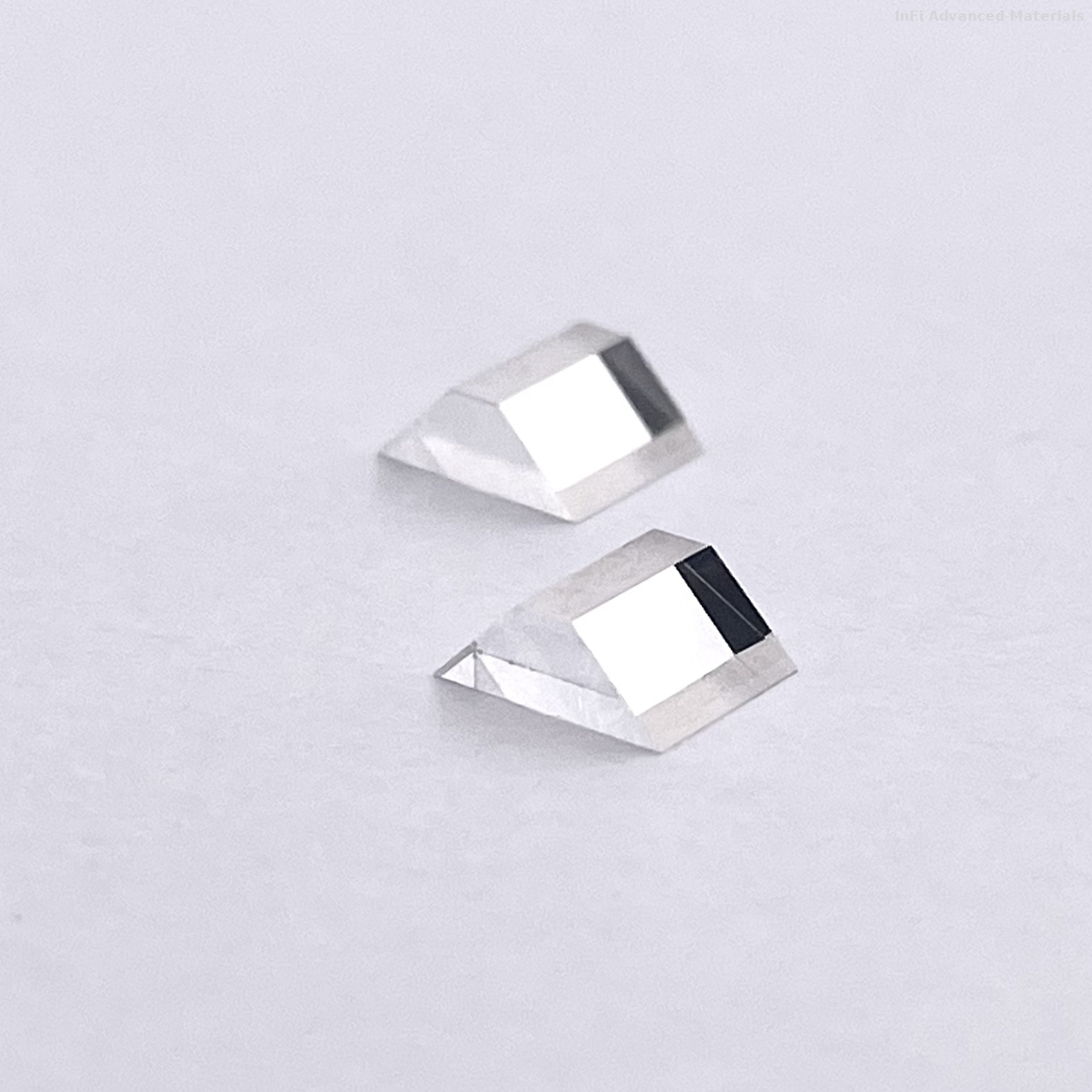

CVD Single Crystal Diamond Optics Prism | Broadband Transmission & Extreme Durability
Exhibiting exceptional optical and physical characteristics, optical-grade CVD single crystal diamond delivers superior light transmission, premium crystalline structure, dimensional stability, wear resistance, and high-temperature tolerance. These properties meet rigorous requirements for sophisticated optical systems, enhancing reliability and performance across optical applications.
Key Advantages
• Size Reduction: 50% smaller versus conventional optical components
• Wide Temperature Range: Operational from -200°C to 850°C
• Enhanced Signal Quality: 40 dB improved SNR over sapphire options
Application Fields
Laser Systems: Output windows, resonators, mirrors
Sensing & Imaging: Photodetectors, spectrometers, telescopes, cameras
Precision Instruments: Beam splitters, gratings, interferometer mirrors
Medical Tech: Laser devices, optical microscopes, endoscopes
Communication: Demodulators, modulators, fiber optic couplers
Industrial Use: Raman spectrometers, laser etching equipment
Astronomy: Observation instruments
Core Material Traits
With minimal IR scatter, CVD diamond enables broadband wavelength transmission. Its chemical inertness and extreme hardness serve as ideal solutions for large-area, high-power applications demanding hazard resistance and strength. Such capabilities allow lightweight, compact geometries. Diamond shaping advancements resolve advanced optical challenges.
| Specification | |
| Face orientation | {100} |
| Surface finish | Polished,Ra<2nm |
| Edges | Laser Cut |
| Laser Kerf | <3° |
| Density | 3.52g/cm³ |
| Raman FWHM | ~2.1cm-1 |
| Nitrogen concentation | <0.5ppm |
| Thermal conductivity | 1900~2200W/(m*K) @300 K |
| Transmission | >70% @1064nm |
| Refractiveindex | 2.379 @10.6um |
