CVD
INFI
| Brand: | Infi |
| Name: | Mono CVD Diamond |
| Applicable Machine: | 1) Mechanical Tools. |
| 2) CVD seeds. | |
| 3) Heat conduction. | |
| 4) Other special applications | |
| Advantages： | |
| Hardness Moh's 10, similar to natural diamond | |
| competitive price | |
| Color: | Light brown or colorless |
| Orientation: | 4pt/100 |
| Laser Kerf | < 3° |
| Our Advantages: | Fast delivery time for non-standard customized sizes, with the fastest delivery available on the same order day |
| Roughness, Ra | Two sides polished, Ra < 30 nm |
| Thickness Tolerance | +/- 0.05 mm |
| Available size | 1mm - 15mm |
| Available thickness | 0.1- 5mm |
| Micro-hardness | 80-150Gpa |
| Young modulus | 1150-1130Gpa |
| Boron Concentration [B]: | <0.05 ppm |
| Main Specifications: | 7x7x0.3mm, 8x8x.03mm, 9x9x0.3mm, 7x7x0.5mm, 8x8x0.5mm, 12x12x0.6mm, 10x10x0.5mm, 13x13x0.6mm |
How to choose the orientation?
Generally speaking, if the diamond cutter is required to obtain the highest strength, the (100) crystal plane should be selected as the front and flank surfaces of the cutter,
if the diamond tool is required to resist mechanical wear, the (110) crystal plane should be selected as the front and rear of the cutter.
If the diamond tool is required to resist chemical wear, the (110) crystal plane should be used as the rake surface of the tool,
the (100) crystal plane as the flank surface, or the (100) crystal plane should be used for both the front and the flank surfaces.

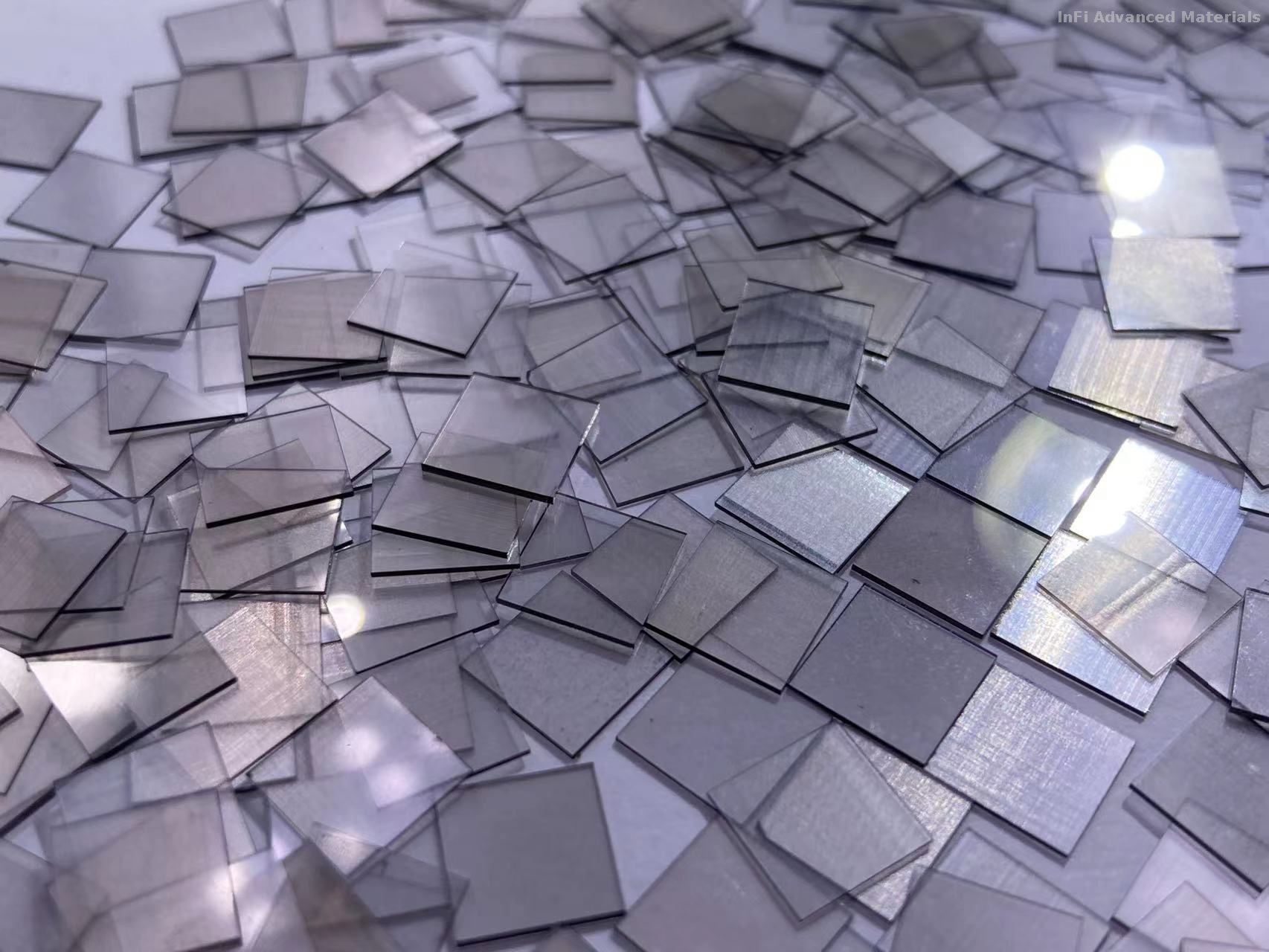

Detail photo of our Low quality CVD plates:
Common CVD size, for reference only
| 7x7x0.3mm | 8x8x0.3mm |
| 9x9x0.3mm | 10x10x0.4mm |
| 12x12x0.4mm | 13x13x0.8mm |
| 9x9x1mm | 10x10x2mm |
| 12x12x1mm | 13x13x1mm |
| 9x9x2mm | 8x8x2mm |
