| Quantity: | |
|---|---|
INFI
Size Available:
| Crystal growth process: | Mono crystal CVD diamond |
| Color: | Normal grade - Near colorless, Mechanic grade - Brown |
| Advantage: | 1) Regular shape, uniform size. The size can be strictly controlled according to customer needs. |
| 2) High repurchase rate and high cost performance, well received by customers. | |
| 3) No visible growth lines,under 100x microscope, no black spots, no impurities, no crack. | |
| 4) The stress is good, the number of times of reuse is high, and it is not easy to crac | |
| Size | 7*7 8*8 9*9 10*10 11*11 12*12 13*13 14*14 Thickness: 0.05-3mm |
| Orientation: | 4pt/100 |
| Shape: | Square,Triangles, rectangles, swords |
| Lateral Dimensions Measured | to smaller side |
| Edges | Laser Cut |
| Laser Kerf | < 3° |
| Lateral Tolerance: | +0.1/-0 mm |
| Roughness, Ra | 1. Two sides polished, Ra <10- 30 nm |
| 2. One side polished, the other size is The other side is the cutting surface, or grow | |
| 3.Both sides are unpolished |
Electronic-grade Chemical Vapor Deposition (CVD) diamond is a high-purity synthetic diamond produced through a process called chemical vapor deposition. It is characterized by its exceptional thermal conductivity, electrical insulation, and mechanical strength. Unlike natural diamonds, electronic-grade CVD diamonds are engineered to have minimal impurities and defects, making them ideal for advanced technological applications.
1.Electronics: CVD diamonds are used in high-power and high-frequency electronic devices due to their excellent thermal management properties. They help dissipate heat efficiently in semiconductors, lasers, and transistors.
2. Quantum Computing: The unique properties of CVD diamonds, such as nitrogen-vacancy (NV) centers, make them suitable for quantum sensors and qubits in quantum computing.
3. Optics: CVD diamonds are used in high-performance optical windows and lenses, especially in harsh environments, due to their transparency and durability.
4. Industrial Tools:They are employed in cutting, grinding, and drilling tools, offering superior wear resistance and longevity.
5. Medical Devices: CVD diamonds are used in surgical tools and radiation detectors, benefiting from their biocompatibility and precision.
In summary, electronic-grade CVD diamond is a versatile material with groundbreaking applications in electronics, quantum technology, optics, and industrial and medical fields.
Size: 1 X 1 mm to 20 X 20 mm,
Thickness: 0.3 mm to 3 mm
Grade and application :
Electronic (for Quantum optics, radiation detector, etc.)
Optical(for precision tools, window, anvil, sensor, etc.)
Thermal/Mechanical (for conventional tools)
Surface:
As Grown or Laser Cut
Polished
Lapped
Edges:
Laser cut or polished

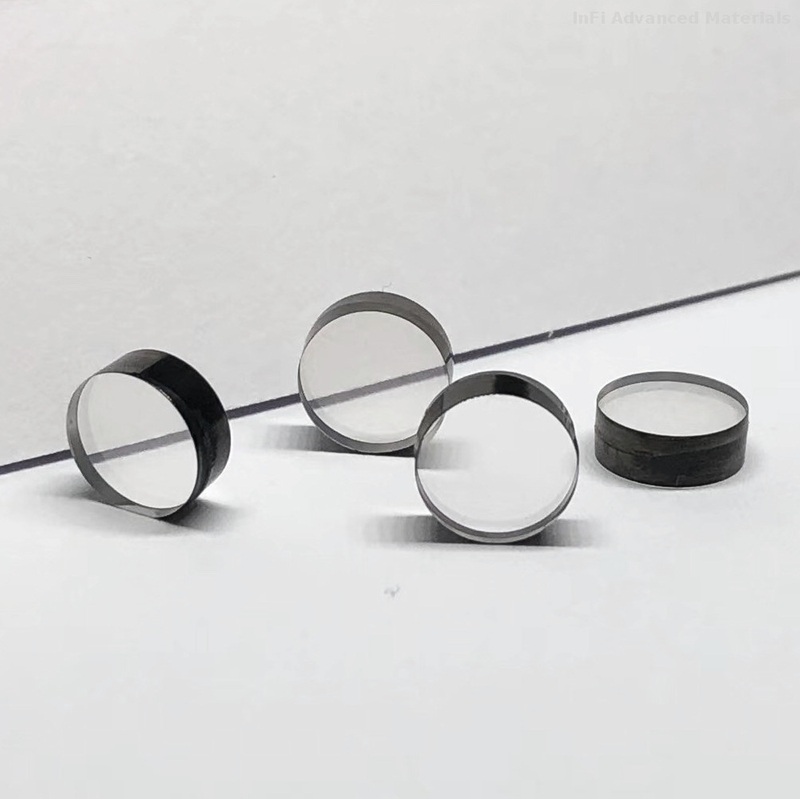

Picture details:
