High-Power LED Diamond-Cu Cooling Plate AI-Chip Specific Diamond Heat Sink CVD Diamond-Copper Film

Single crystal diamond CVD (chemical vapor deposition) refers to a type of diamond that is produced using the CVD process. In this process, a mixture of carbon-containing gases is decomposed under controlled conditions, resulting in the formation of a single crystal diamond layer on a substrate.

By coating a metal film on the surface of diamond, diamond is endowed with conductivity, affinity for metals, and wettability, which can improve the physical and chemical properties of the material surface and enhance its compressive strength. We can produce Coated Diamond with coatings of gold, copper, nickel, and other materials.

Size:
Orientation:
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button
  • JSD

  • INFI

 Introduction and Application of CVD Polycrystalline Diamond-Copper Composite Sheets:

CVD polycrystalline diamond-copper composite sheets are high-performance thermal management materials. They are produced by coating a layer of copper onto polycrystalline diamond using Chemical Vapor Deposition (CVD) technology. This combines the advantages of both materials: the ultra-high thermal conductivity of diamond rapidly extracts heat from the chip, while the good workability and solderability of copper effectively transfer that heat to an external heatsink.


This material can be understood as a "synergistic" composite. Its core properties are as follows:

Component Key Properties Function in the Composite Sheet
CVD Polycrystalline Diamond Layer Thermal Conductivity: 1200-2200 W/(m·K); CTE: approx. 1.0-1.2 ×10⁻⁶/K Primary Heat Spreading: Acts as a "superhighway" for heat, rapidly spreading localized hot spots from the chip laterally.
Copper Layer Thermal Conductivity: approx. 400 W/(m·K); CTE: approx. 17 ×10⁻⁶/K Functional Interface: Provides a solderable surface for assembly onto circuit boards; also assists in transferring heat to the external heatsink.
Overall Composite Effective Thermal Conductivity: approx. 600-1200 W/(m·K); Tunable CTE: 3-8 ×10⁻⁶/K Balanced Performance: Overall thermal conductivity far exceeds that of copper (2-3 times higher), while the CTE better matches chips (e.g., GaN, SiC), reducing thermal stress and improving long-term reliability.



The application of CVD diamond-copper sheets focuses on areas requiring extremely high heat dissipation or where space for cooling is minimal.

Application Area Specific Use & Value
AI & High-Performance Computing Serves as a thermal spreader directly beneath AI chips (GPUs) to quickly absorb and diffuse hotspot heat, preventing throttling due to overheating.
5G/6G RF & Communications Used for cooling RF power amplifiers in 5G base stations and phased-array radars. Diamond's electrical insulation prevents interference with high-frequency signals.
EVs & Power Electronics Used in EV powertrain control systems (e.g., SiC MOSFET modules) and fast-charging systems to ensure stable operation under 800V high-voltage platforms.
High-Power Lasers Acts as a heat sink for laser diodes, efficiently extracting heat from the chip's active region to ensure stable output and lifespan.
Aerospace & Advanced Tech Utilized for its high-temperature resistance, radiation resistance, and ultra-high thermal conductivity in satellite/spacecraft electronics cooling, and even for cooling qubits in quantum computing.



Size Available:

Crystal growth process:
Mono crystal CVD diamond
Color:
Normal grade - Near colorless, Mechanic grade - Brown

Advantage:
1) Regular shape, uniform size. The size can be strictly controlled according to customer needs.
2) High repurchase rate and high cost performance, well received by customers.
3) No visible growth lines,under 100x microscope, no black spots, no impurities, no crack.
4) The stress is good, the number of times of reuse is high, and it is not easy to crac
Size
7*7  8*8  9*9  10*10 11*11  12*12  13*13  14*14
 Thickness: 0.05-3mm
Orientation:
4pt/100
Shape:
Square,Triangles, rectangles, swords
Lateral Dimensions Measured
to smaller side
Edges
Laser Cut
Laser Kerf
< 3°
Lateral Tolerance:
+0.1/-0 mm
Roughness, Ra
1. Two sides polished, Ra <10- 30 nm

2. One side polished, the other size is The other side is the cutting surface, or grow

3.Both sides are unpolished
Thermal Conductivity
≥600 W/mK
Thermal Expansion Coefficient
4.5-8 ppm/K(adjustable)
Density
5.6 g/cm3
Surface Modification
Chrome, Nickel
Transition Layer
Titanium, Platinum
Contact Layer
Gold, Copper
Crystallographic Orientation
100 110 111
Miscut for Main Face Orientation
±3°
Common Product Size
3mm×5mm×0.5mm
Transverse Tolerance
±0.05mm
Thickness Tolerance
±0.1mm
Edge Cutting
Laser Cutting

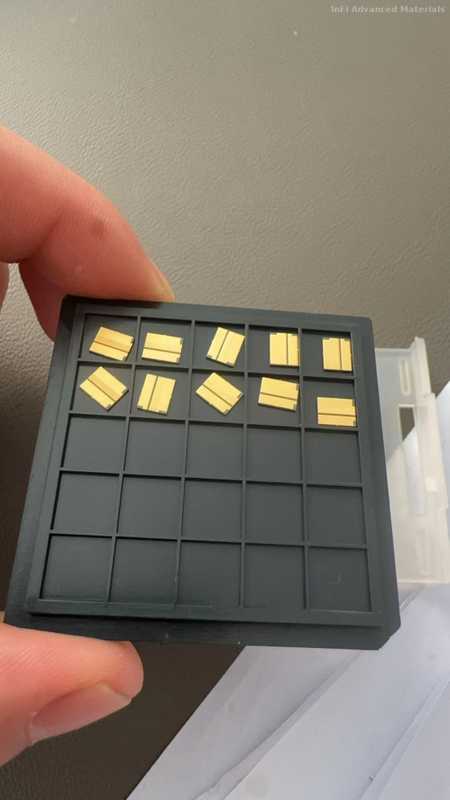

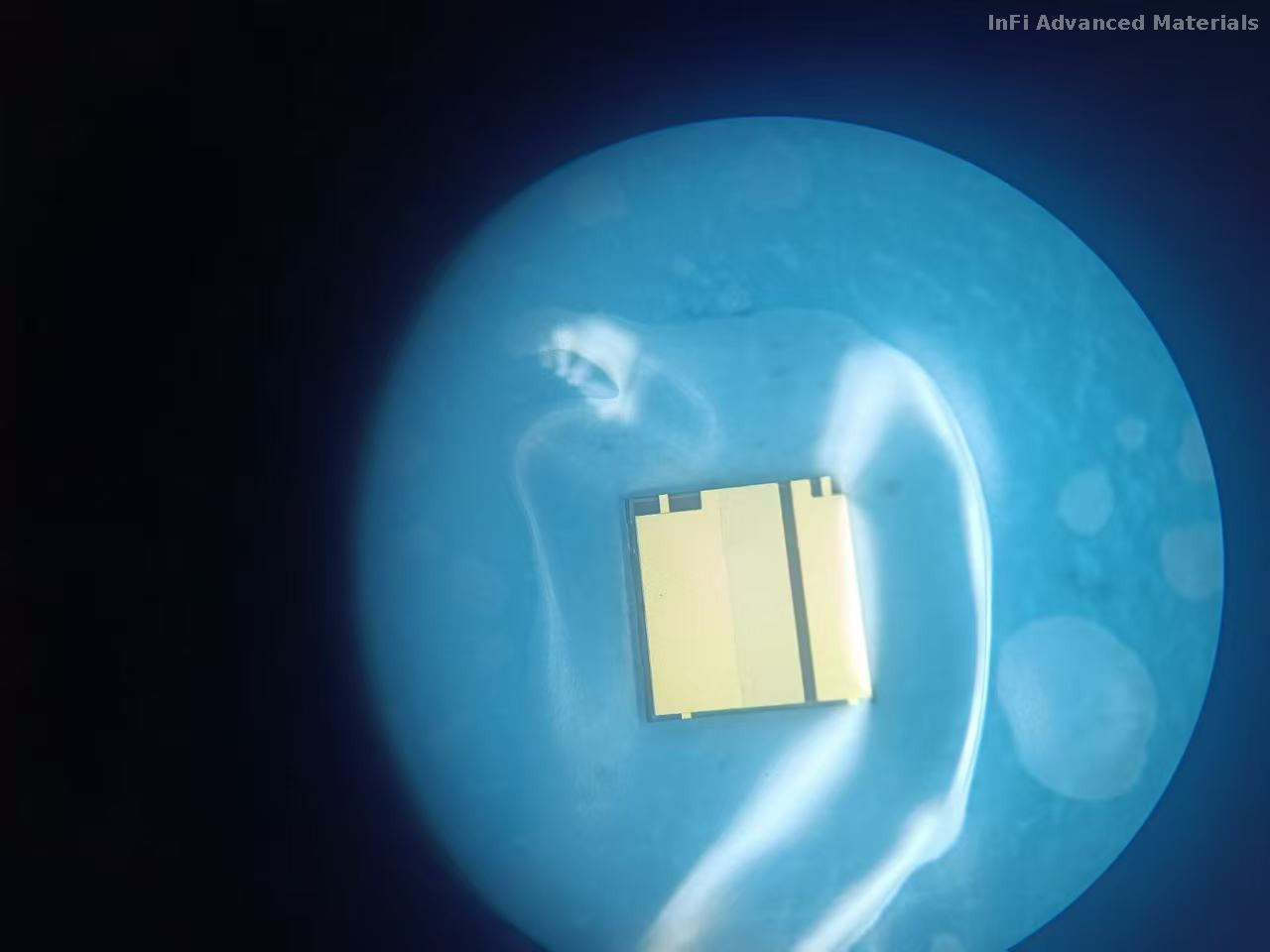

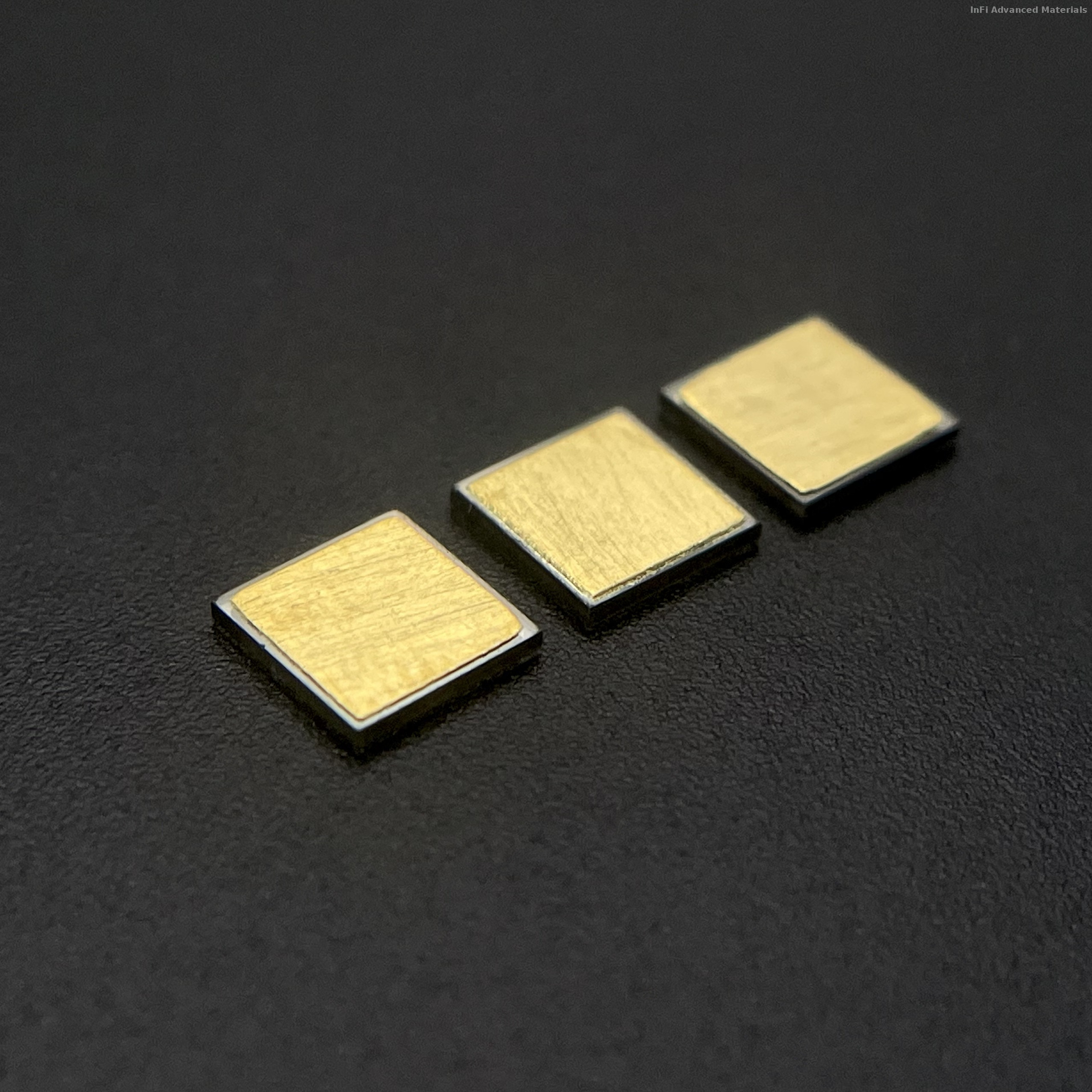

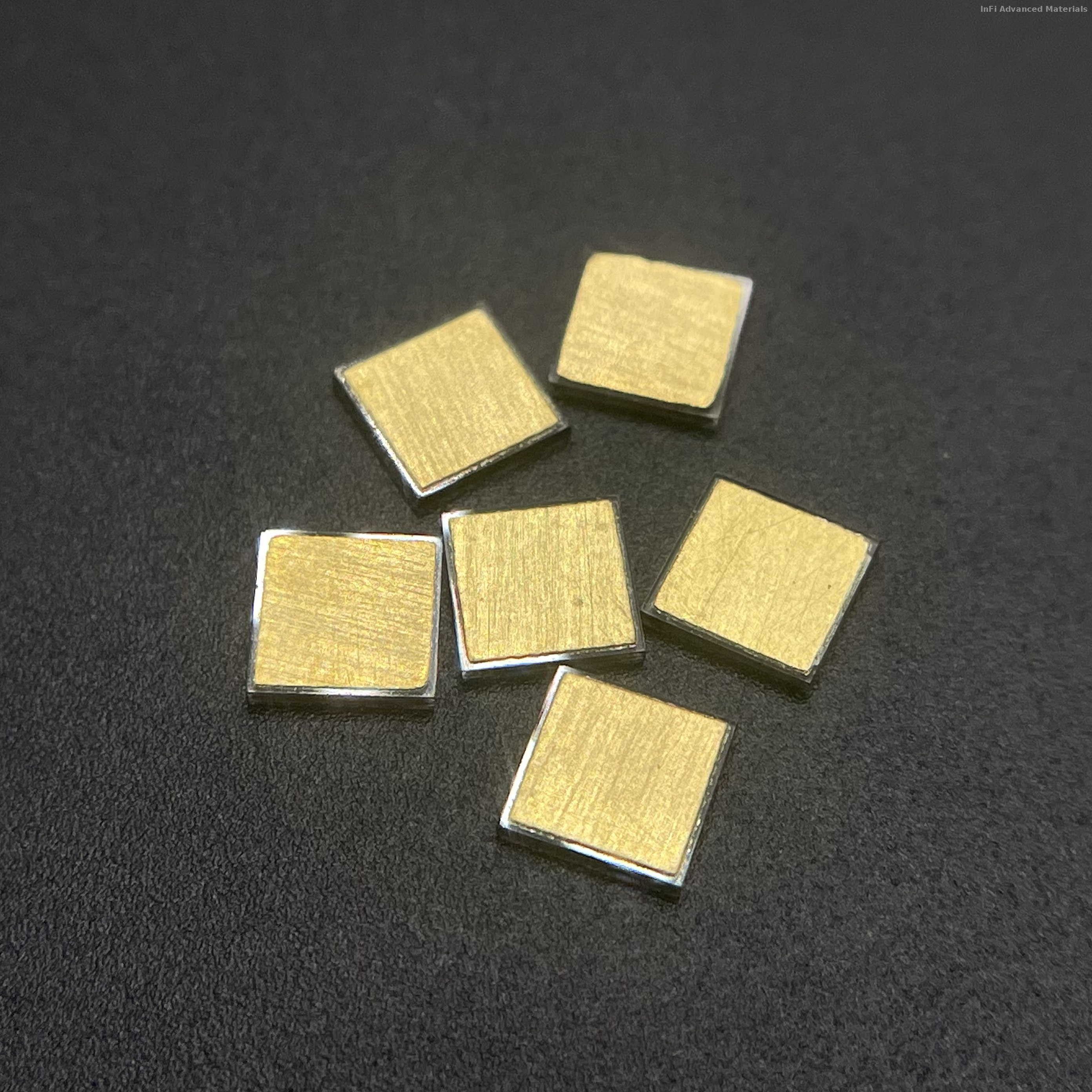

Picture details:
