JSD
INFI
| Model No. | Picture | Feature | Size range | Available thickness | Shape | Orientation |

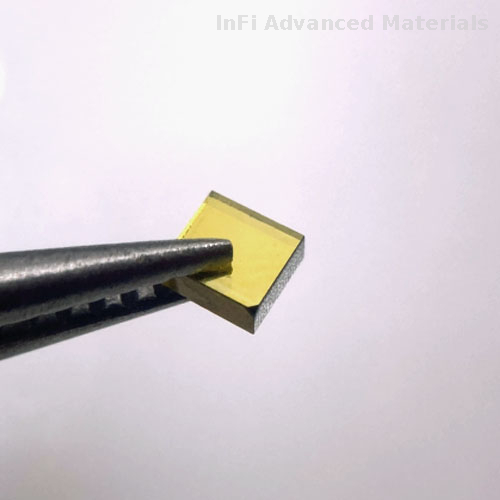

| JSD11 |    | Laser cut to specific dimension and standard rectangles, triangles, circles, trapezoidsand other required shapes according to customer requirements. | 0.3mm~ 5.0mm | 0.3mm ~ 1.7 mm | Rectangle, triangle, circle and others | 4 pt / (100) |
| JSD12 | | Yellow color, At least two 90° angles, The other two corners are two very small missing corners. More regular shape, suitable for ultra-precision machining of diamond with long cutting edge, Under the microscope there are few impurities and no microcracks. | 1mm ~ 4.5mm | 0.3mm ~ 1.7 mm | Near Square | 4 pt / (100) |
| JSD13 |  | Pale yellow color, Irregular shape, Under the microscope there are few impurities and no microcracks. The maximum size can reach 8 mm and the maximum thickness can reach 1.7 mm， | 1mm ~ 8.0 mm | 0.3mm ~ 1.7 mm | Near hexagon | 4 pt / (100) |
| JSD23 |  | Yellow color, Near Square, four very small missing corners. some pieces have slightly visible impurites, The maximum size can reach 8 mm and the maximum thickness can reach 1.7 mm， | 1mm ~ 8.0 mm | 0.3mm ~ 1.7 mm | Near Square | 4 pt / (100) |
| JSD33 |  | Irregular shape, with a few visible impurites or growth grooves. Suitable for low-end diamond tools. | 1mm ~ 8.0 mm | 1.0mm ~1.2mm | Near Square | 4 pt / (100) |
| JSD111 |  | with strong wear resistance, We guarantee that there is a certain implied circle and there are no impurities in the crystal. Used for wire drawing die blanks | 0.8mm-3.5mm | 0.3mm-2.0mm | Near hexagon or near triangle | 3pt /（ 111） |
