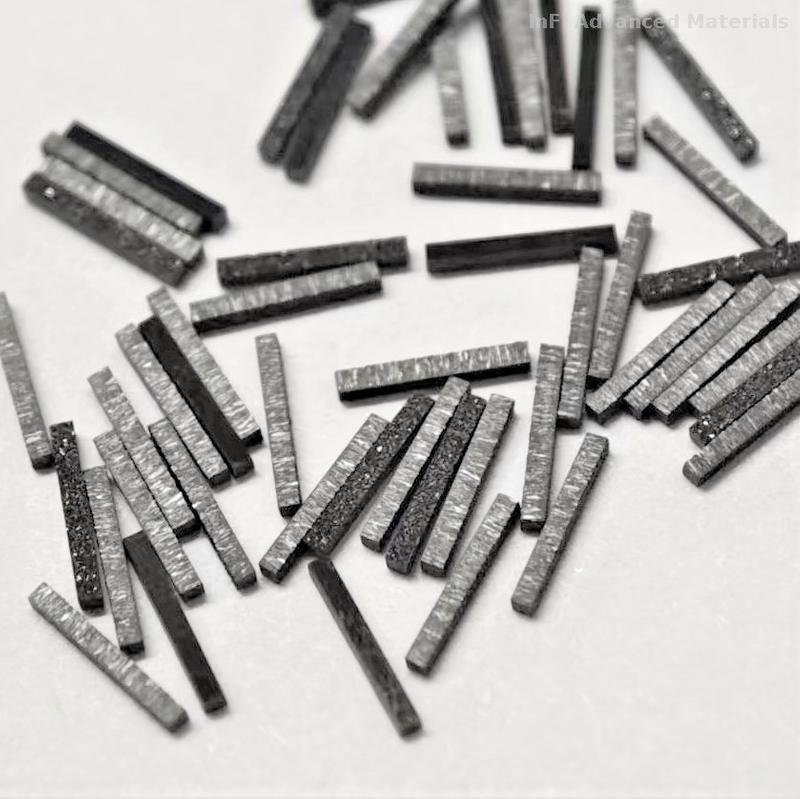

Polycrystalline CVD logs | for Diamond Multi-Point Dressers
Specifications:
Uniform wear, long life and chipping resistance for high volume rough repairs.
These CVD Polycrystalline logs are designed for manufacturing high-performance bar dressers, delivering unmatched stability and longevity in rigorous precision machining and grinding wheel conditioning applications.The diamond logs mainly used for making diamond bar dressers.They are widely usedin industrial processing for grinding wheel dressing and precision manufacturing.It is outstanding in precision grinding,complex profile processing and efficient production,and its core advantageis high stability and long life.This product is the advantageous product of our company,which can be supplied in large quantitiesfor a long time and stably.
Regular size:
3x0.6x0.6 3x0.8x0.8
3x1.0x1.0 3x1.2x1.2
4x0.4x0.4 4x0.6x0.6
4x0.8x0.8 4x1.0x1.0
4x1.2x1.2 4x1.5x1.5
5x0.6x0.6 5x0.8x0.8
5x1.0x1.0 5x1.2x1.2
6x0.6x0.6 6x0.8x0.8
6x1.0x1.0 6x1.2x1.2
and more sizes
Performance Benefits:
1.Precision grinding and complex profile machining capabilities
2.Operational efficiency improvement with reduced downtime
3.Consistent bulk supply through scalable production
Key Properties:
Boasts high hardness, exceptional wear resistance, superior strength, elevated elastic modulus, effective thermal conductivity, minimal friction coefficient, strong adhesion resistance, remarkable chemical stability and corrosion resistance - meeting all precision cutting tool standards.
Applications:
Diamond Multi-point Dressing Pens, Diamond Strip Dressing Pens, Diamond Flat Tip, Pointed Tip Grinding Wheel Dressing Pens, Diamond Pen Plate Dressing Knives, Diamond Dressing Rollers, etc.
Tailored Dimensions:
• Width: Up to 7mm
• Length: Up to 20mm
• Available thicknesses: 0.1mm, 0.2mm, 0.3mm, 0.4mm, 0.5mm, 0.6mm, 0.7mm, 0.8mm, 0.9mm, 1.2mm, 1.5mm, 1.7mm, 2.0mm
| Available size | 2~20mm |
| Available thickness | 0.2mm - 3mm |
| Lateral tolerance | +0.15,-0mm |
| Thickness tolerance | +0.1,-0.05mm |
| Edges | Laser Cut |
| Laser Kerf | <3° |
The logs are also available in other materials(CVD/MCD):
