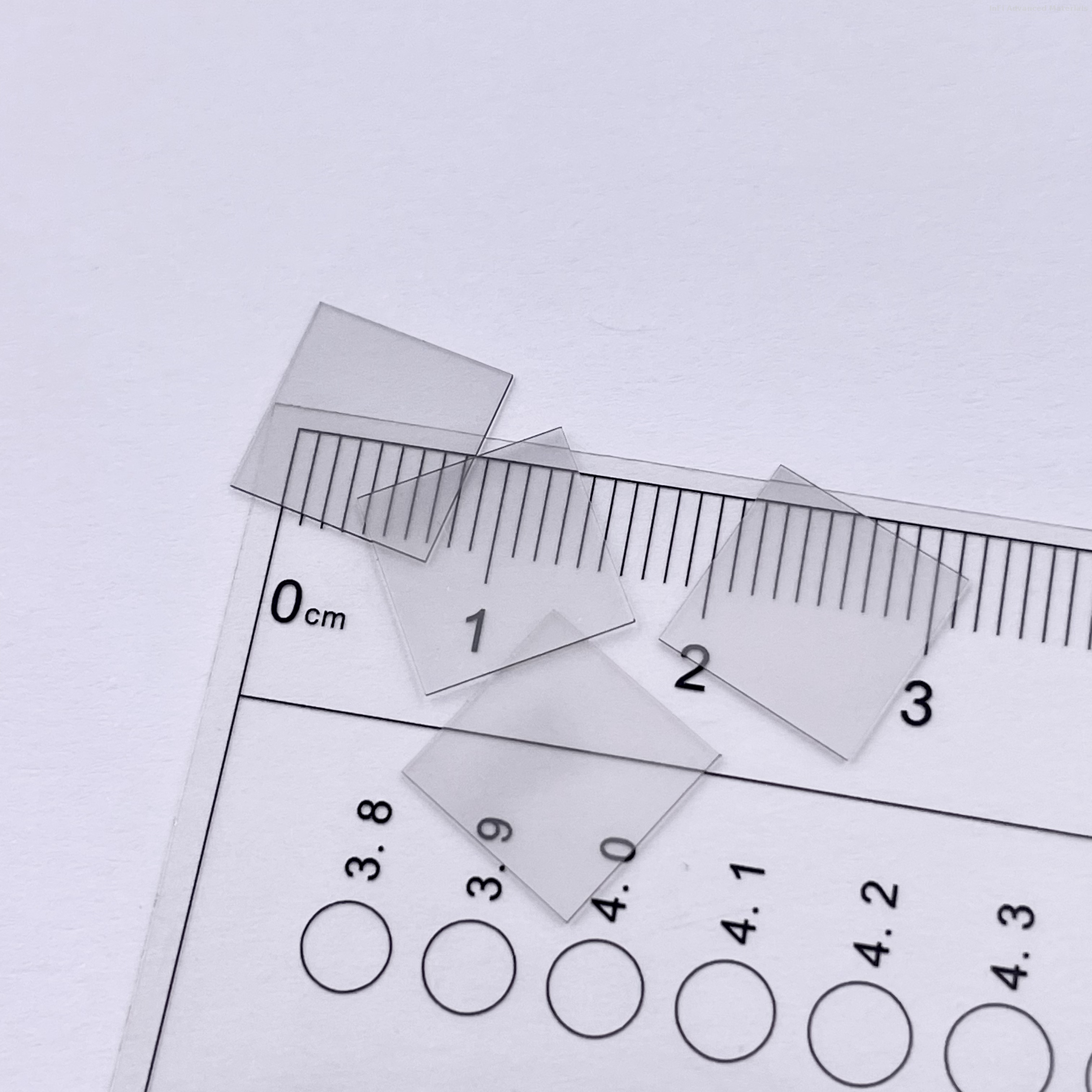

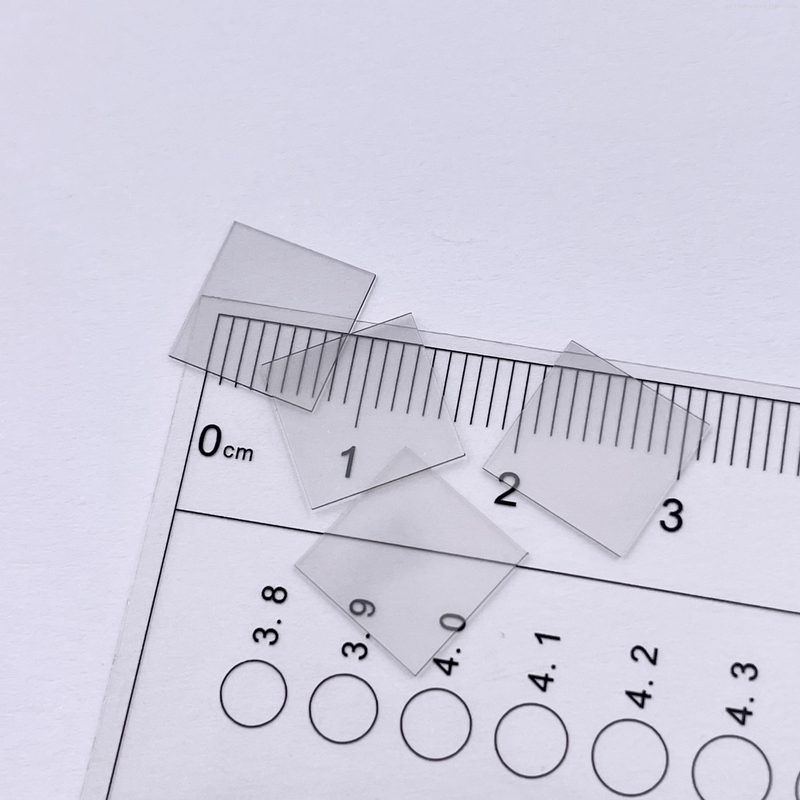

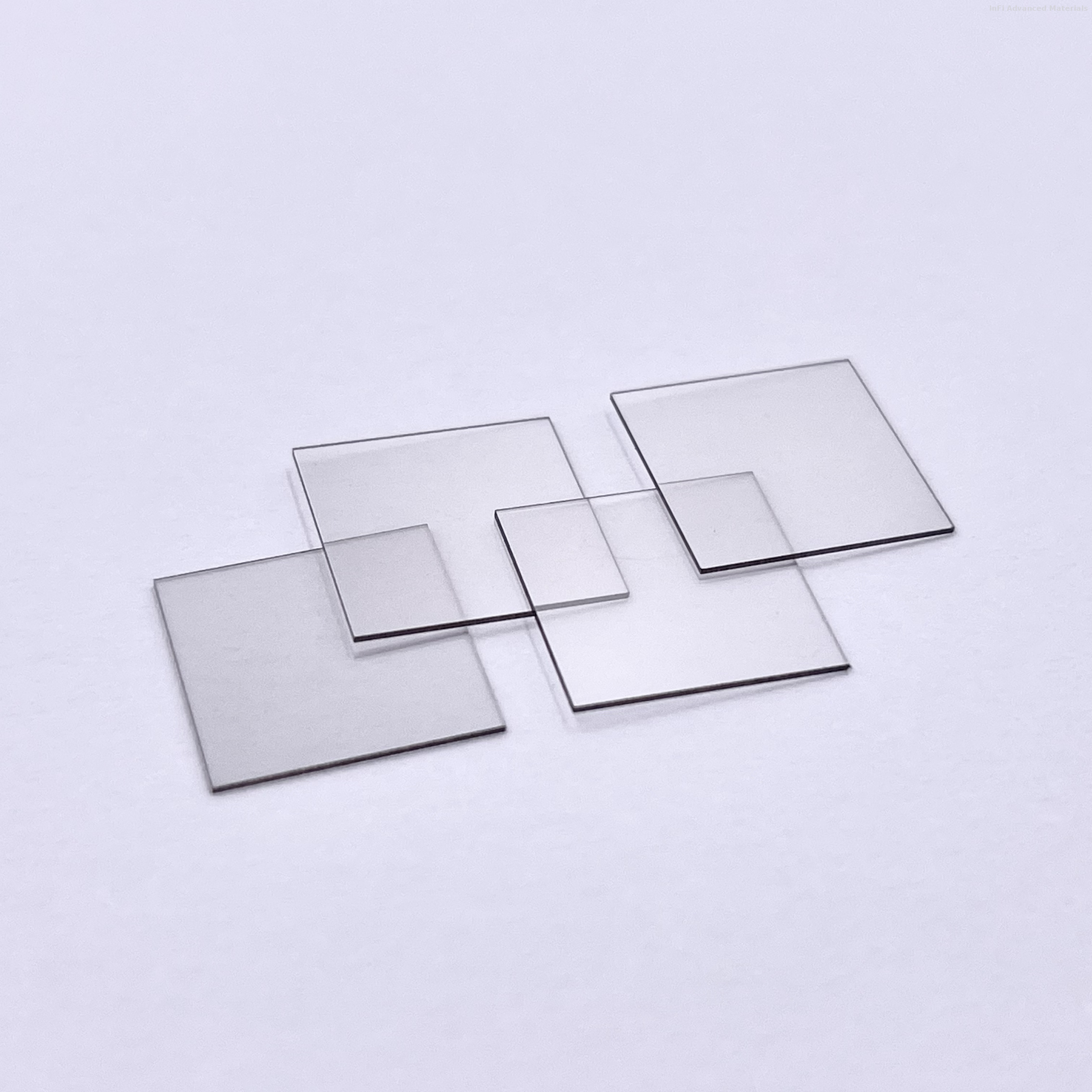

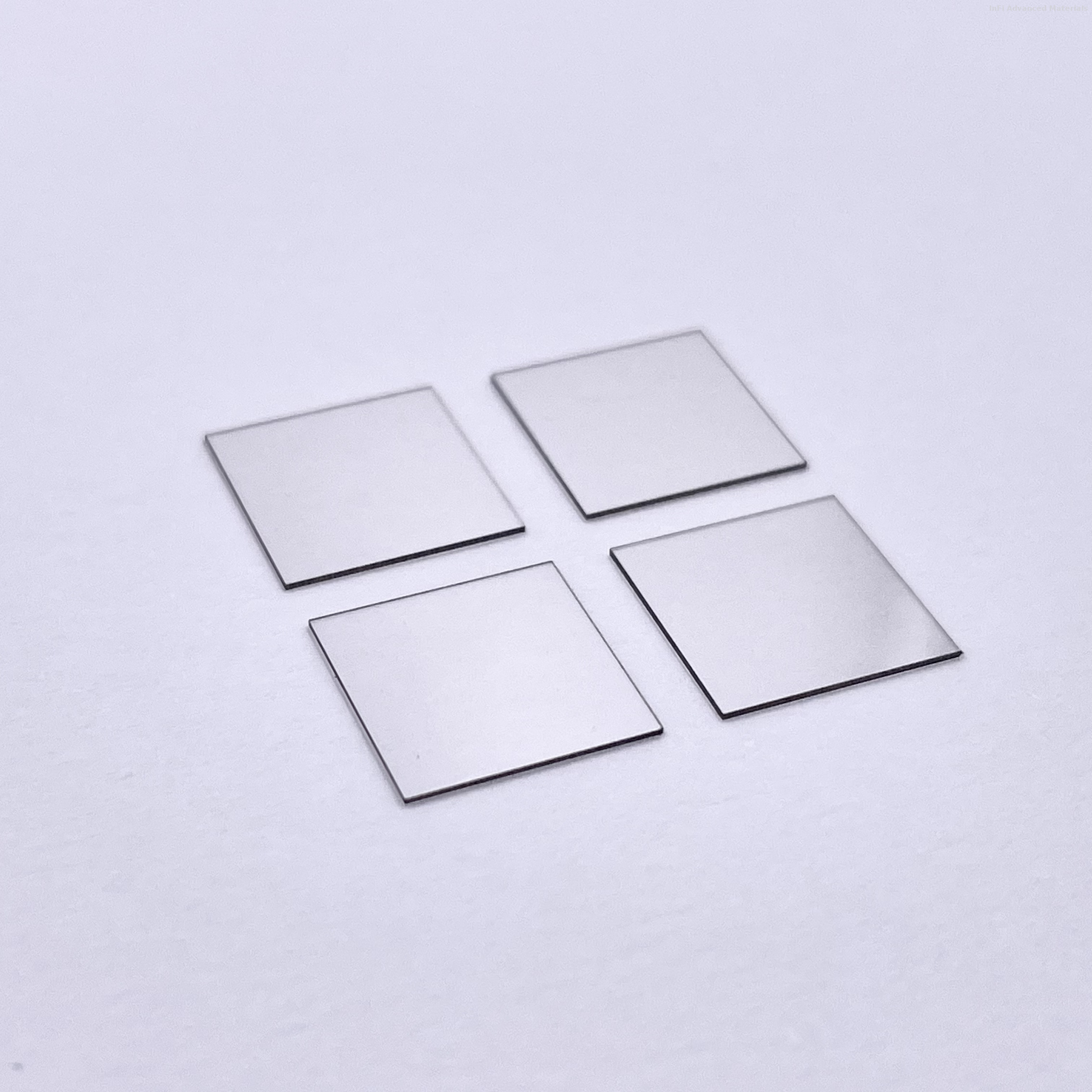

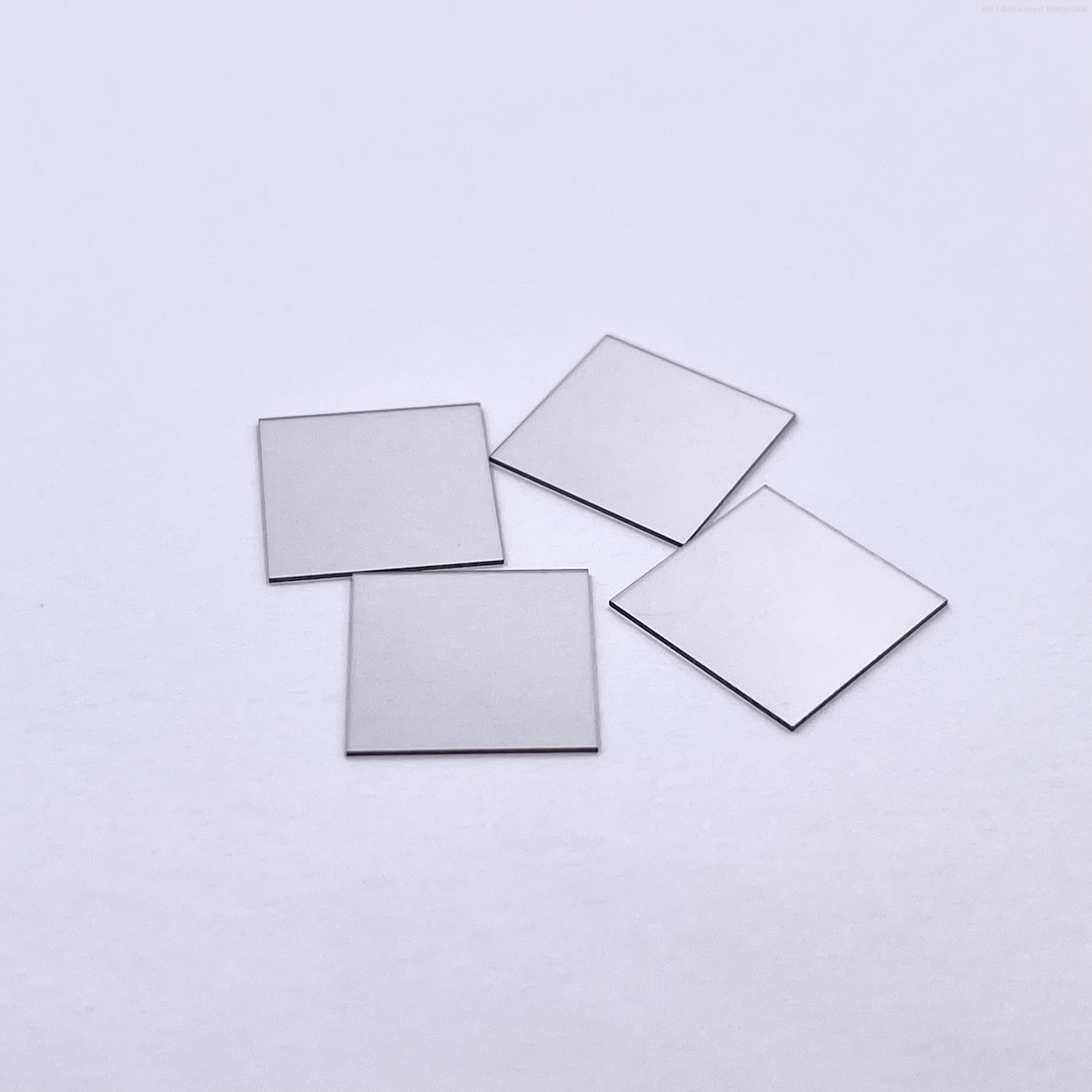

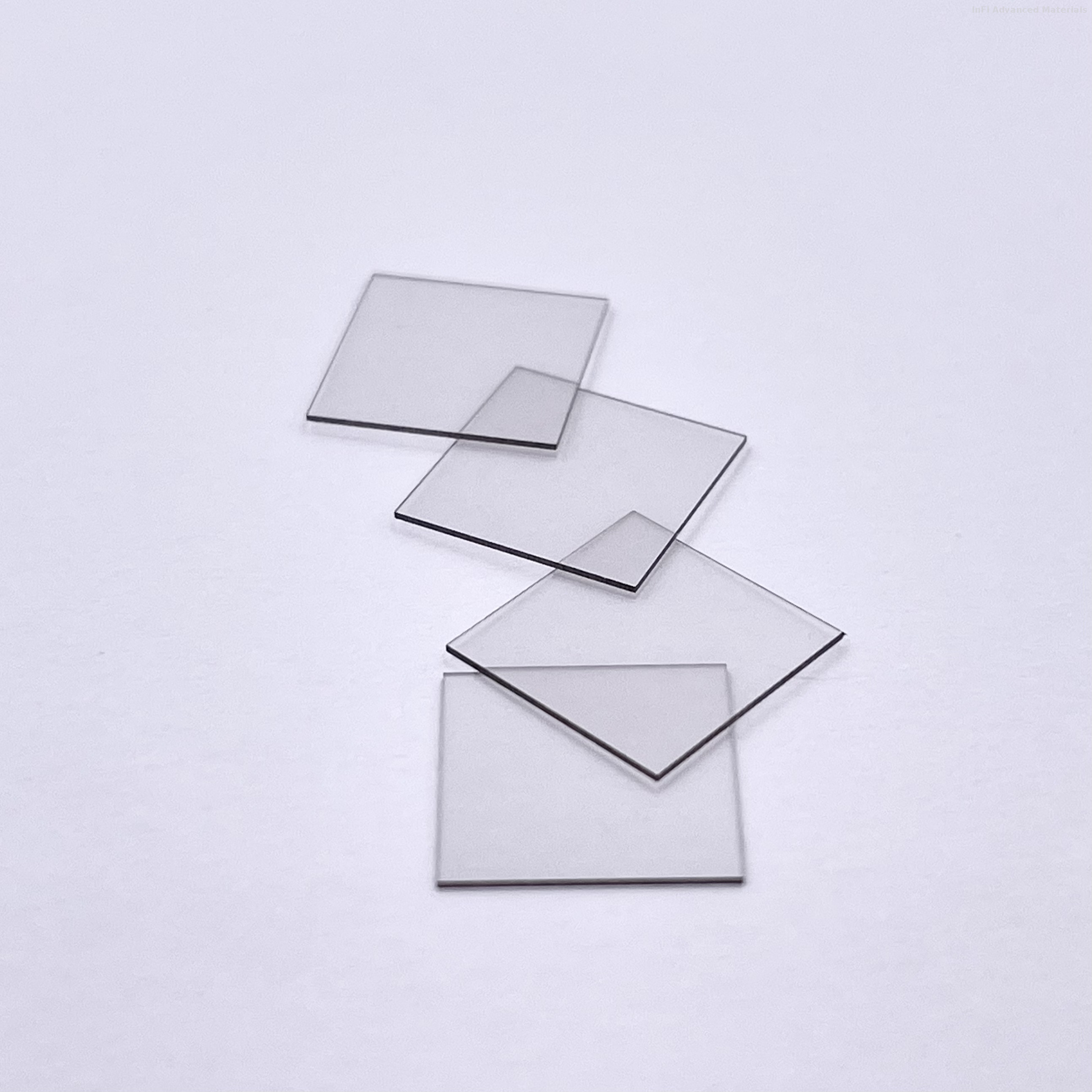

Polycrystalline optical Cvd Diamond Wafer Polycrystalline cvd diamond film for X-ray Optics 10*0.3

Diamond film refers to a diamond film artificially synthesized by low-pressure or atmospheric pressure chemical vapor deposition (CVD) method. There are two main methods for preparing diamond films: thermal chemical vapor deposition (TCVD) and plasma chemical vapor deposition (PCVD).

Size:
Orientation:
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button
  • JSD

  • INFI

Polycrystalline optical Cvd Diamond Wafer Polycrystalline cvd diamond film for X-ray Optics 10*0.3


Polycrystalline Optical CVD Diamond

Polycrystalline chemical vapor deposition (CVD) diamond is a synthetic diamond material produced by depositing carbon atoms from a gas phase onto a substrate under controlled conditions. Unlike single-crystal diamond, it consists of multiple diamond crystallites with varying orientations, resulting in a polycrystalline structure. This material combines the exceptional optical, thermal, and mechanical properties of diamond with the scalability and versatility of CVD technology, making it a valuable solution for demanding optical applications.


Key Properties

  1. Broadband Transparency: CVD diamond exhibits high transmittance across a wide spectral range, from ultraviolet (UV) to far-infrared (IR), including the visible and mid-IR regions.

  2. High Thermal Conductivity: With the highest known thermal conductivity (~2000 W/m·K), it effectively manages heat in high-power optical systems.

  3. Exceptional Hardness and Durability: It is extremely resistant to abrasion, corrosion, and radiation, ensuring longevity in harsh environments.

  4. Low Thermal Expansion: Its low coefficient of thermal expansion minimizes shape distortion under thermal stress.

  5. High Laser Damage Threshold: Ideal for high-power laser optics, such as windows and lenses.


Manufacturing Process
Polycrystalline CVD diamond is typically grown using microwave plasma-assisted CVD (MPCVD) or hot filament CVD (HFCVD). A carbon-rich gas mixture (e.g., methane and hydrogen) is activated to form a plasma, depositing carbon atoms as diamond on a substrate (e.g., silicon or refractory metals). The polycrystalline structure forms due to nucleation on non-diamond substrates, with grain size increasing with thickness. Post-growth processing, including laser cutting, polishing, and annealing, is employed to achieve the desired optical surface quality and dimensions.


Applications

  • High-Power Laser Optics: Windows, lenses, and beam combiners for CO₂, fiber, and excimer lasers.

  • Infrared Optics: Windows and domes for IR imaging and sensing in aerospace and defense.

  • Synchrotron and X-ray Optics: Beamline components and windows due to high radiation hardness.

  • Thermal Management: Heat spreaders and sinks for high-power optical devices.

  • Scientific and Industrial Sensors: Optics for spectroscopy and harsh environment sensing.


Advantages:

  • Superior optical performance across wavelengths.

  • Outstanding durability and thermal properties.

  • Scalable to larger sizes and complex shapes compared to single-crystal diamond.


Limitations:

  • Light scattering at grain boundaries can reduce transmittance, especially in the UV and visible ranges.

  • Surface roughness may require advanced polishing for high-precision optics.

  • Generally higher cost than conventional optical materials like glass or sapphire.





Polycrystalline CVD diamond



polycrystalline CVD (chemical vapour deposition) synthetic diamond products are manufactured by a chemical vapour deposition (CVD) process and are subject to tightly controlled growth conditions during manufacturing and equally stringent quality control procedures.





CVD Diamond for thermal applications:
One of many remarkable properties of diamond is its unsurpassed thermal conductivity. It exceeds that of copper by a factor of five. In contrast to metals, where heat is conducted by electrons, lattice vibrations are responsible for the high thermal conductivity of diamond.

Thermal conductivity can be tailored within the range of 1000-1800 W/mK to enable matching cost/performance to the needs of the application.
Nowadays CVD diamond made by our Laboratory is used as  mounts for high-power integrated circuits and laser diodes.

Specifications
  Tolerance of Thickness: ±25um
 Flatness: <4um/cm
 Thermal conductivity three types : 1300W/mK; 1500W/mK;1800 W/mK (more than 9 times compard to Silicone 139 W/mK)
 Density: 3.5g/cm3
 Young's modulus: 1000-1100Gpa
 Growth side surface finish: <100 nm Ra
 Nucleation side surface finish: <30 nm Ra

  Standard Sizes

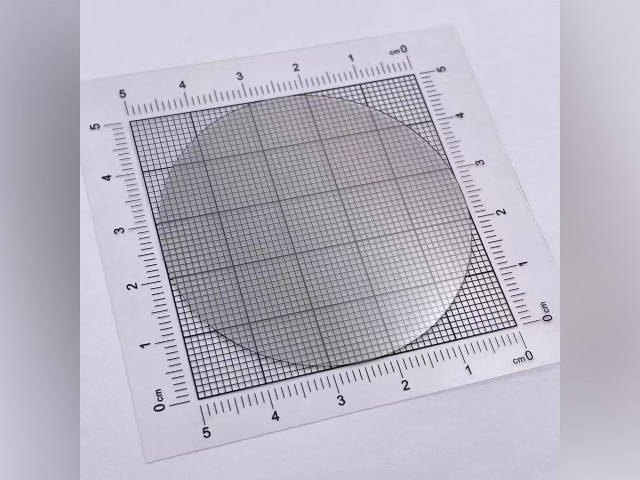

  Size: Up to diameter 100 mm, larger sizes on request
 Surface: Both sides polished
 Raw thickness: Between 0.3 mm and 1.5 mm
 Polished thickness: Between 0.2 mm and 1.0 mm
