CVD Diamond Heat Spreader Blanks for Electronics Cooling

CVD Diamond Heat Spreader Blanks for Electronics Cooling

Product Overview

CVD diamond heat spreader blanks are used as thermal management materials for electronic and optoelectronic applications.

The blanks are supplied for further processing or integration. Depending on the project requirements, customers may perform cutting, surface treatment, bonding or packaging integration.

The suitable material and specification depend on the heat source, installation space, required dimensions, thickness, surface condition, bonding method and operating environment.

Product Form

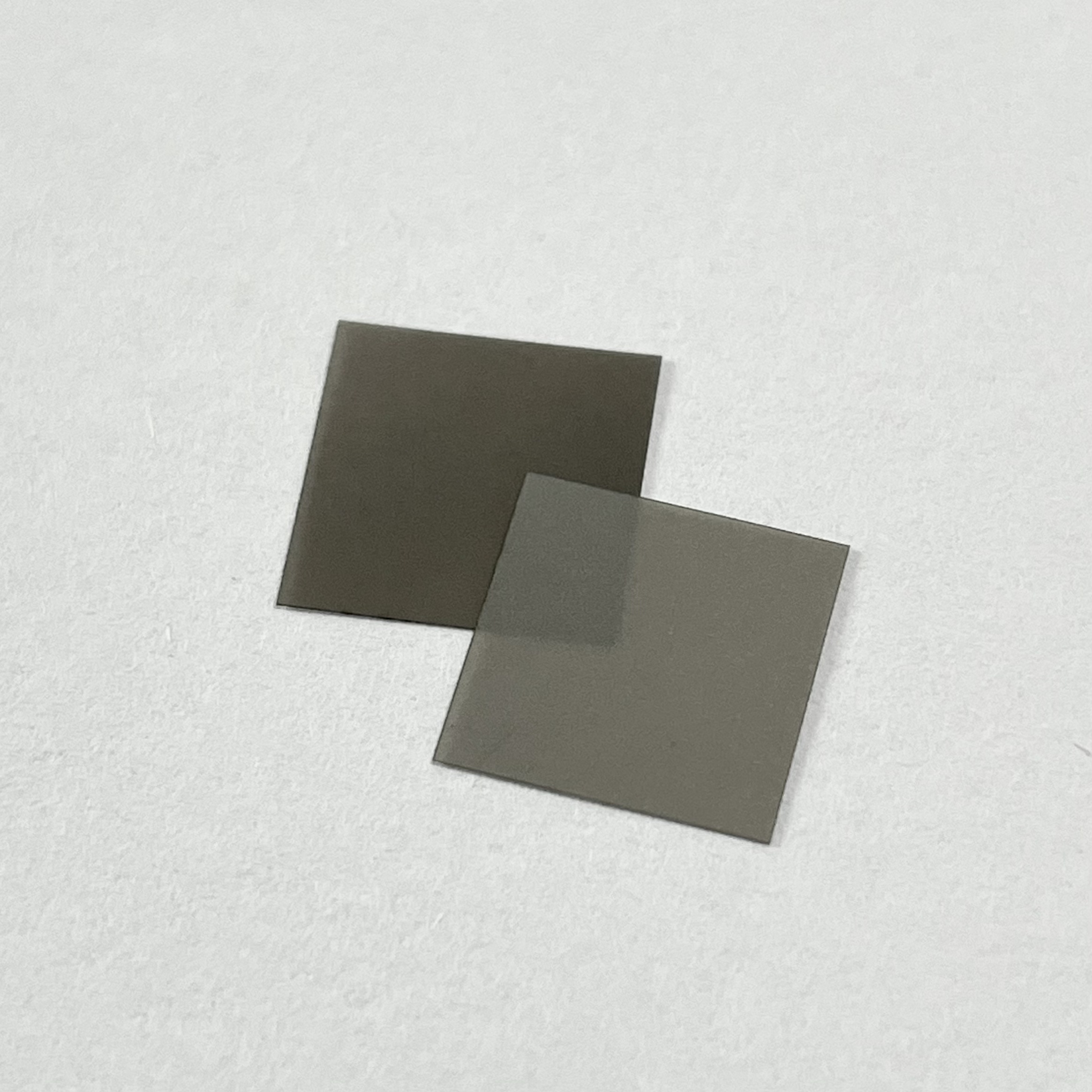

This product is supplied as a CVD diamond heat spreader blank or substrate.

It is not a complete cooling module. If you need a finished heat sink or an assembled cooling structure, please confirm the required product form before ordering.

Material

• CVD diamond

• Polycrystalline CVD diamond, where applicable

• Material type to be confirmed according to the product specification

Main Features

• High thermal conductivity

• Suitable for heat spreading applications

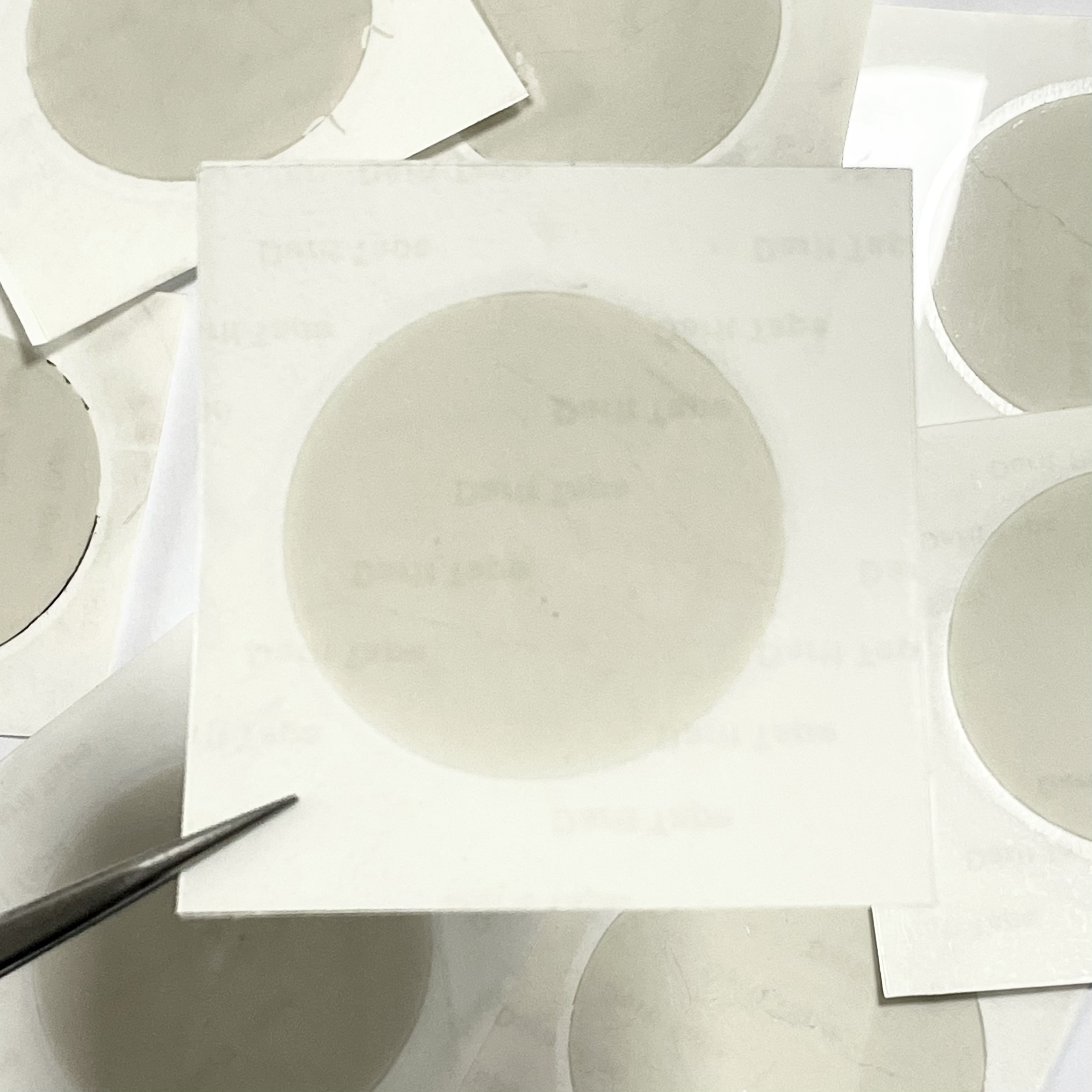

• Available in round or other customized shapes according to the confirmed drawing

• Surface treatment can be reviewed according to the application requirements

• Suitable for further bonding or packaging integration when the structure and process are confirmed

• Standard and custom dimensions can be reviewed

Applications

The product may be used in the following application areas:

• High-power electronic devices

• RF devices

• GaN-related power devices

• Laser diodes

• Optoelectronic devices

• Semiconductor packaging

• Power modules

• Other electronic components that require heat spreading

The final application and product specification should be confirmed before production.

Dimensions and Customization

Standard and custom dimensions can be reviewed according to the technical drawing.

Please provide the following information:

• Diameter or length and width

• Thickness

• Dimensional tolerance

• Surface condition

• Flatness or roughness requirement

• Edge condition

• Coating or metallization requirement

• Bonding method

• Application

• Required quantity

The available size, thickness and processing method depend on the material type and the confirmed production requirements.

Surface and Integration Requirements

The surface condition and bonding method affect the final use of the heat spreader.

Before production, please confirm:

• Whether polishing is required

• Whether coating or metallization is required

• Whether the product will be bonded or soldered

• Which material will be connected to the diamond

• The required operating temperature

• The thermal cycling conditions

• The required surface and flatness specifications

We will review the requirements according to the supplied drawing and application information.

CVD Diamond Blank or Finished Heat Spreader

A CVD diamond blank is a material component for further processing or integration.

A finished heat spreader may include additional processing, coating, bonding layers or structural features. These are different product forms.

Please confirm whether you need:

• A CVD diamond heat spreader blank

• A CVD diamond substrate

• A coated diamond blank

• A finished heat spreader

• A finished heat sink

• A customized thermal management component

How to Select the Product

The product should be selected according to the actual device structure rather than one performance value alone.

Please consider:

• Heat source size

• Required heat spreading path

• Available installation space

• Material thickness

• Surface condition

• Flatness and tolerance

• Bonding or soldering method

• Electrical requirements

• Operating temperature

• Thermal cycling conditions

• Production quantity

A clear technical drawing and application description will help us review the requirement more accurately.

Frequently Asked Questions

Q1: What is a CVD diamond heat spreader blank?

A CVD diamond heat spreader blank is a diamond material supplied for further cutting, surface treatment, bonding or packaging integration.

Q2: Is this product a finished heat sink?

No. This page is recommended for a CVD diamond blank or substrate. A finished heat sink may require additional processing, coating, bonding or assembly.

Q3: Can the dimensions be customized?

Custom dimensions can be reviewed according to the technical drawing and production requirements. Please provide the required diameter, length, width, thickness and tolerance.

Q4: What information is needed for a quotation?

Please provide the application, product dimensions, thickness, surface condition, tolerance, coating or bonding requirements and quantity.

Q5: Can the product be used for GaN devices or laser diodes?

The product may be considered for GaN devices, laser diodes and other electronic or optoelectronic applications that require heat spreading. The suitable material and structure should be confirmed according to the actual device design.

Q6: Can the product be coated or metallized?

Please confirm the required coating or metallization type before ordering. The available option depends on the bonding method, application and production requirements.

Q7: Can you provide samples?

Sample availability should be confirmed according to the required material, dimensions, surface condition and application.

Before Ordering

Please send the technical drawing or application information before ordering.

The following information is recommended:

• Product form

• Material type

• Dimensions

• Thickness

• Tolerance

• Surface condition

• Coating or metallization requirement

• Bonding method

• Application

• Quantity

We will confirm the available specification before production.
