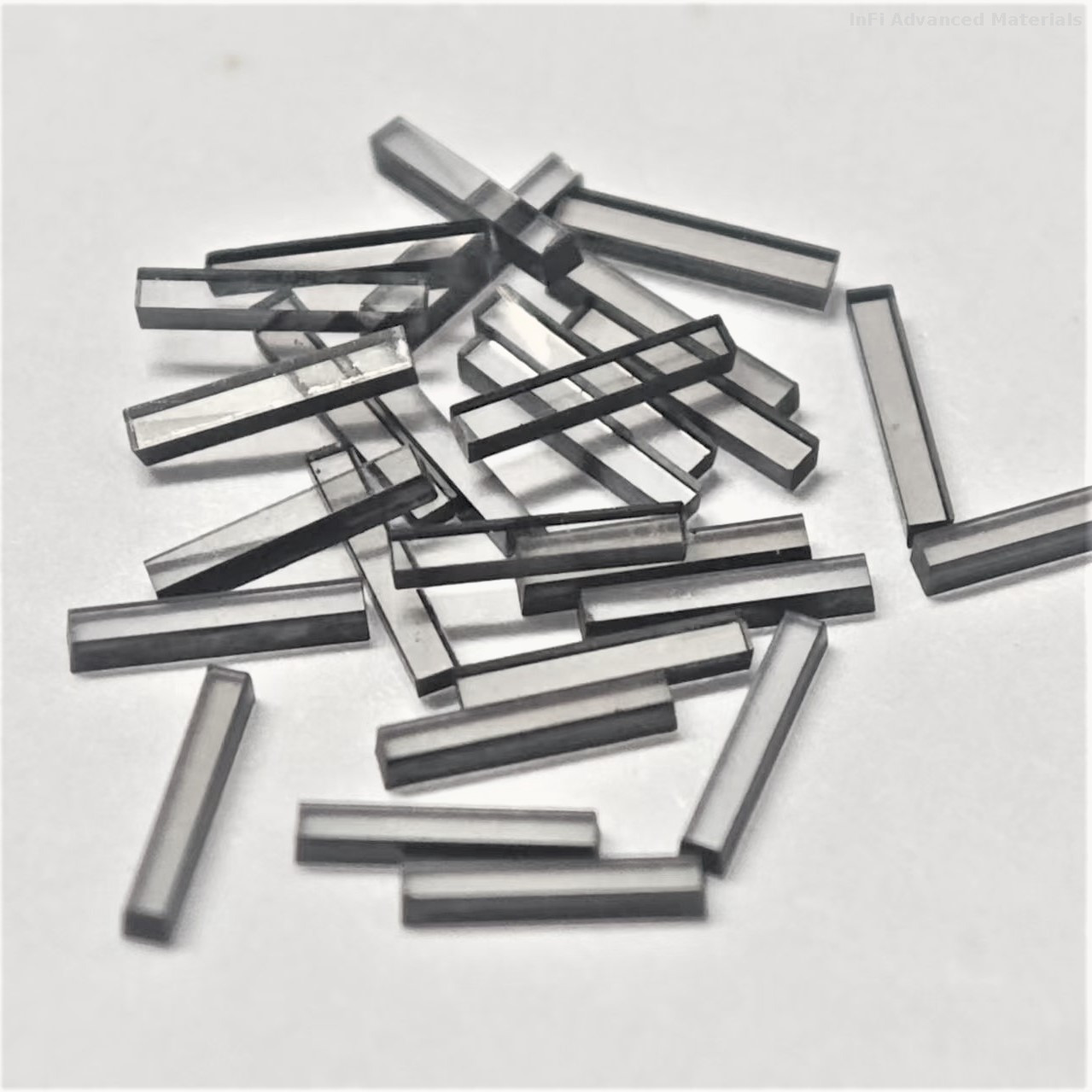

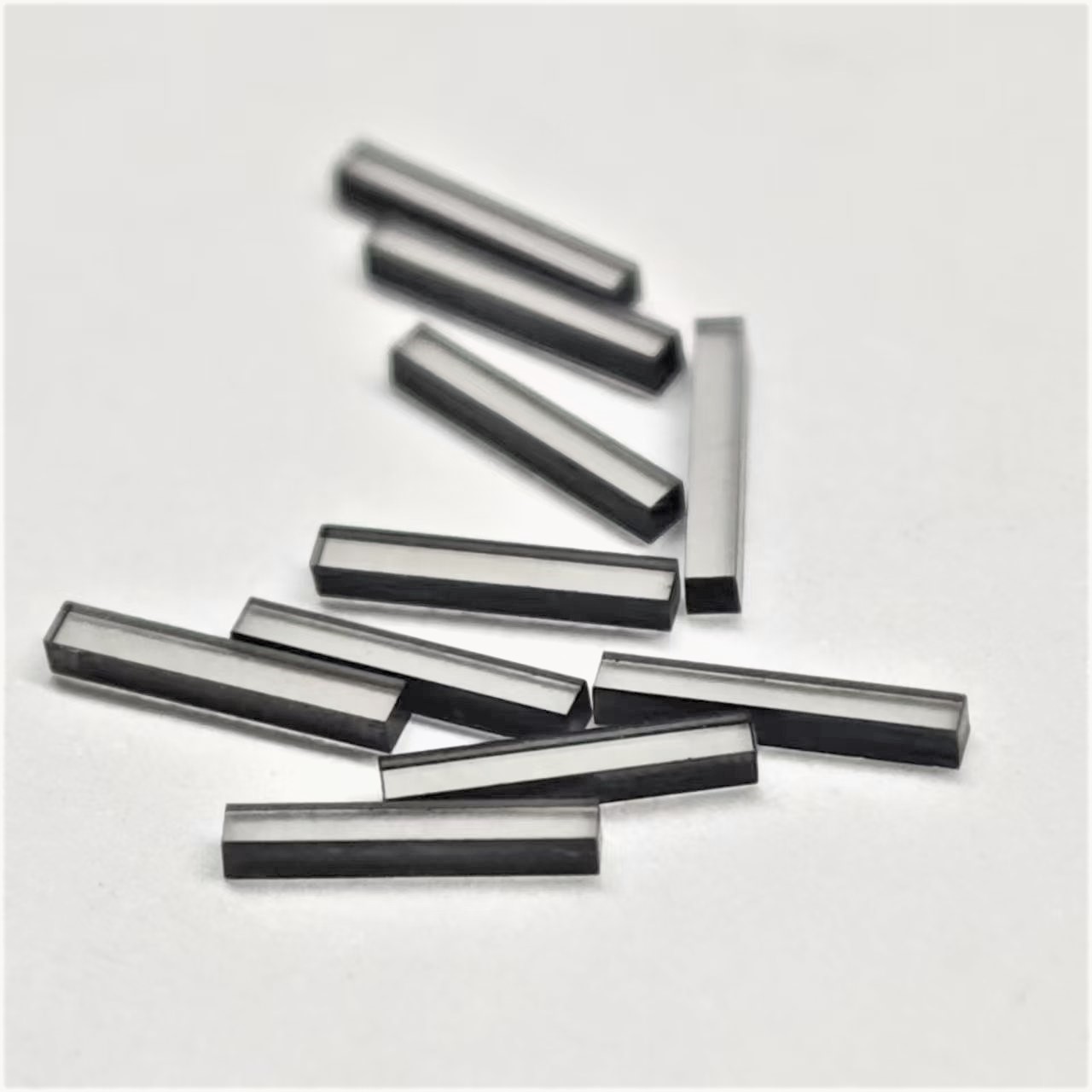

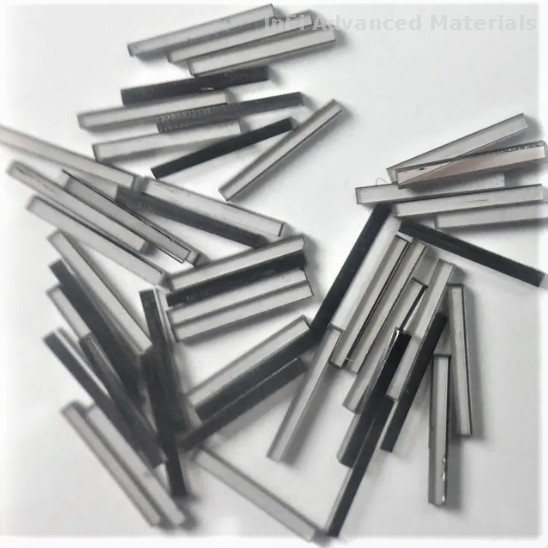

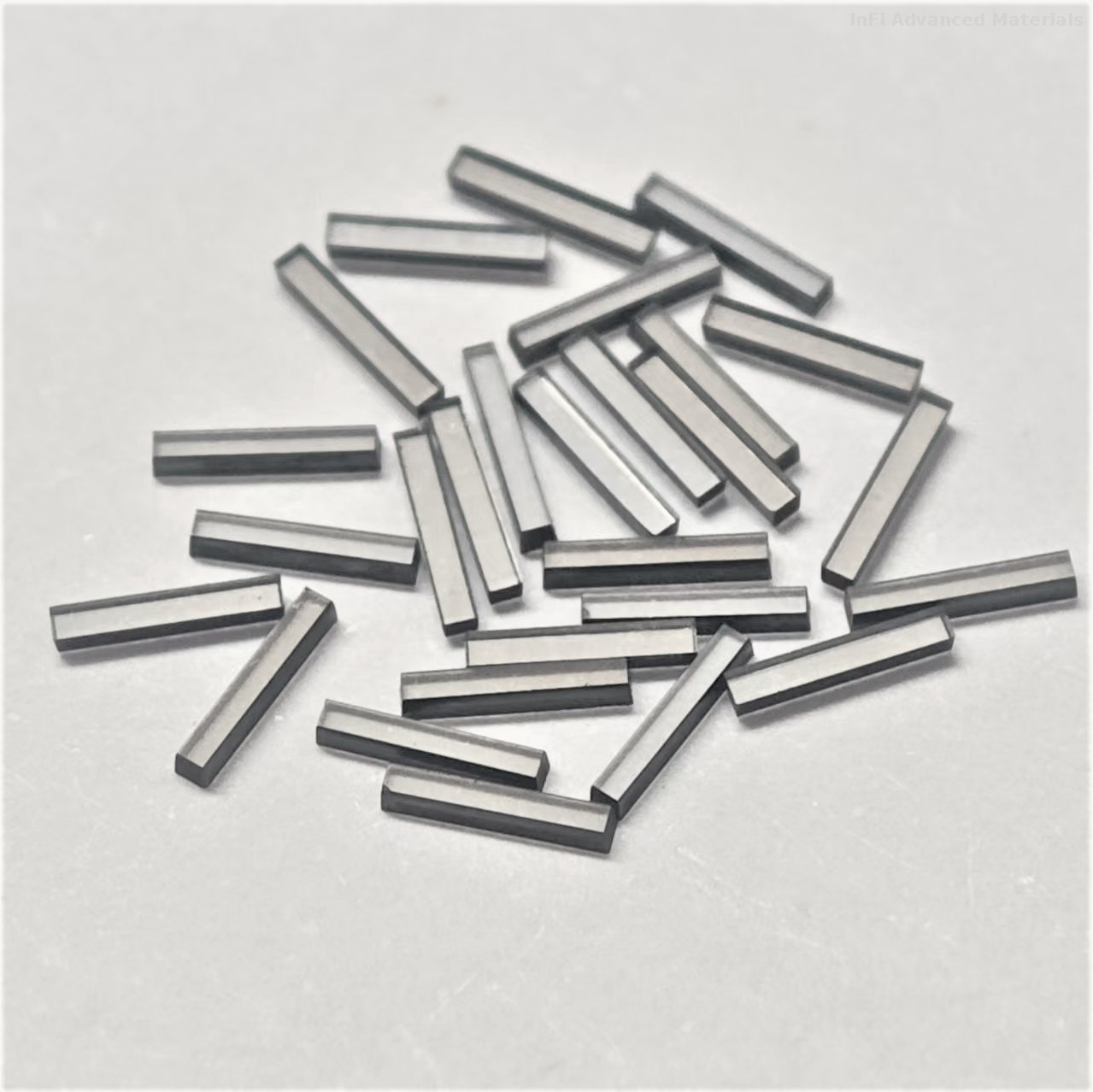

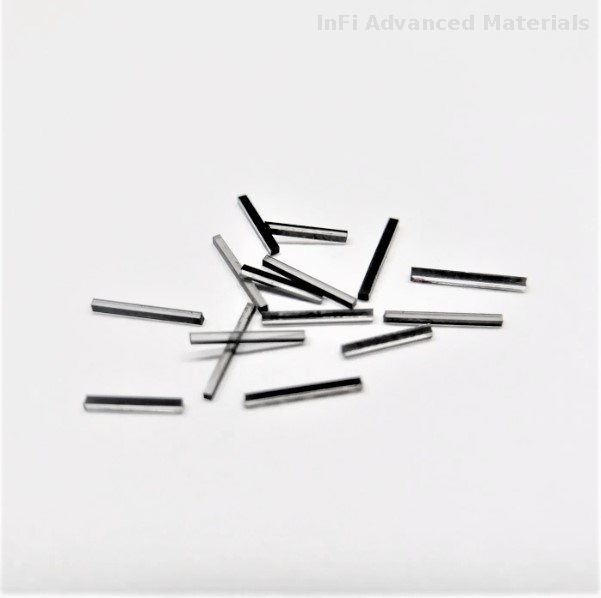

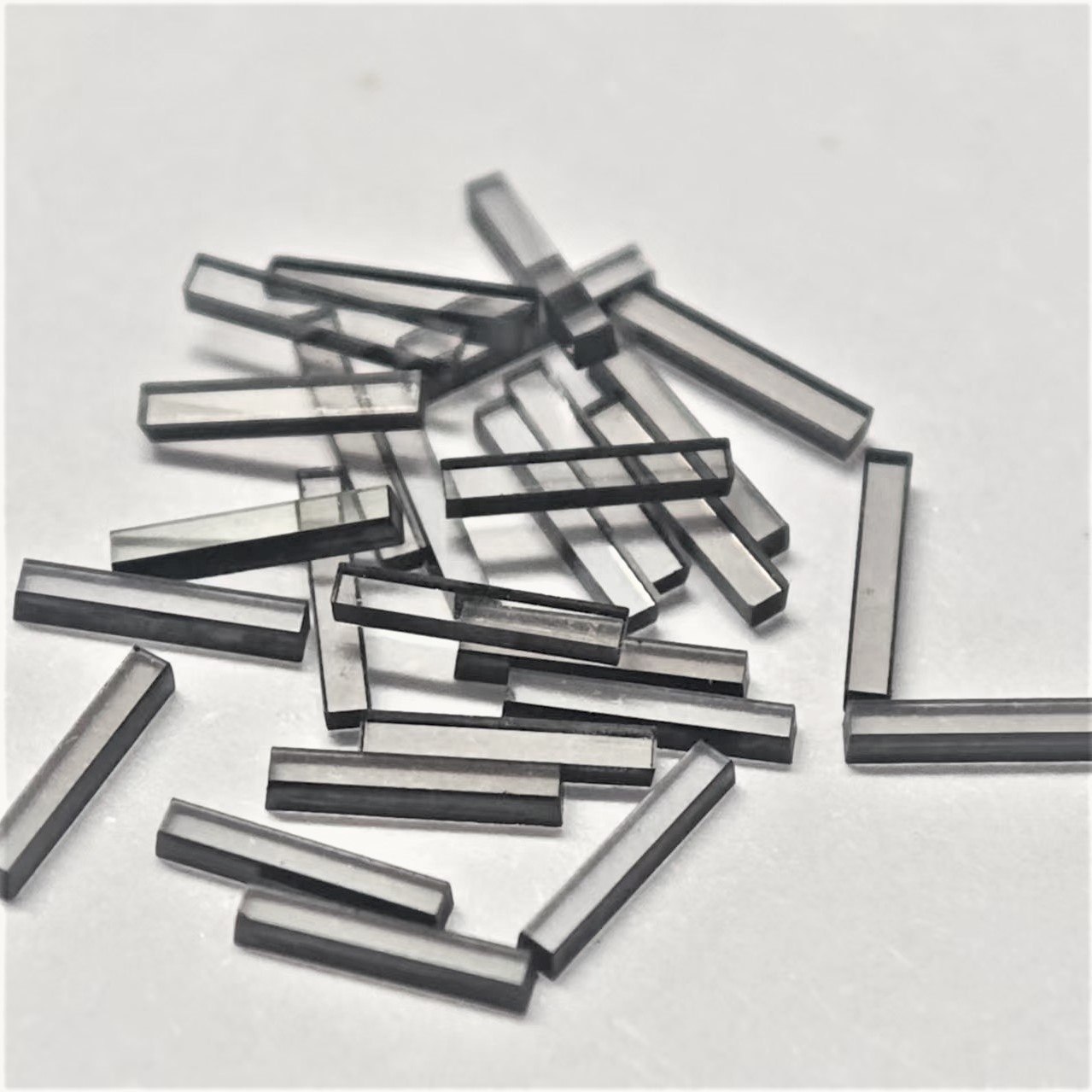

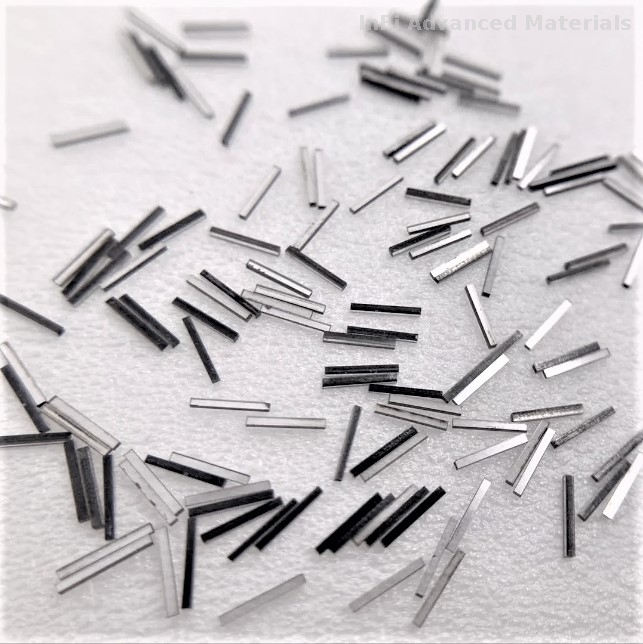

Premium CVD Diamond Logs: Precision Engineered for Industrial Excellence
Crafted from ultra-pure CVD single crystal diamonds, these diamond logs are optimized for manufacturing high-performance bar dressers. A cornerstone solution for grinding wheel conditioning and precision machining, they deliver unmatched stability and longevity in demanding industrial applications.
Enhanced Process Control: Excels in complex profile machining and precision grinding operations
Operational Efficiency: Supports high-volume production with minimal downtime
Supply Reliability: Scalable manufacturing ensures consistent bulk availability
Abrasive Wheel Conditioning: Precision dressers for grinding wheel maintenance
Specialized Cutting Systems: Blades for non-metallic/non-ferrous material processing
Surface Finishing Tools: Burnishing instruments for refined texture control
Wear-Resistant Components: Durable parts for high-friction environments
Custom Tooling Solutions: Tailored knives for niche manufacturing needs
Single crystal CVD has high hardness, good wear resistance, high strength, high elastic modulus, good thermal conductivity, low friction coefficient, good adhesion resistance, and excellent corrosion resistance and chemical stability, meeting the requirements of precision and ultra precision cutting tool materials.
Application of mechanical grade CVD:
Milling amd cutting tools
Wire drawing machine dies
Surgical diamond blades, ophthalmic and neurosurgical scalpels, ultra-thin biological slicers, etc
Diamond dressing tool
Water jet nozzle orifices
| Available size | 2~20mm |
| Available thickness | 0.2mm - 3mm |
| Lateral tolerance | +0.15,-0mm |
| Thickness tolerance | +0.1,-0.05mm |
| Face orientation | {100}> or {110} |
| Crystallographic Orientation(Miscut) | ±3° |
| Surface finish | Polished,Ra<10nm |
| Edges | Laser Cut |
| Laser Kerf | <3° |
The length, width, thickness, shape, and crystal orientation can all be customized.
Common Sizes:
| Length | Width |
| 3.0 | 0.4 |
| 3.0 | 0.6 |
| 3.0 | 0.8 |
| 3.0 | 1.0 |
| 3.0 | 1.2 |
| 4.0 | 0.4 |
| 4.0 | 0.6 |
| 4.0 | 0.8 |
| 4.0 | 1.0 |
| 4.0 | 1.2 |
| 5.0 | 0.4 |
| 5.0 | 0.6 |
| 5.0 | 0.8 |
| 5.0 | 1.0 |
| 5.0 | 1.2 |
| 6.0 | 0.4 |
| 6.0 | 0.6 |
| 6.0 | 0.8 |
| 6.0 | 1.0 |
| 6.0 | 1.2 |
The largest length can be 20mm ,
The largest width can be 7mm,
Availabe thickness: 0.1mm, 0.2mm, 0.3mm, 0.4mm, 0.5mm, 0.6mm, 0.7mm, 0.8mm,0.9mm,1.2m, 1.5mm, 1.7mm, 2.0mm
