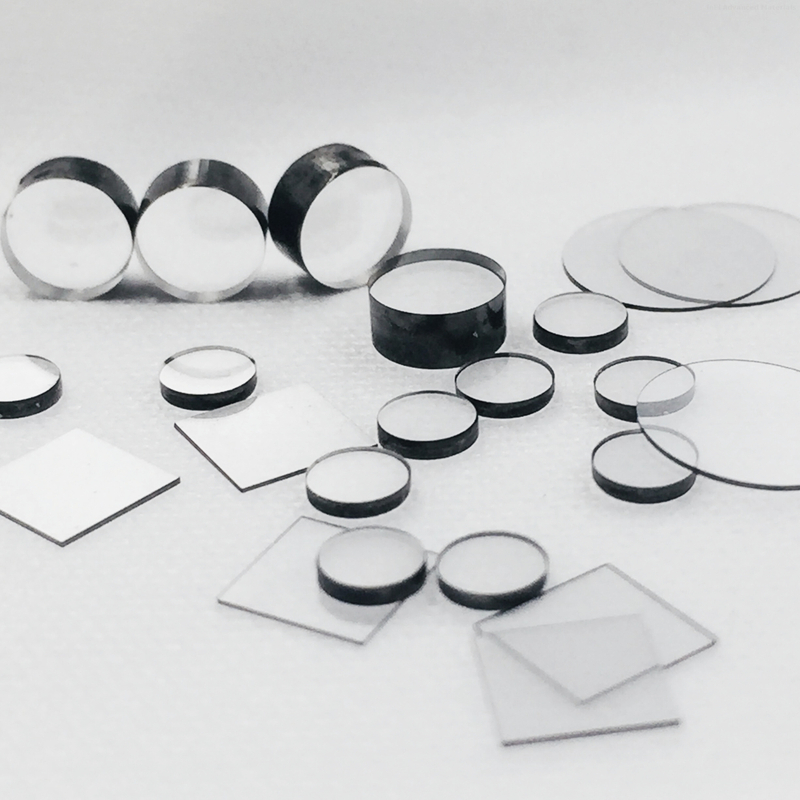

Electronic CVD Diamond | Transform Your Technology with CVD Lab Grown Diamonds for Advanced Applications

A multifunctional material, electronic-grade CVD diamond drives innovation across quantum computing, medical devices, industrial engineering, and high-performance optics.
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button
  • INFI

CVD Electronic-Grade Diamond: Precision-Engineered Material
Synthesized via chemical vapor deposition, electronic-grade CVD diamond achieves defect-free crystalline structures tailored for advanced technical applications. Offering superior heat dissipation, electrical insulation, and mechanical durability, this material outperforms natural diamonds in controlled purity and functional consistency.


Core Specifications

  • Dimensions: Customizable from 1×1 mm to 20×20 mm

  • Thickness Range: 0.3 mm – 3 mm

  • Surface Options:

    • As-deposited (unprocessed)

    • Mechanically lapped

    • Optical-grade polished

  • Edge Configurations: Laser-cut precision or polished finishes


Industry Applications

  1. Quantum Systems: Utilizes NV center defects for quantum computing qubits and ultra-sensitive detectors.

  2. Thermal Solutions: Manages extreme heat in high-frequency lasers and power semiconductors.

  3. Medical Precision: Enhances surgical scalpels and radiation monitoring devices with biocompatible surfaces.

  4. Optical Durability: Deploys in abrasive-resistant lenses for aerospace and industrial imaging systems.

  5. Tooling Excellence: Extends operational life in diamond-coated drills and cutting blades.


Performance Classification

  • Electronics Tier: Quantum optics, particle detection

  • Optical Tier: Sensor windows, pressure anvils

  • Industrial Tier: Wear-resistant machining tools


Summary: As a transformative synthetic material, electronic-grade CVD diamond enables advancements in quantum research, medical instrumentation, industrial engineering, and optical technologies.



Size Available:

Crystal growth process:
Mono crystal CVD diamond
Color:
Normal grade - Near colorless, Mechanic grade - Brown
Advantage:
1) Regular shape, uniform size. The size can be strictly controlled according to customer needs.
2) High repurchase rate and high cost performance, well received by customers.
3) No visible growth lines,under 100x microscope, no black spots, no impurities, no crack.
4) The stress is good, the number of times of reuse is high, and it is not easy to crac
Size
7*7  8*8  9*9  10*10 11*11  12*12  13*13  14*14
Thickness: 0.05-3mm
Orientation:
4pt/100
Shape:
Square,Triangles, rectangles, swords
Lateral Dimensions Measured
to smaller side
Edges
Laser Cut
Laser Kerf
< 3°
Lateral Tolerance:
+0.1/-0 mm
Roughness, Ra
1. Two sides polished, Ra <10- 30 nm

2. One side polished, the other size is The other side is the cutting surface, or grow

3.Both sides are unpolished
