Semicircular
INFI

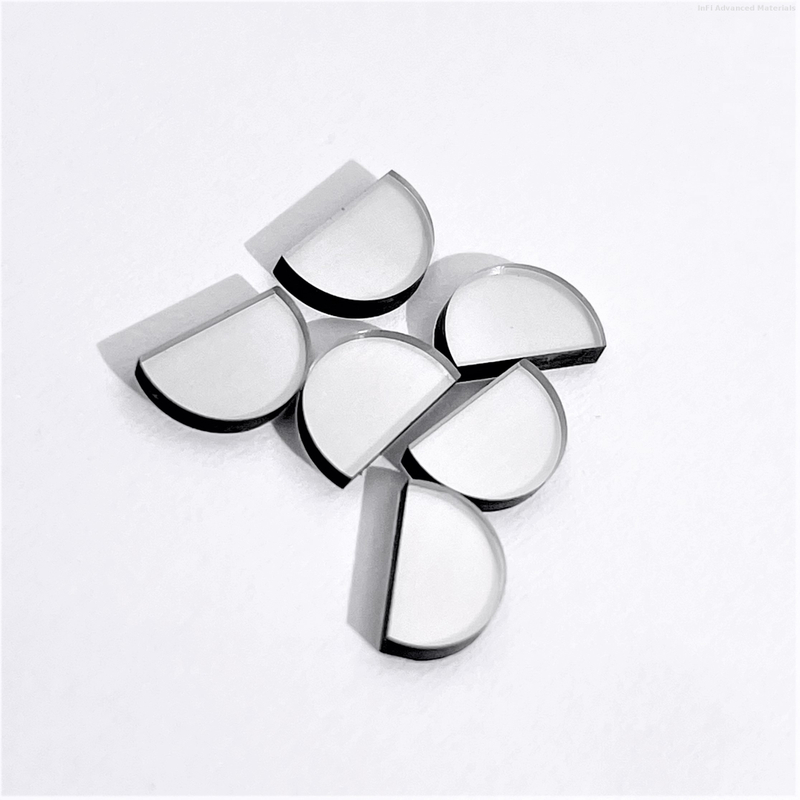

Mechanical-grade CVD single crystal diamonds (Semicircular) feature:High strength and elastic modulus
→Excellent thermal conductivity
→ Superior wear/corrosion resistance
→Chemical stability and low friction
→Adhesion prevention
Meeting ultra-precision cutting material requirements.
Key Implementations:
Diamond dressing tools
Water jet nozzle orifices
Wire drawing machine dies
Surgical/neurosurgical/ophthalmic blades
Milling and cutting instruments
Custom Specifications:
→Maximum length: 20mm
→Maximum width: 7mm
→Thickness options: 0.1mm to 2.0mm (13 discrete sizes)
→Shape/orientation customization
Material Science:
CVD diamond (laboratory-created/synthetic/chemical vapor deposition diamond) is human-made, contrasting with natural diamonds. Primary production techniques:
HPHT: Cost-effective high-pressure (5 GPa) high-temperature (1500°C) process
CVD: Low-pressure (<27 kPa) carbon deposition enabling:
• Large-scale production
• Substrate flexibility
• Precise property engineering
| Available size | 2~20mm |
| Available thickness | 0.2mm - 3mm |
| Lateral tolerance | +0.15,-0mm |
| Thickness tolerance | +0.1,-0.05mm |
| Face orientation | {100}> or {110} |
| Crystallographic Orientation(Miscut) | ±3° |
| Surface finish | Polished,Ra<10nm |
| Edges | Laser Cut |
| Laser Kerf | <3° |
