CVD Diamond | Superior CVD Lab Grown Diamonds for High-Performance Optical Applications

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button
  • CVD

  • INFI

Optical CVD Diamond Specification

Next-Gen Photonic Material for Extreme Environments
Dominating optical performance with the industry’s widest transmission band (225 nm - 25 μm, skip 1.8-2.5 μm), CVD single-crystal diamond adds microwave transparency to its unique portfolio. Unmatched radiation resistance, Vickers hardness >100 GPa, 2,200 W/mK thermal conductivity, chemical stability, and ultra-low expansion establish it as the benchmark IR window material.


Critical Parameters

┌────────────────────────┐
│ Parameter                      │ Specification                              │
├────────────────────────┤
│ Refractive Index          │ ~2.4 (1-30 μm optimal)           │
│ Surface Roughness    │ Ra <50 nm (post-polish)        │
│ Dimensional Error      │ ≤0.2 mm                                     │
│ Key Geometry              │ Mid-IR triangular prisms       │
└────────────────────────┘


Application Matrix

  • Energy Systems: CO₂ lasers / Gyrotron RF generators

  • Imaging & Sensing: LWIR (8-14 μm) detectors / Raman spectrometers

  • Micro-Optics: Diamond lenses for miniaturized systems

  • Research Frontiers: Extreme-environment optical components




Transformative Advantages

  • Scatter Suppression: <0.1% light loss at 10 μm wavelength

  • Material Efficiency: 30% weight reduction vs. ZnSe optics

  • Failure Resistance: Zero corrosion in acidic/alkaline media

  • Design Freedom: Enables previously impossible optical configurations


Product Properties

Refractive Index (1064nm)
2.392
Refractive Index (600nm)
2.415
Transmission (1064nm)
>68%
Transmission (8μm-25μm)
>70%
Thermal Conductivity
>2000 W/mK
Crystallographic Orientation
100 110 111
Miscut for Main Face Orientation
±3°
Common Product Size
2mm×2mm×6mm
2mm×2mm×7mm
4mm×4mm×7mm
Transverse Tolerance
±0.05mm
Thickness Tolerance
±0.1mm
Parallelism
<2′
Surface Roughness
<10nm
Edge Cutting
Laser Cutting

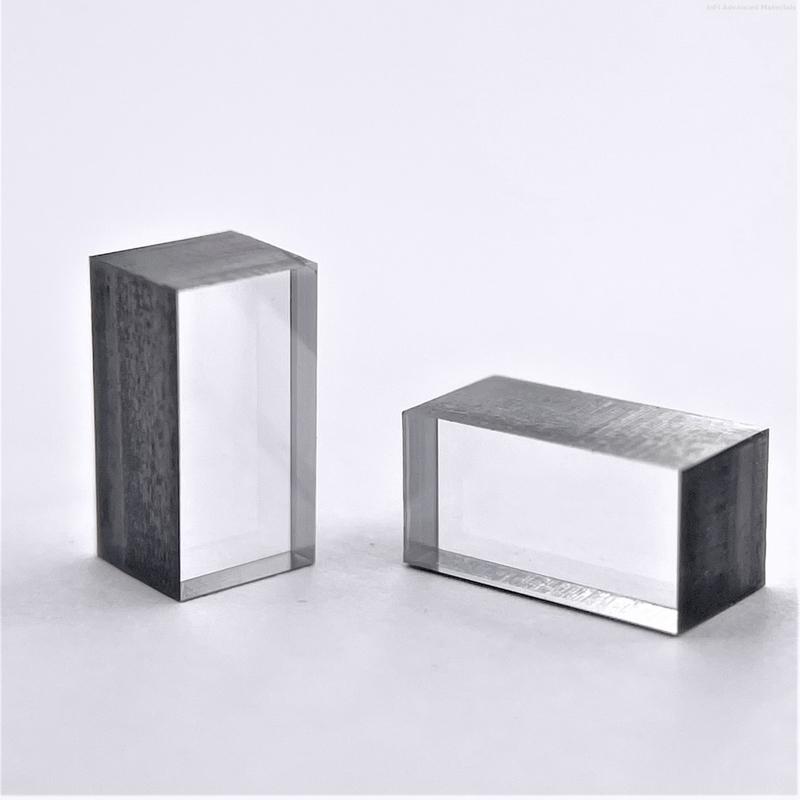

Picture details:
