JSD
INFI
| Refractive Index (1064nm) | 2.392 |
| Refractive Index (600nm) | 2.415 |
| Transmission (1064nm) | ＞68% |
| Transmission (8μm-25μm) | ＞70% |
| Thermal Conductivity | ＞2000 W/mK |
| Crystallographic Orientation | 100 110 111 |
| Miscut for Main Face Orientation | ±3° |
| Common Product Size | 2mm×2mm×6mm 2mm×2mm×7mm 4mm×4mm×7mm |
| Transverse Tolerance | ±0.05mm |
| Thickness Tolerance | ±0.1mm |
| Parallelism | ＜2′ |
| Surface Roughness | ＜10nm |
| Edge Cutting | Laser Cutting |
| Compared to Other High Gain Raman Crystals | ||||
| Single Crystal CVD Diamond | KGW KGD(WO4)2 | YVO4 | BA(NO3)2 | |
| Raman Gain(g) | 15 | 4 | 5 | 11 |
| Raman Frequency Shift ∆λ cm-1 | 1332 | 901 | 892 | 1047 |
| Crystal Length(L)mm | 8 | 25 | 25 | 25 |
| Thermal Conductivity(k)Wm-1K-1 | >2000 | 5 | 5.2 | 1.2 |
| Raman Figure of Merit | 1440 | 3 | 20 | 1 |

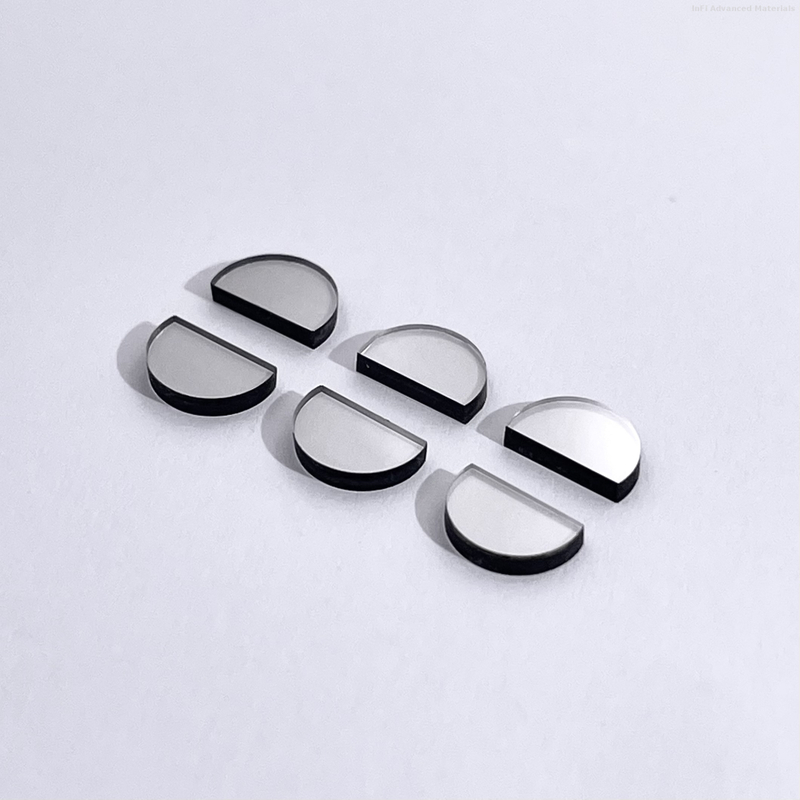

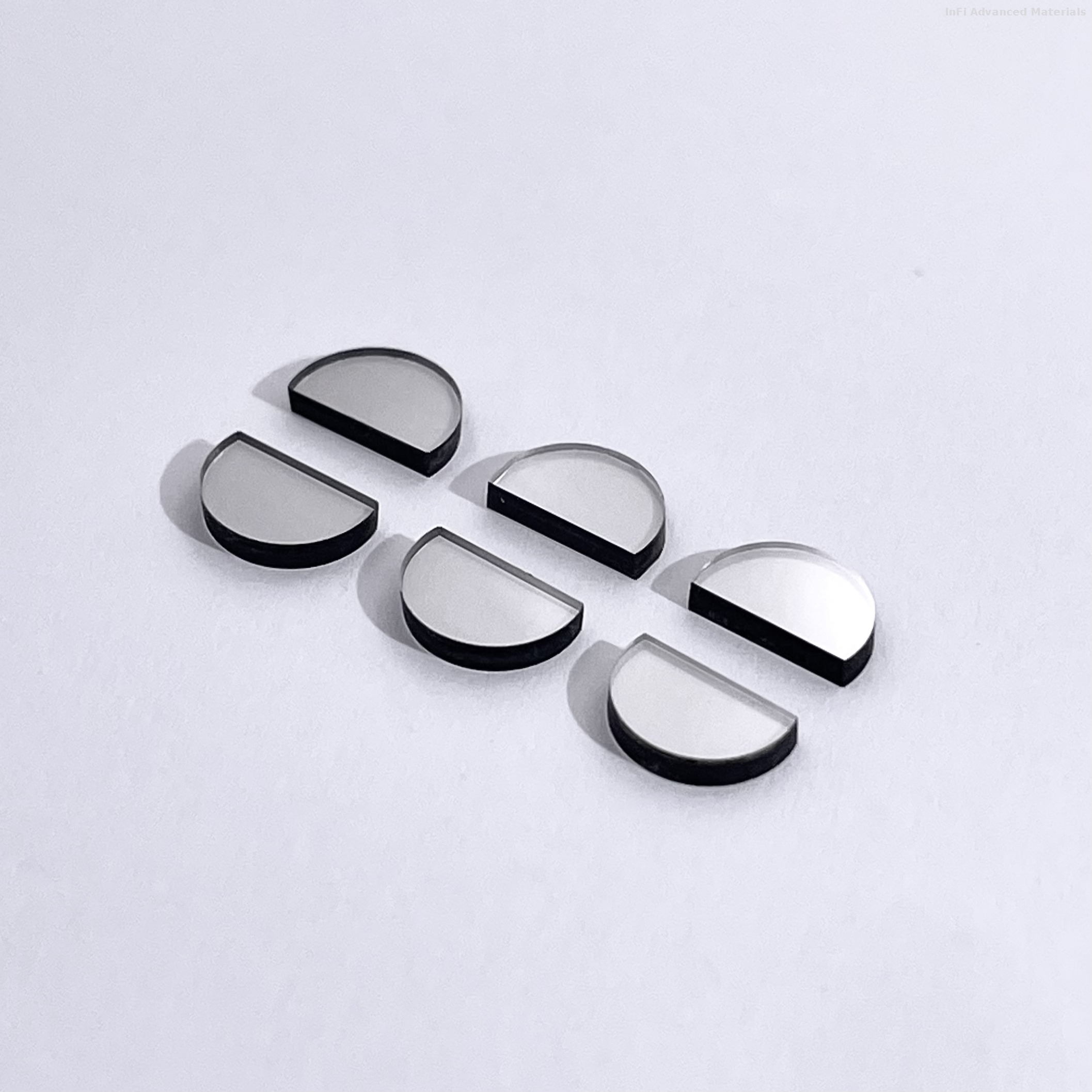

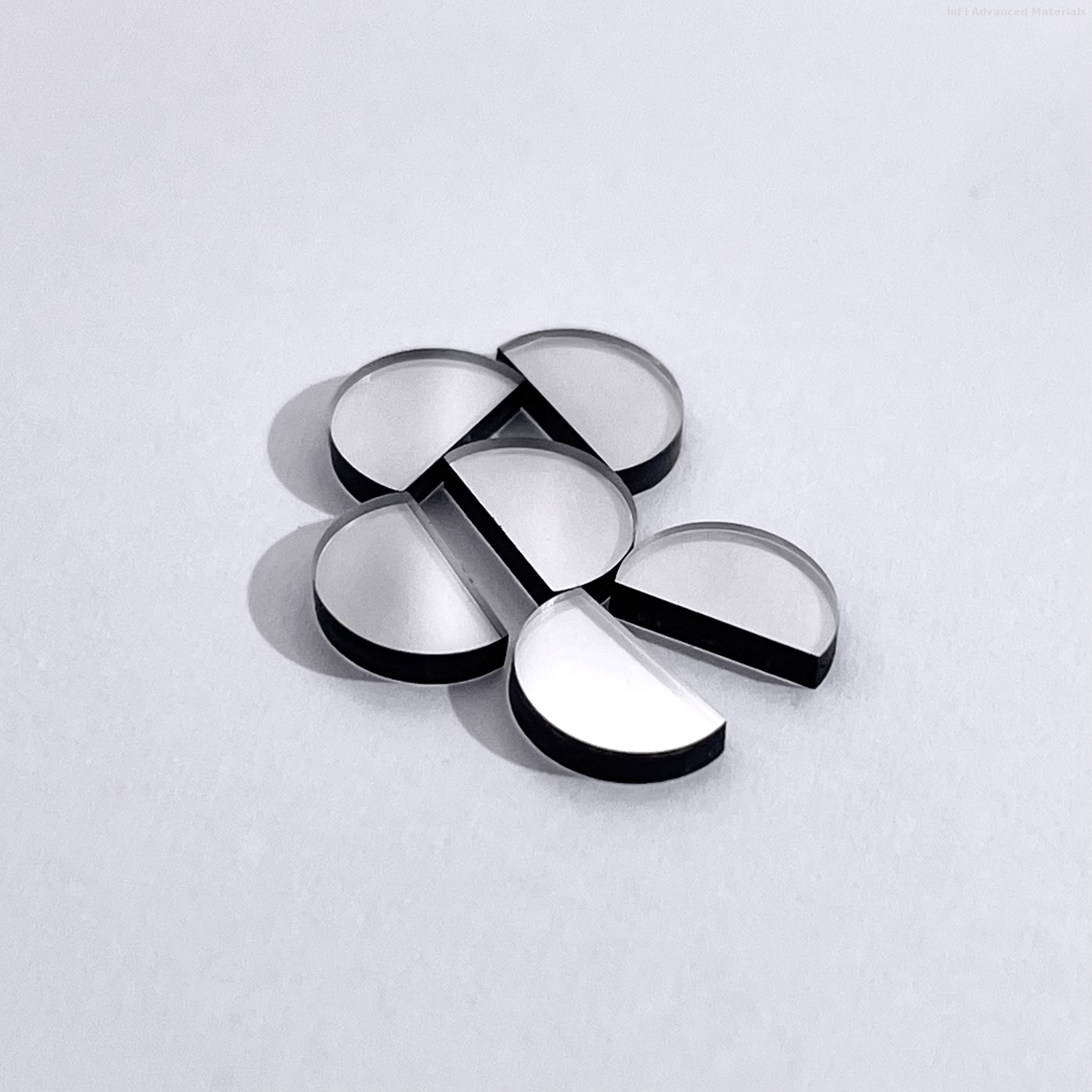

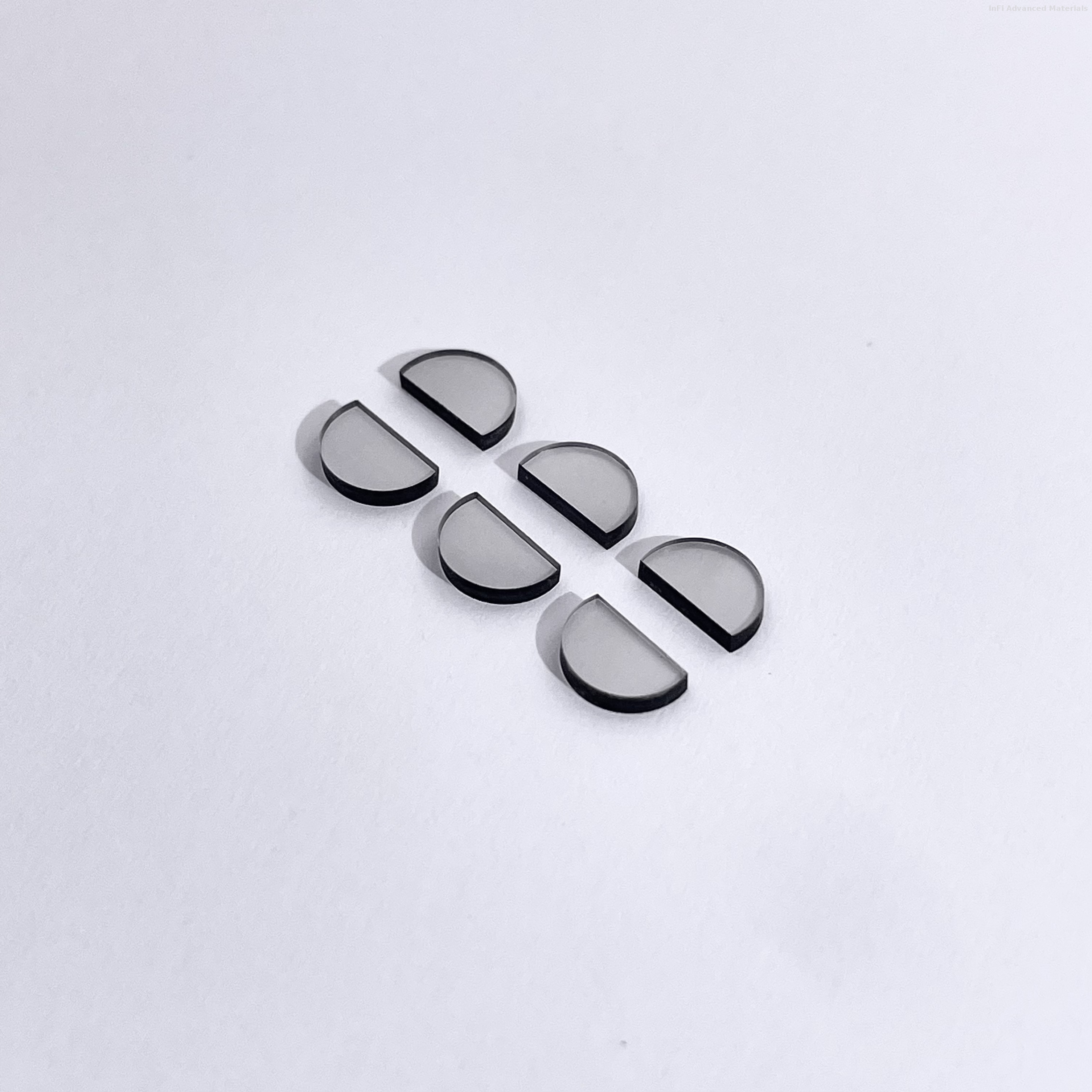

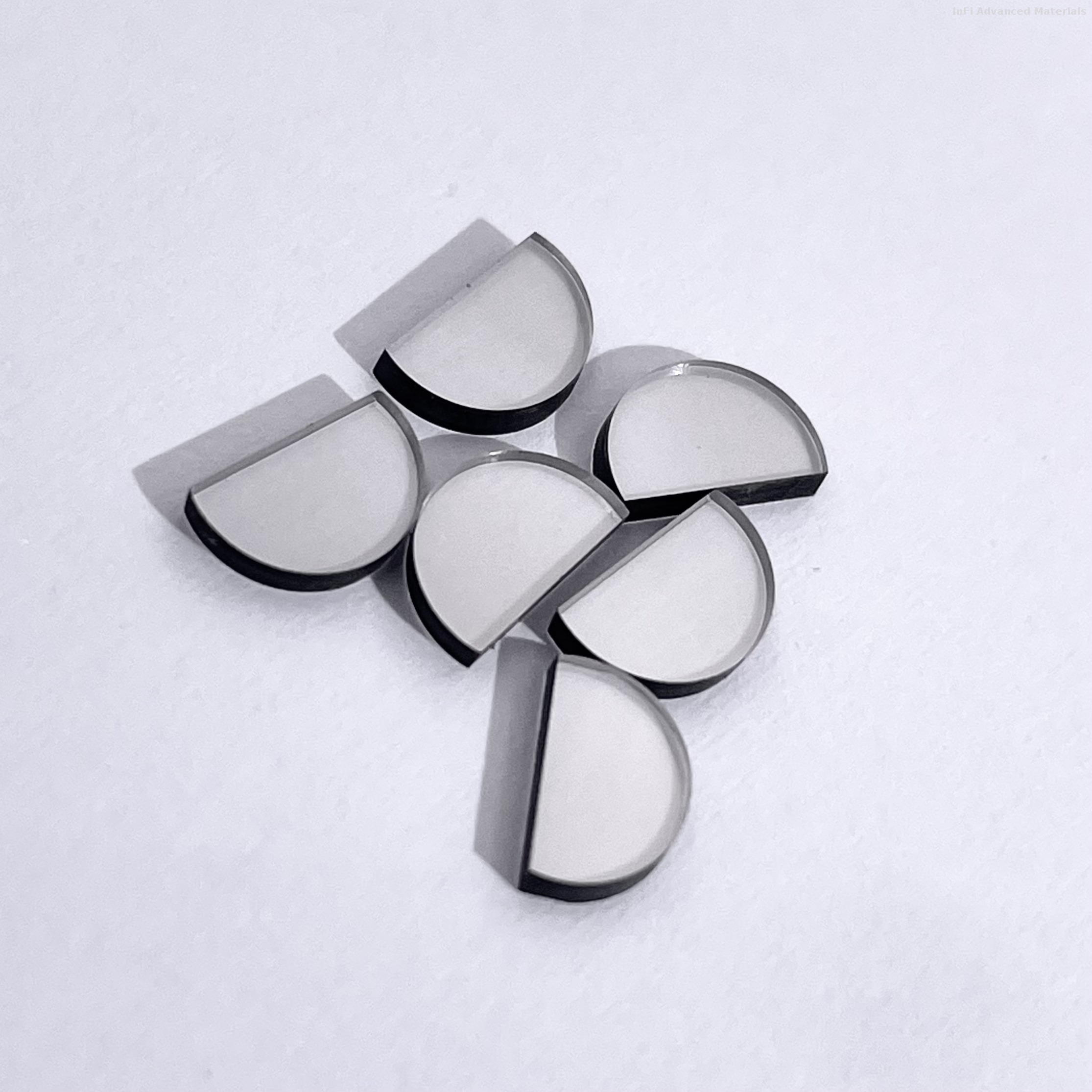

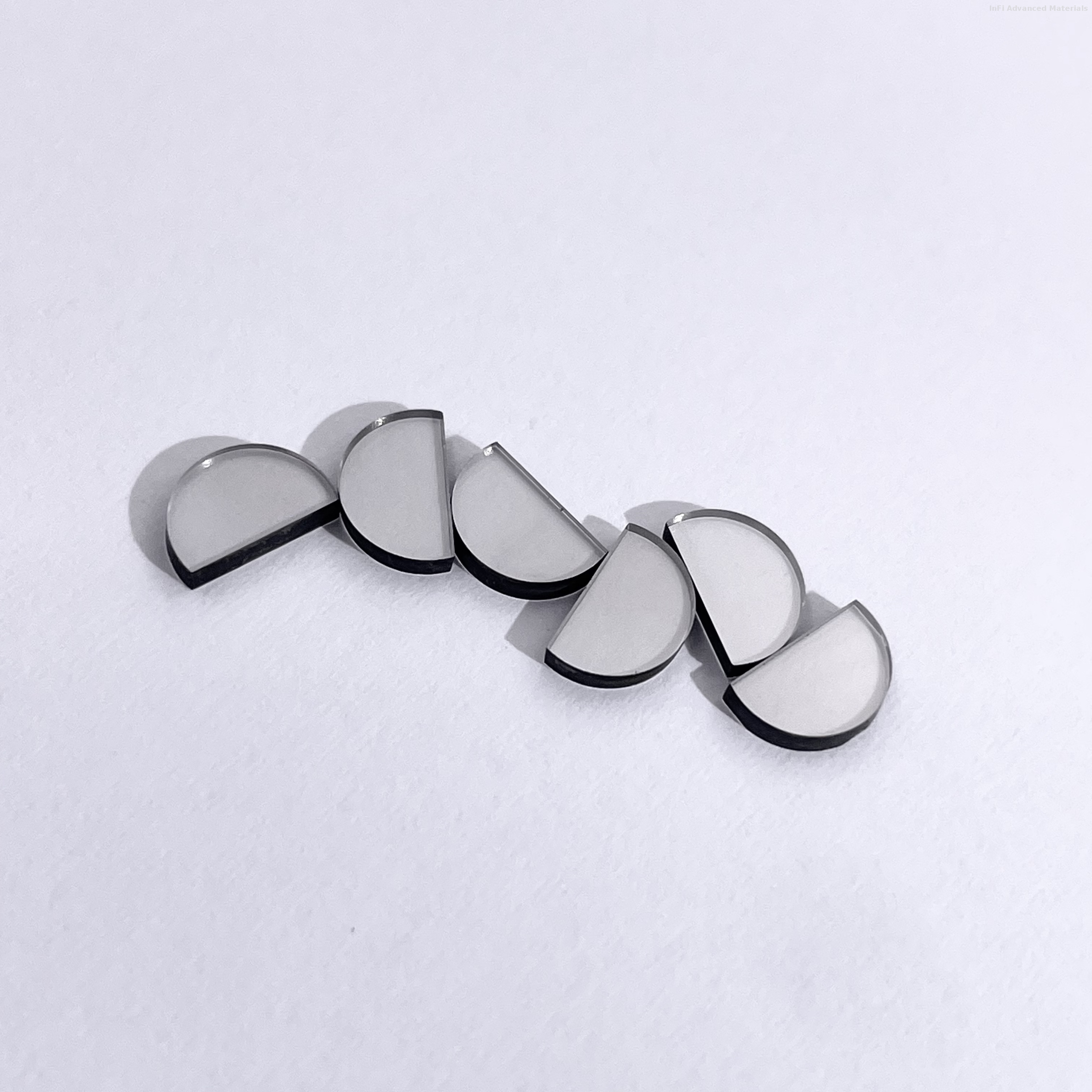

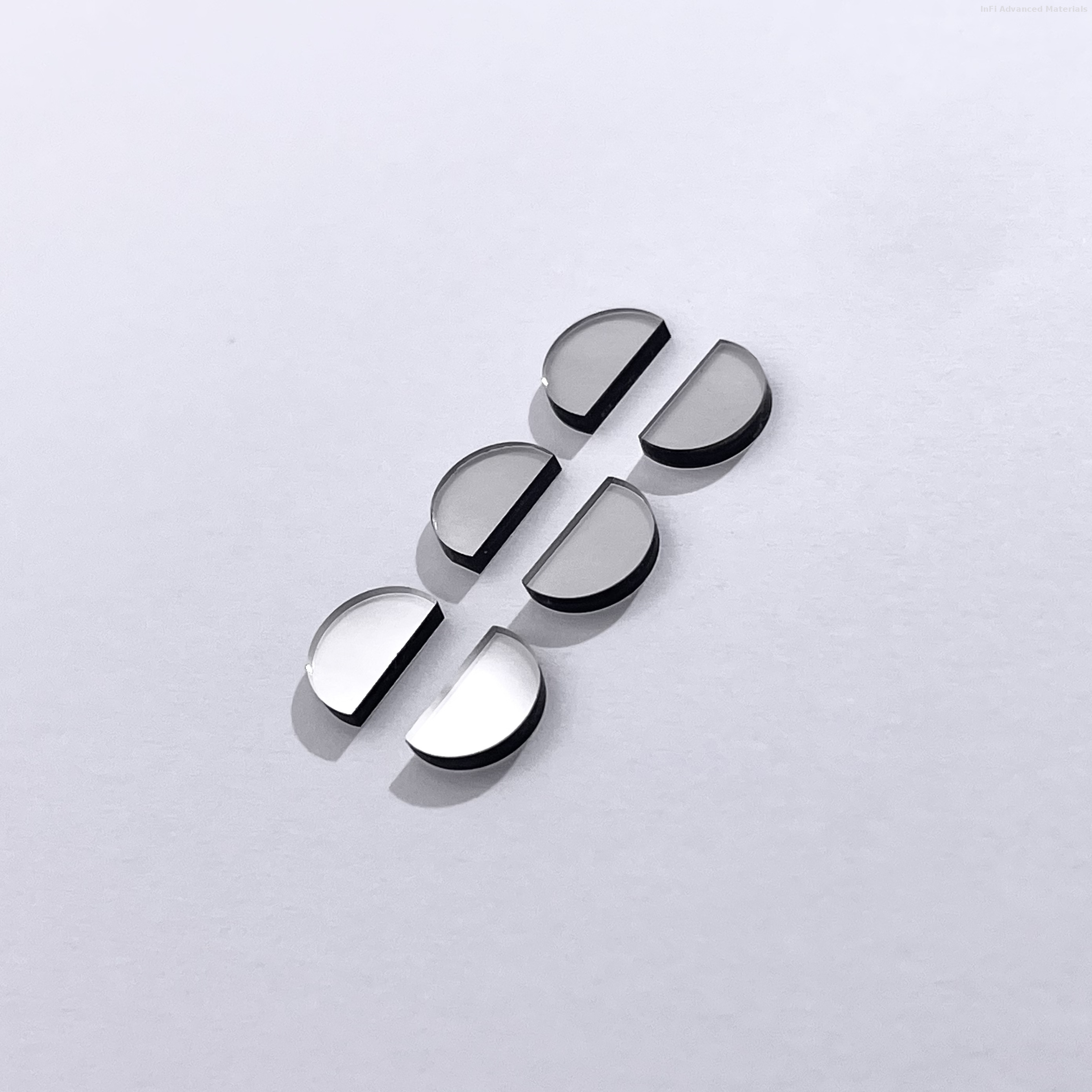

Optical-Grade CVD Single Crystal Diamond: Unmatched Spectral Performance
CVD-grown single crystal diamond delivers the broadest light transmission range among solid materials, spanning 225 nm (UV) to 25 μm (IR) – excluding the 1.8–2.5 μm band – with exceptional microwave transparency. Its unique combination of radiation resistance, extreme hardness, thermal conductivity, chemical inertness, and minimal thermal expansion makes it the premier choice for advanced infrared optical systems.
Mid-IR Optimization: Refractive index ~2.4 ensures high-efficiency transmission across 1–30 μm wavelengths
Surface Precision: <50 nm roughness for minimal light scattering above 1 μm
Dimensional Accuracy: ±0.2 mm tolerance
Triangular Prism Design: Optimized for mid-infrared radiation measurement instrumentation
Laser Systems: High-power CO₂ lasers, disc lasers, Raman lasers
IR Imaging & Sensing: Long-wave infrared detectors (8–14 μm)
Spectroscopic Analysis: Precision wavelength measurement tools
RF Technology: Gyrotron and high-power RF generator components
Compact Optics: Miniaturized diamond lenses for lightweight designs
The material’s ultra-low optical scatter and chemical stability enable:
High-Power Endurance: Reliable performance under intense energy loads
Hazardous Environment Resistance: Withstands corrosive/abrasive conditions
Geometric Innovation: Enables compact, high-strength optical architectures
Picture details:
