| Quantity: | |
|---|---|
CVD
INFI
| Product name | CVD diamond stick |
| Usage | Optical part and machine use |
| Available Shape | Customizable |
| Color | Colorless or light brown |
| size | Dia 2.6x3 mm |
| Material | Single Crystal CVD diamond |
| Advantage | High quality no defect and competitive price |
| Customized support | OEM, ODM |
| Type | Diamond |
| Telorance | 0.05 mm |
| Min. order | 5PCS |
Optical-Grade CVD Single Crystal Diamond: Key Attributes
Renowned for its unparalleled optical performance, CVD single crystal diamond exhibits the broadest transmission spectrum across solid materials. It operates effectively from 225 nm (ultraviolet) to 25 μm (infrared), excluding the 1.8–2.5 μm range, while maintaining exceptional microwave transmission. Combining extreme hardness, radiation resistance, thermal conductivity, chemical stability, and minimal thermal expansion, it is the premier choice for advanced infrared optical windows.
——————————————————————————————————————————————
Synthetic Diamond via CVD Technology
Produced through chemical vapor deposition, single crystal CVD diamond delivers unmatched mechanical and thermal properties. This material is revolutionizing precision applications in optics, electronics, and industrial manufacturing.
——————————————————————————————————————————————
Optical Applications
1. Laser Systems**: Resonators, output windows, and reflective optics
2. Sensing & Imaging**: Spectrometers, photodetectors, medical endoscopes
3. High-Precision Instruments**: Interferometers, beam splitters, Raman spectrometers
4. Astronomy & Communications**: Telescope lenses, fiber optic couplers, demodulators
5. Industrial Tools**: Laser etching systems, optical microscopes
——————————————————————————————————————————————
Critical Specifications for Mid-IR Transmission
·Refractive Index**: ~2.4 ensures high transmission across 1–30 μm wavelengths
·Surface Roughness**: <50 nm for optimal light propagation above 1 μm
·Dimensional Precision**: ≤0.2 mm tolerance
·Triangular Prism Advantage**: Ideal for mid-infrared radiation measurement systems

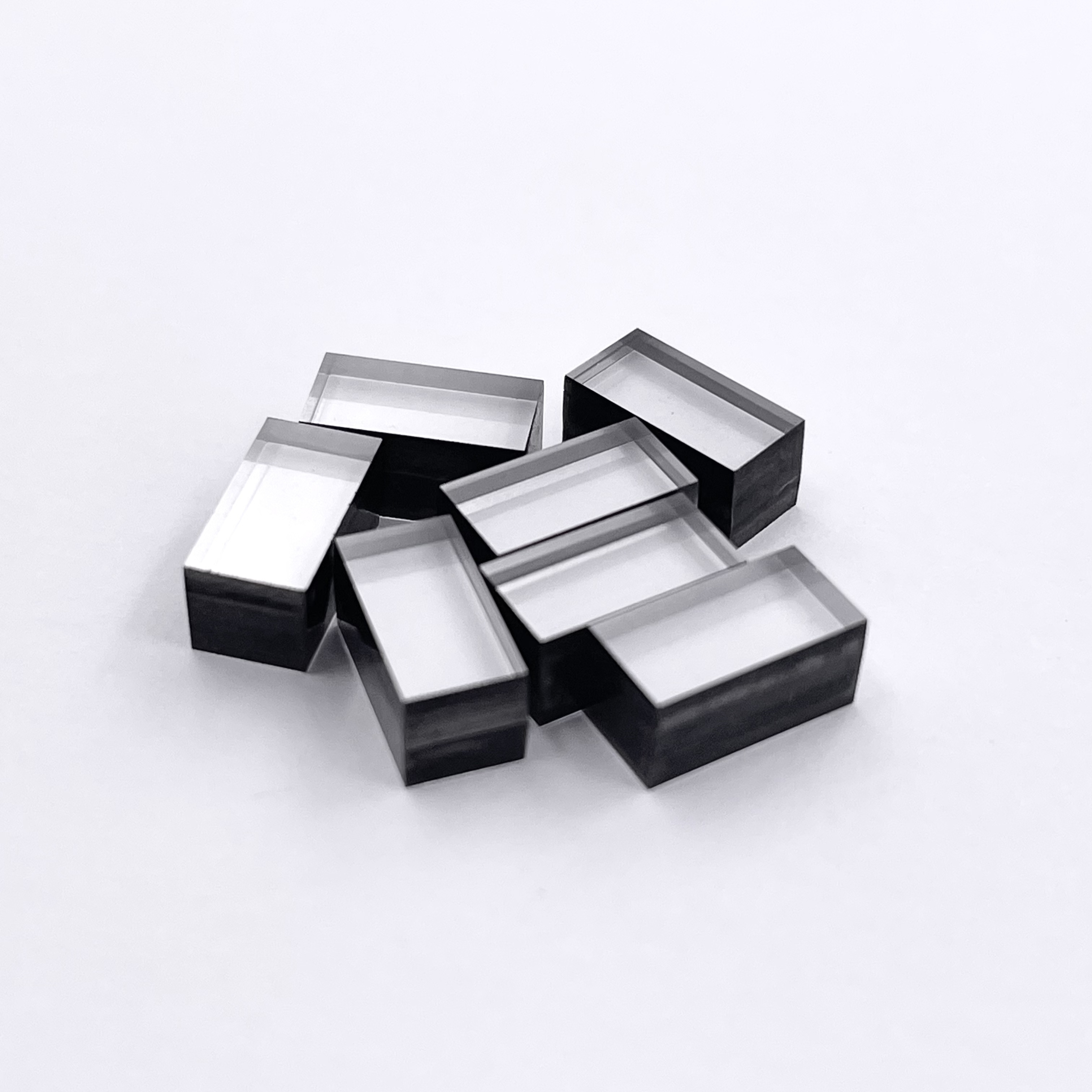

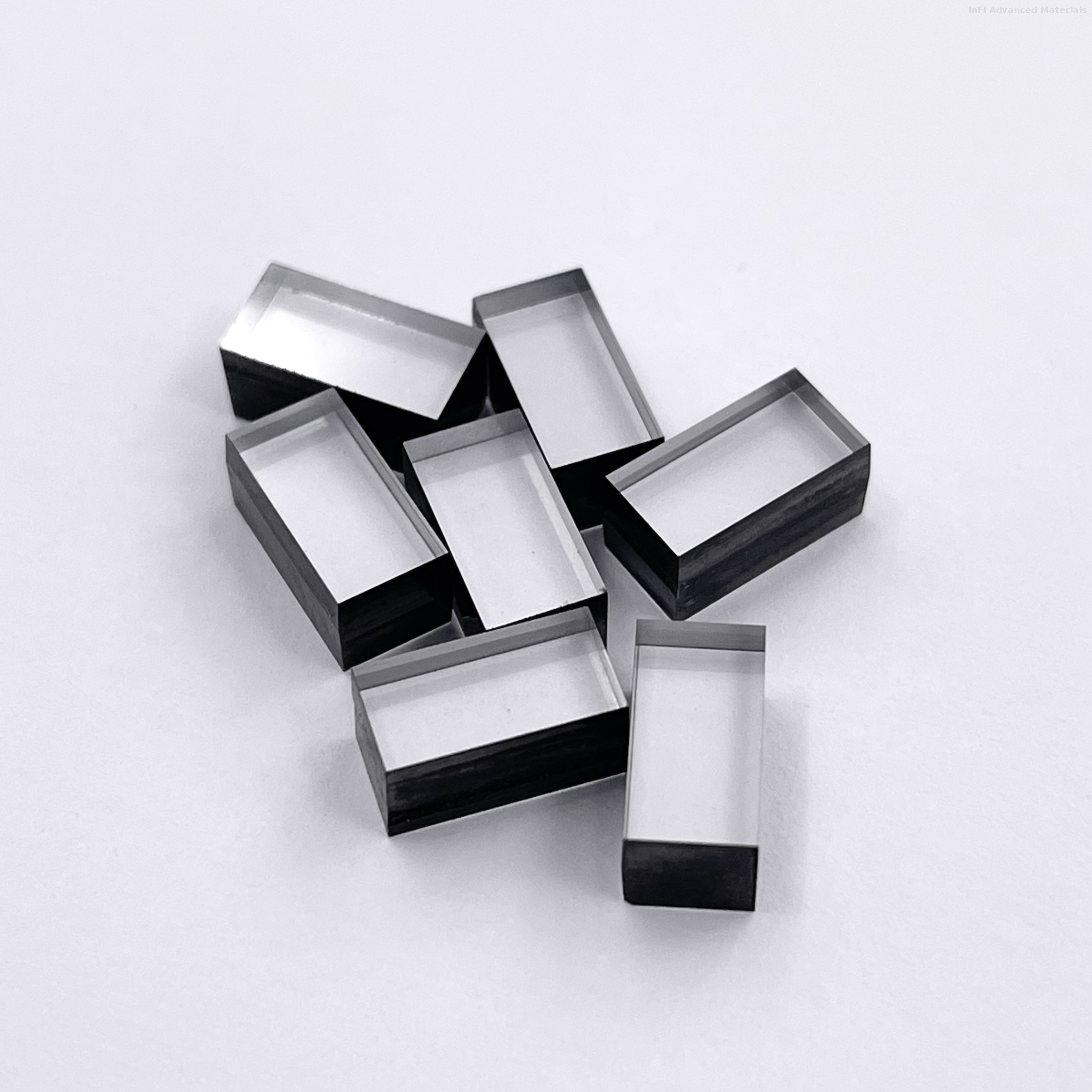

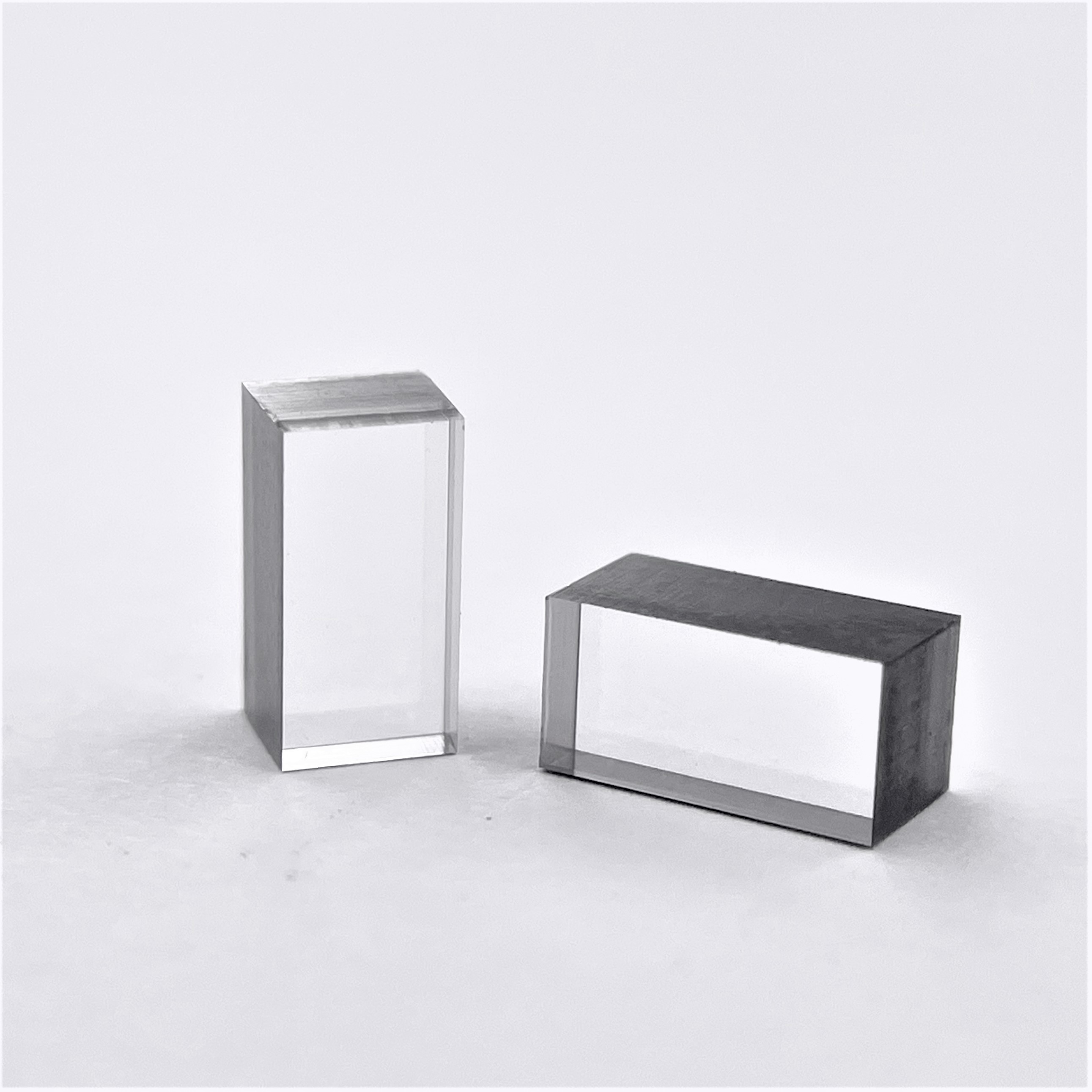

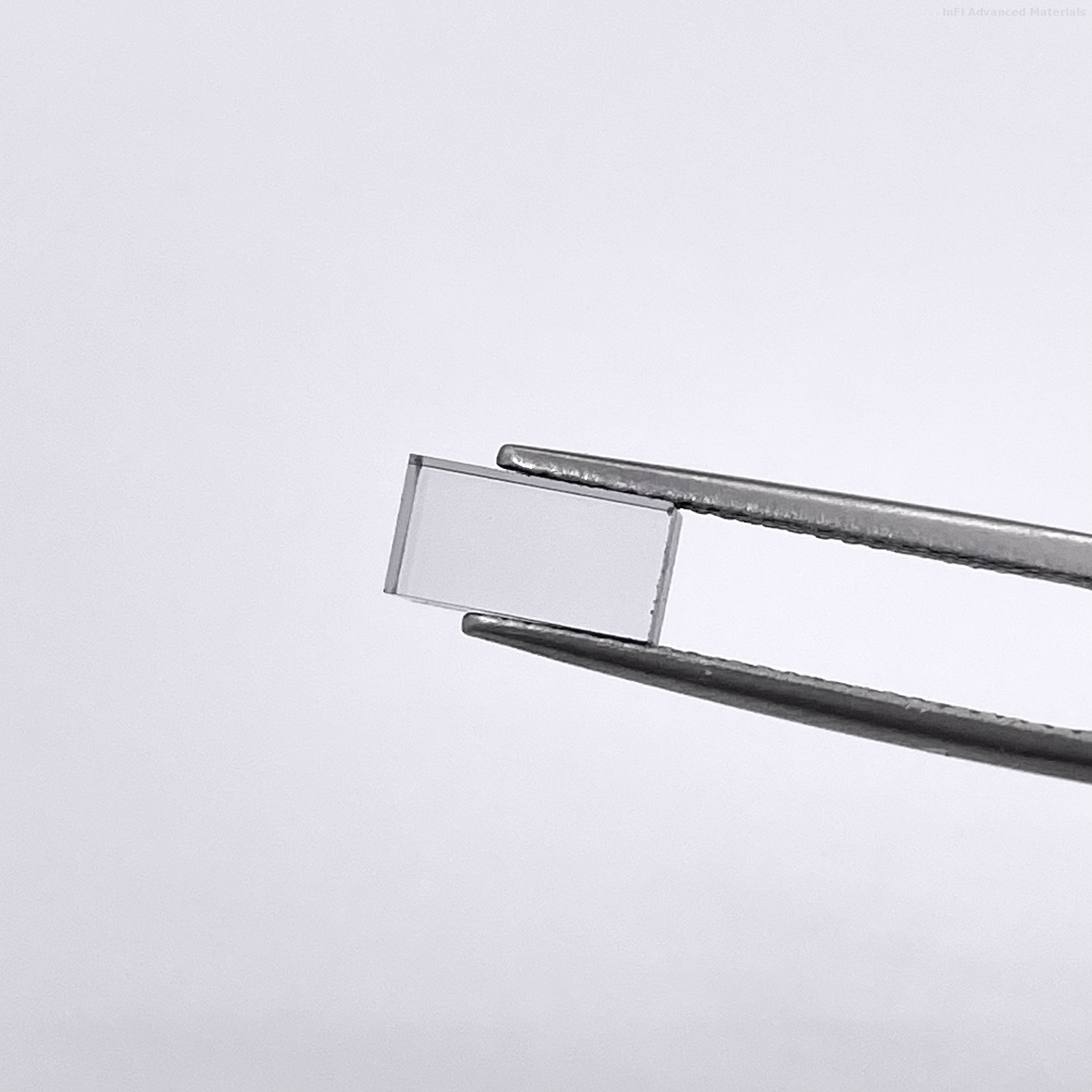

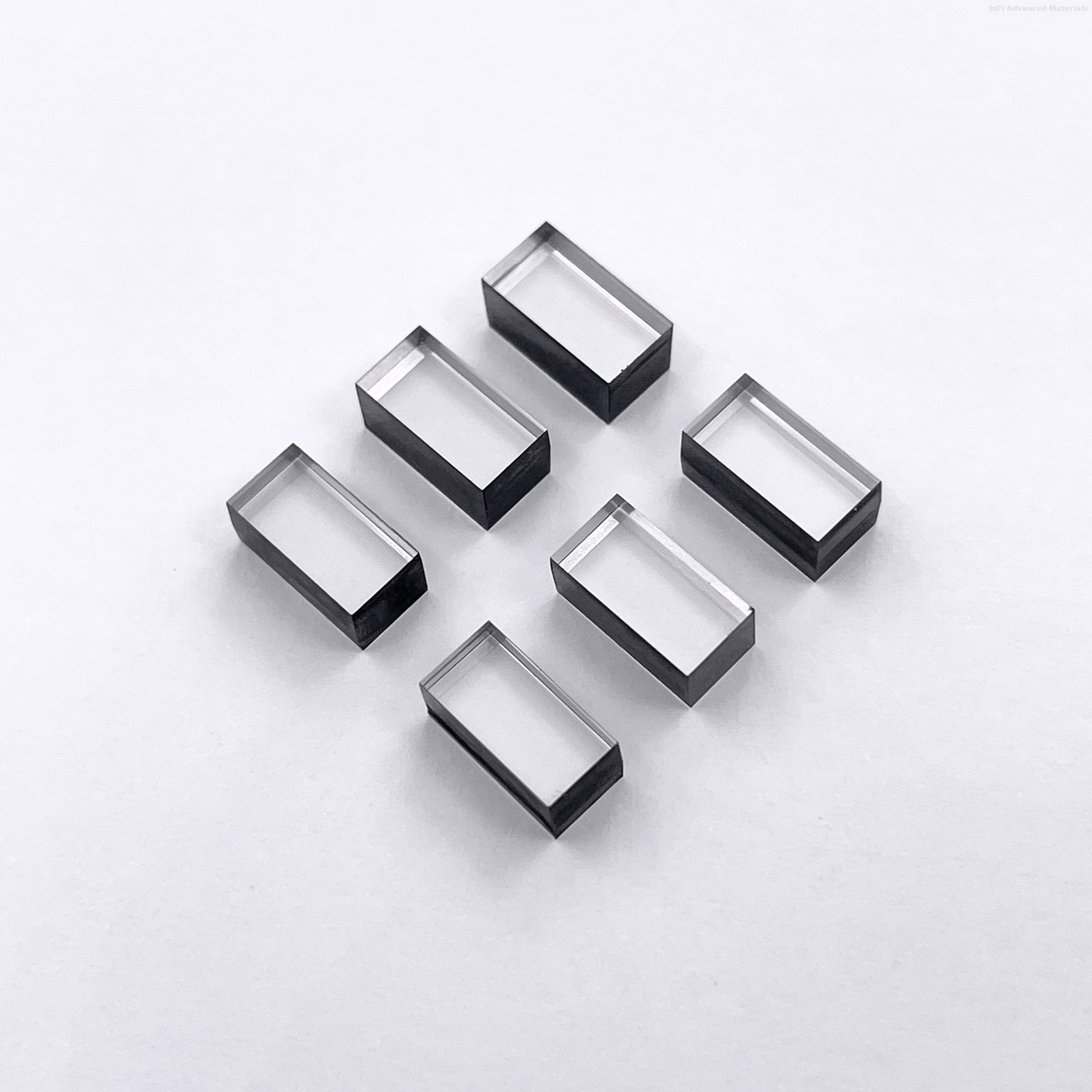

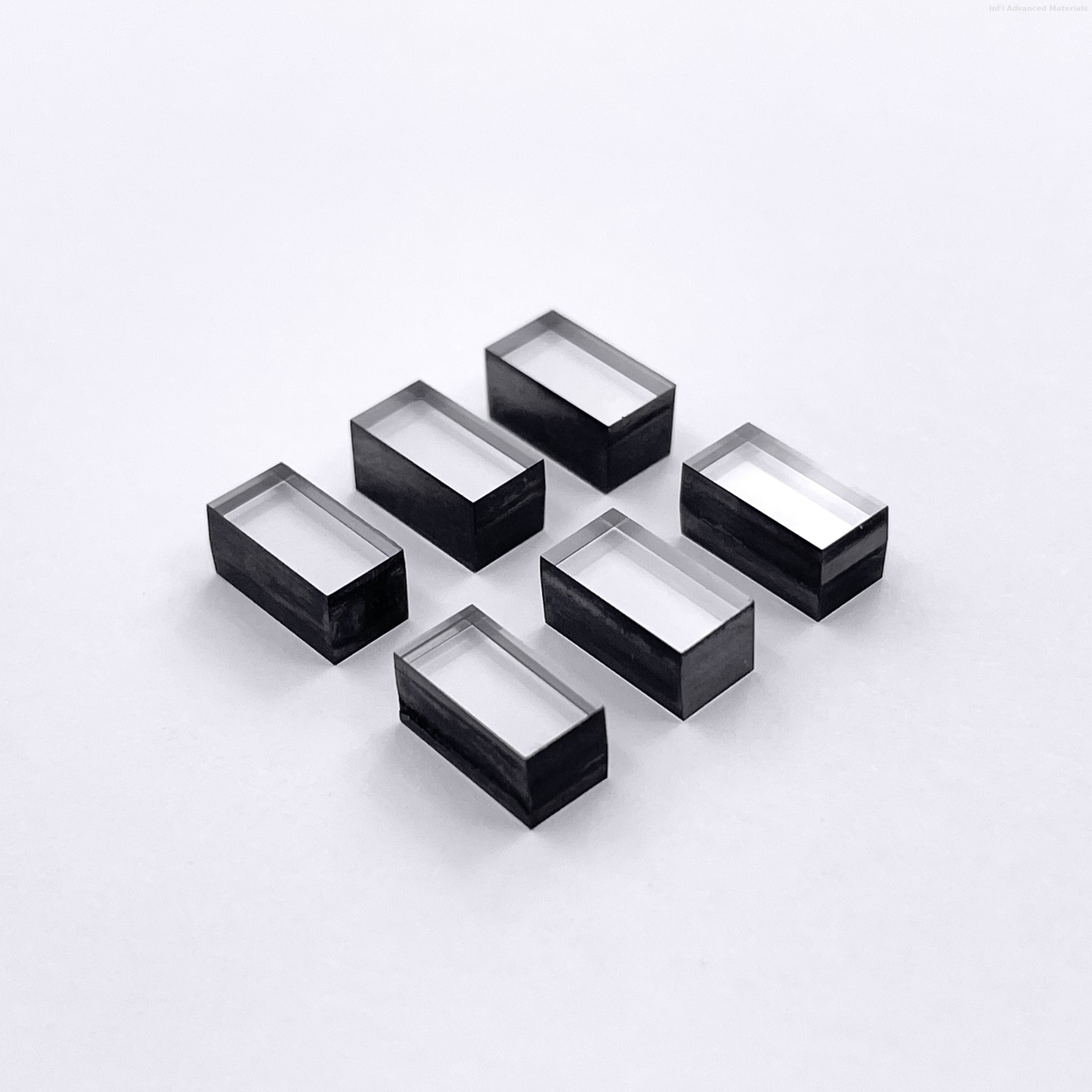

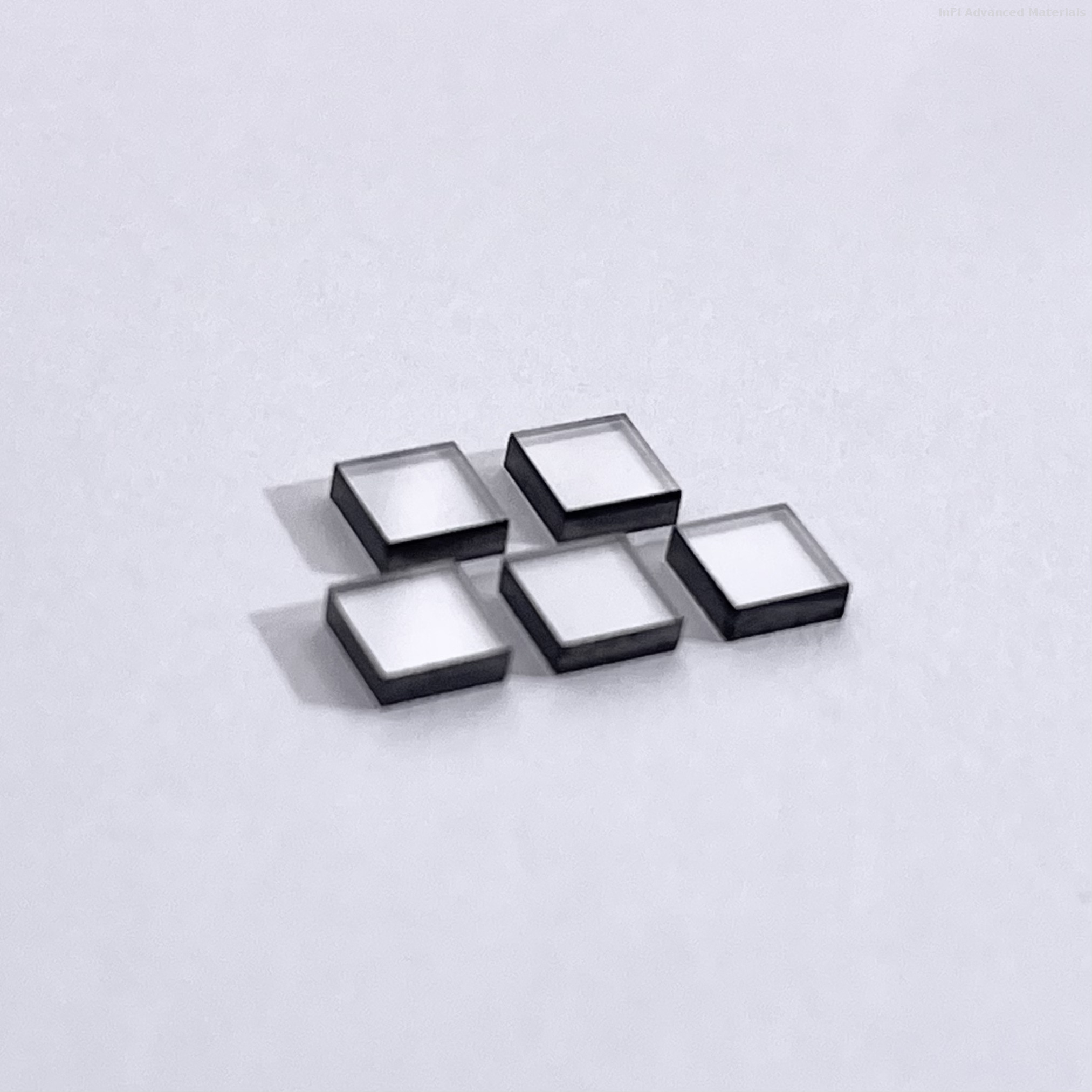

Product image:
Packing and shipping:
Package: small sealed plastic bag and carton(strong and safe package) Delivery: usually 3-7 working days after the payment confirmation
Transportation: DHL, TNT, Fedex, UPS or as per your request.
