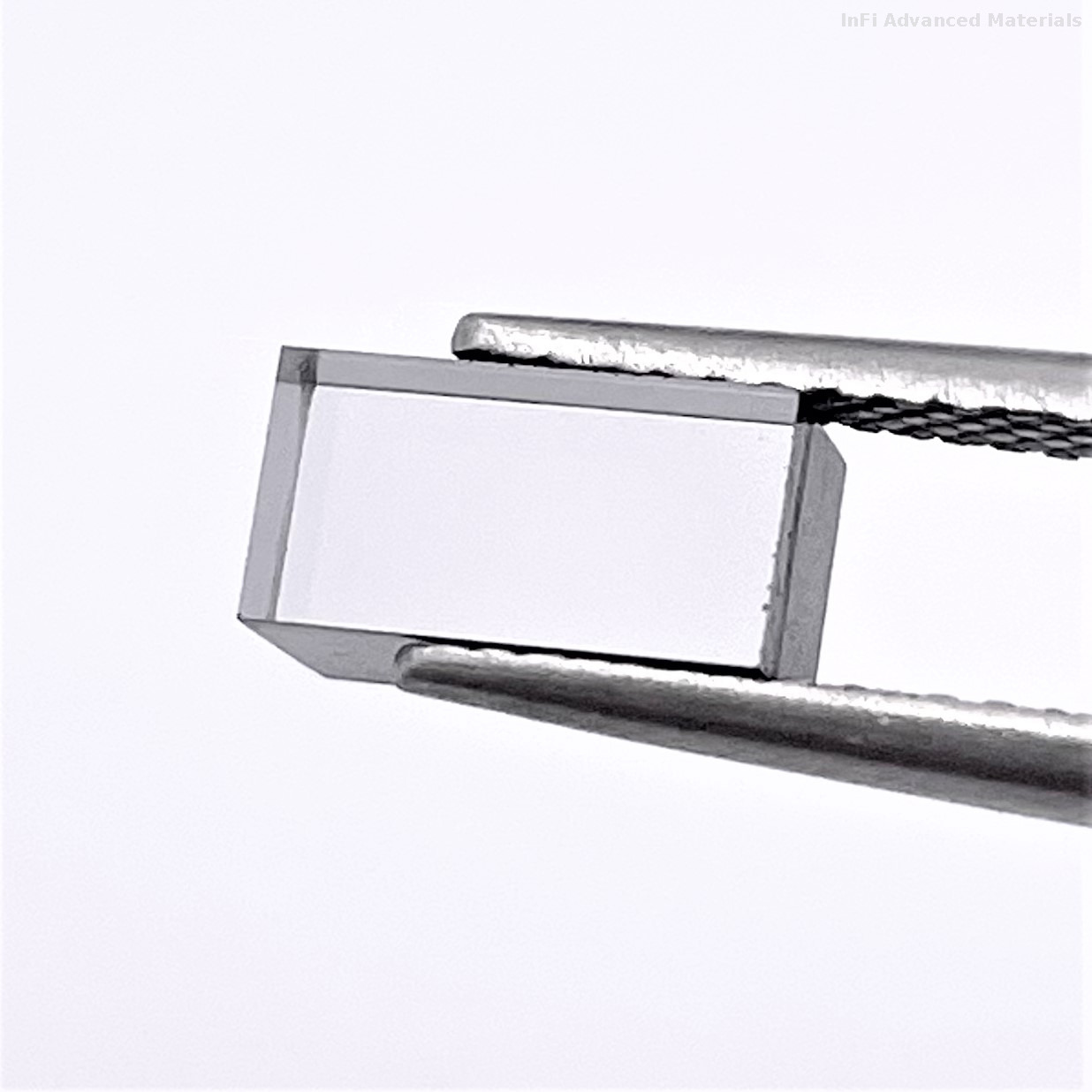

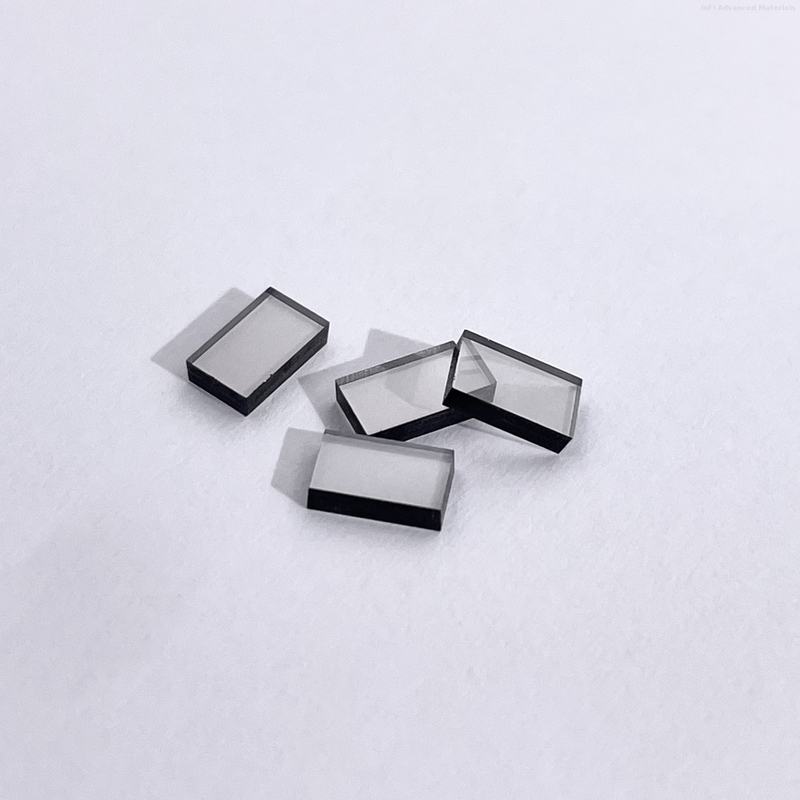

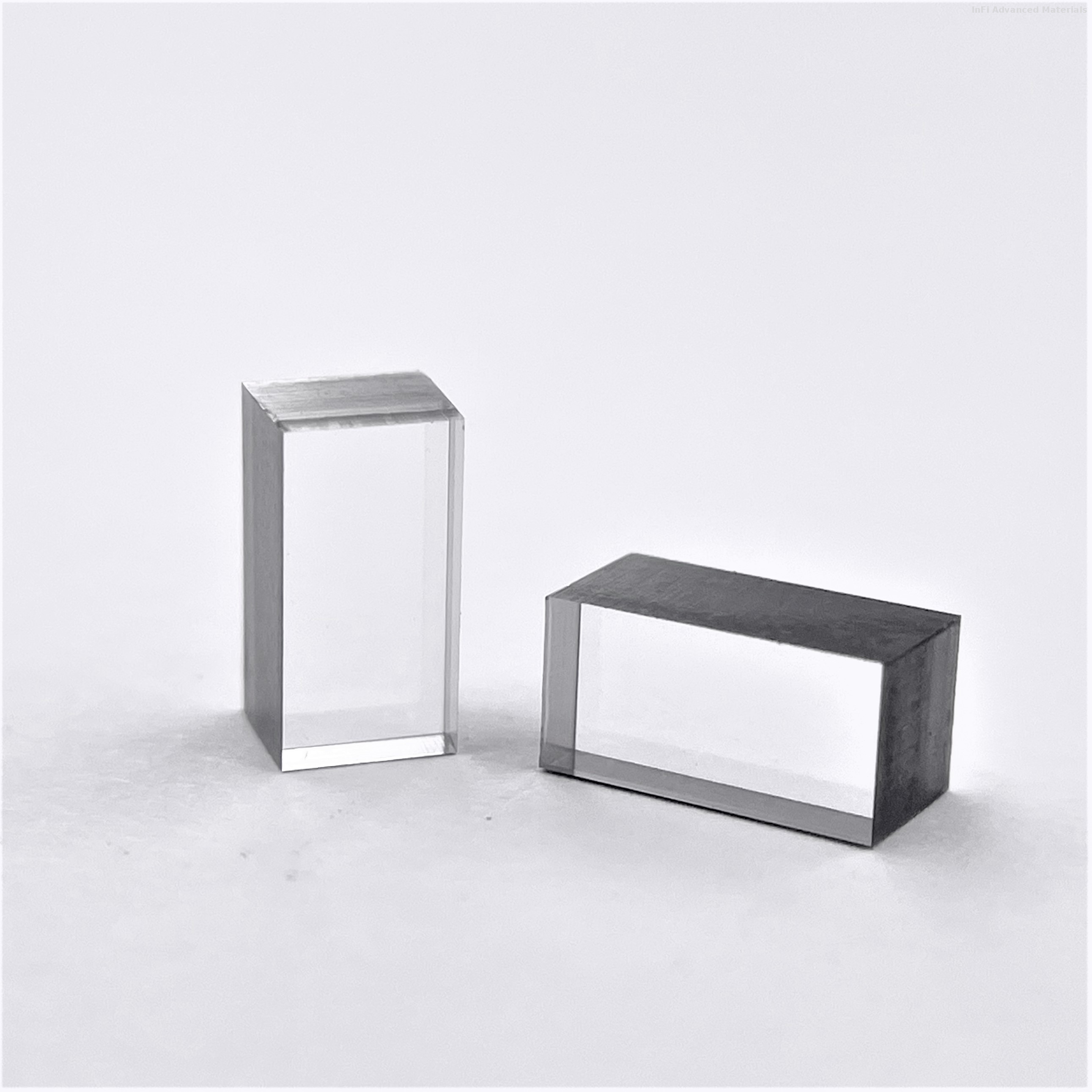

Cubes/Rectangles
INFI
Single crystal CVD has high hardness, good wear resistance, high strength, high elastic modulus, good thermal conductivity, low friction coefficient, good adhesion resistance, and excellent corrosion resistance and chemical stability, meeting the requirements of precision and ultra precision cutting tool materials.
Application of mechanical grade CVD:
Milling amd cutting tools
Wire drawing machine dies
Surgical diamond blades, ophthalmic and neurosurgical scalpels, ultra-thin biological slicers, etc
Diamond dressing tool
Water jet nozzle orifices
| Available size | 2~20mm |
| Available thickness | 0.2mm - 3mm |
| Lateral tolerance | +0.15,-0mm |
| Thickness tolerance | +0.1,-0.05mm |
| Face orientation | {100}> or {110} |
| Crystallographic Orientation(Miscut) | ±3° |
| Surface finish | Polished,Ra<10nm |
| Edges | Laser Cut |
| Laser Kerf | <3° |
The length, width, thickness, shape, and crystal orientation can all be customized.
Common orientation:
Common Sizes:
| Product Size | Length | Width | Thickess |
| L303010 | 3.0 | 3.0 | 1.0 |
| L403010 | 4.0 | 3.0 | 1.0 |
| L503010 | 5.0 | 3.0 | 1.0 |
| L603010 | 6.0 | 3.0 | 1.0 |
| L703010 | 7.0 | 3.0 | 1.0 |
| L803010 | 8.0 | 3.0 | 1.0 |
| L903010 | 9.0 | 3.0 | 1.0 |
| L1003010 | 10.0 | 3.0 | 1.0 |
| L1103010 | 11.0 | 3.0 | 1.0 |
| L1203010 | 12.0 | 3.0 | 1.0 |
| L1303010 | 13.0 | 3.0 | 1.0 |
| L1403010 | 14.0 | 3.0 | 1.0 |
| L1503010 | 15.0 | 3.0 | 1.0 |
The largest length can be 20mm ,
The largest width can be 7mm,
Availabe thickness: 0.1mm, 0.2mm, 0.3mm, 0.4mm, 0.5mm, 0.6mm, 0.7mm, 0.8mm,0.9mm,1.2m, 1.5mm, 1.7mm, 2.0mm
