CVD
INFI
| Refractive Index (1064nm) | 2.392 |
| Refractive Index (600nm) | 2.415 |
| Transmission (1064nm) | ＞68% |
| Transmission (8μm-25μm) | ＞70% |
| Thermal Conductivity | ＞2000 W/mK |
| Crystallographic Orientation | 100 110 111 |
| Miscut for Main Face Orientation | ±3° |

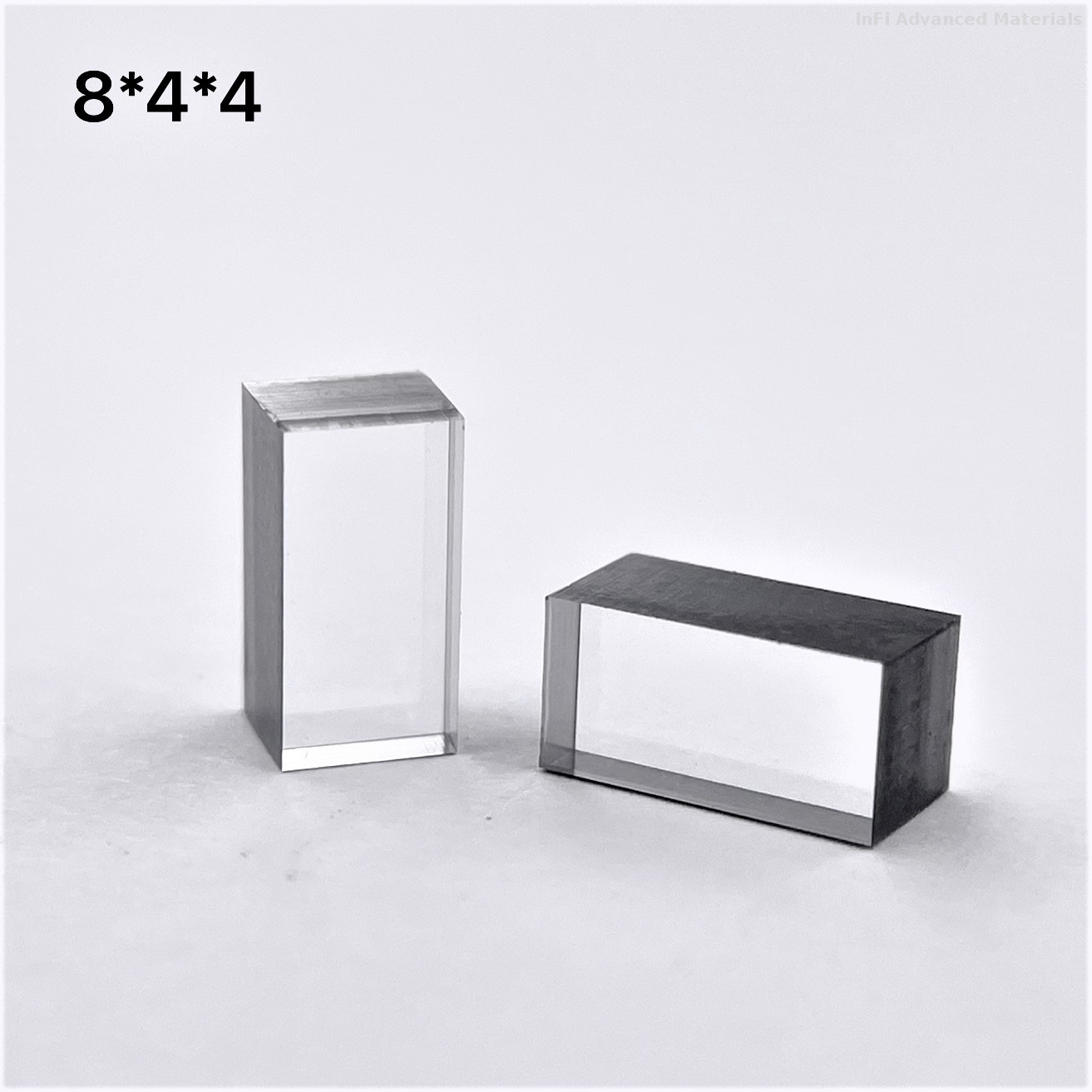

| Common Product Size | 2mm×2mm×6mm 2mm×2mm×7mm 4mm×4mm×7mm |
| Transverse Tolerance | ±0.05mm |
| Thickness Tolerance | ±0.1mm |
| Parallelism | ＜2′ |
| Surface Roughness | ＜10nm |
| Edge Cutting | Laser Cutting |

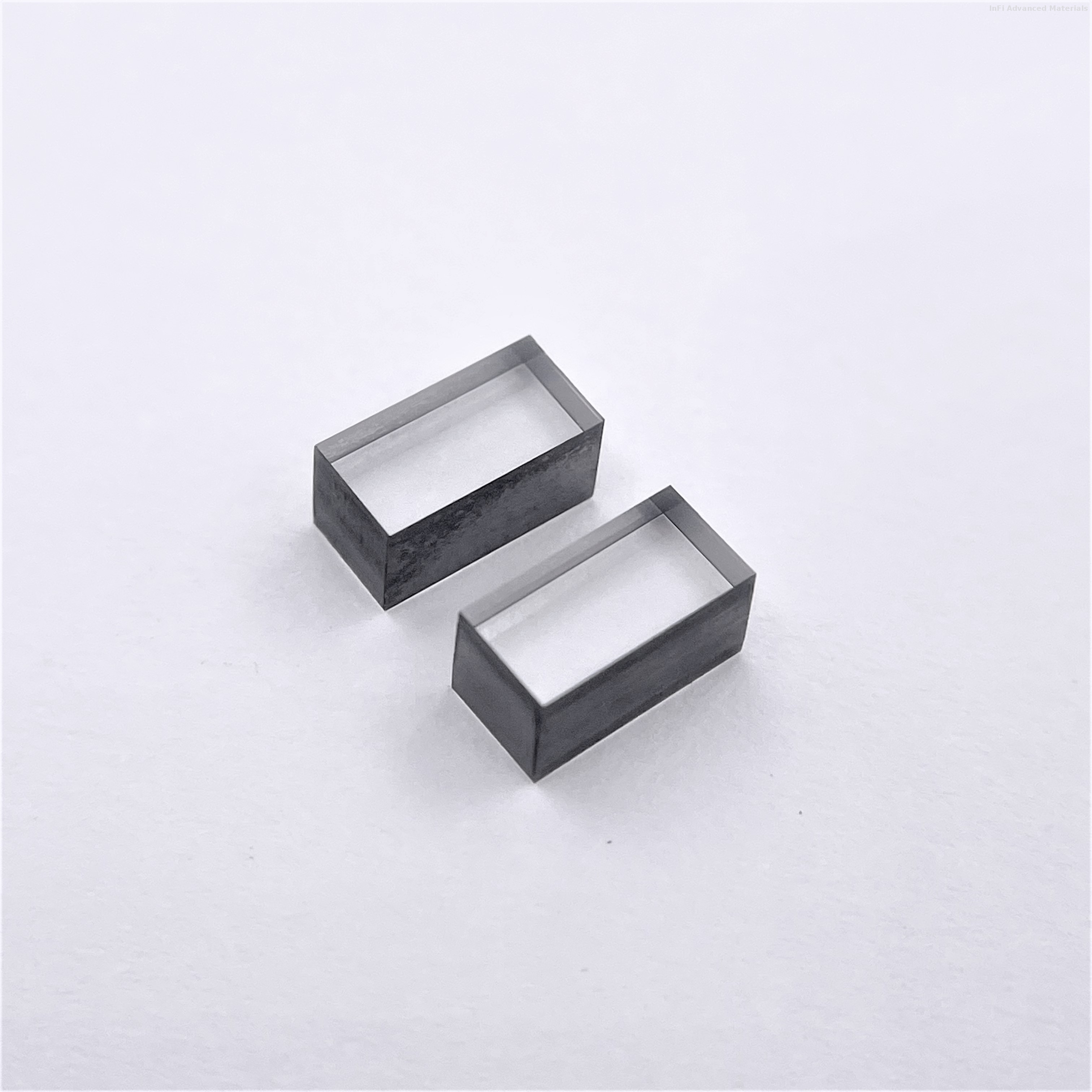

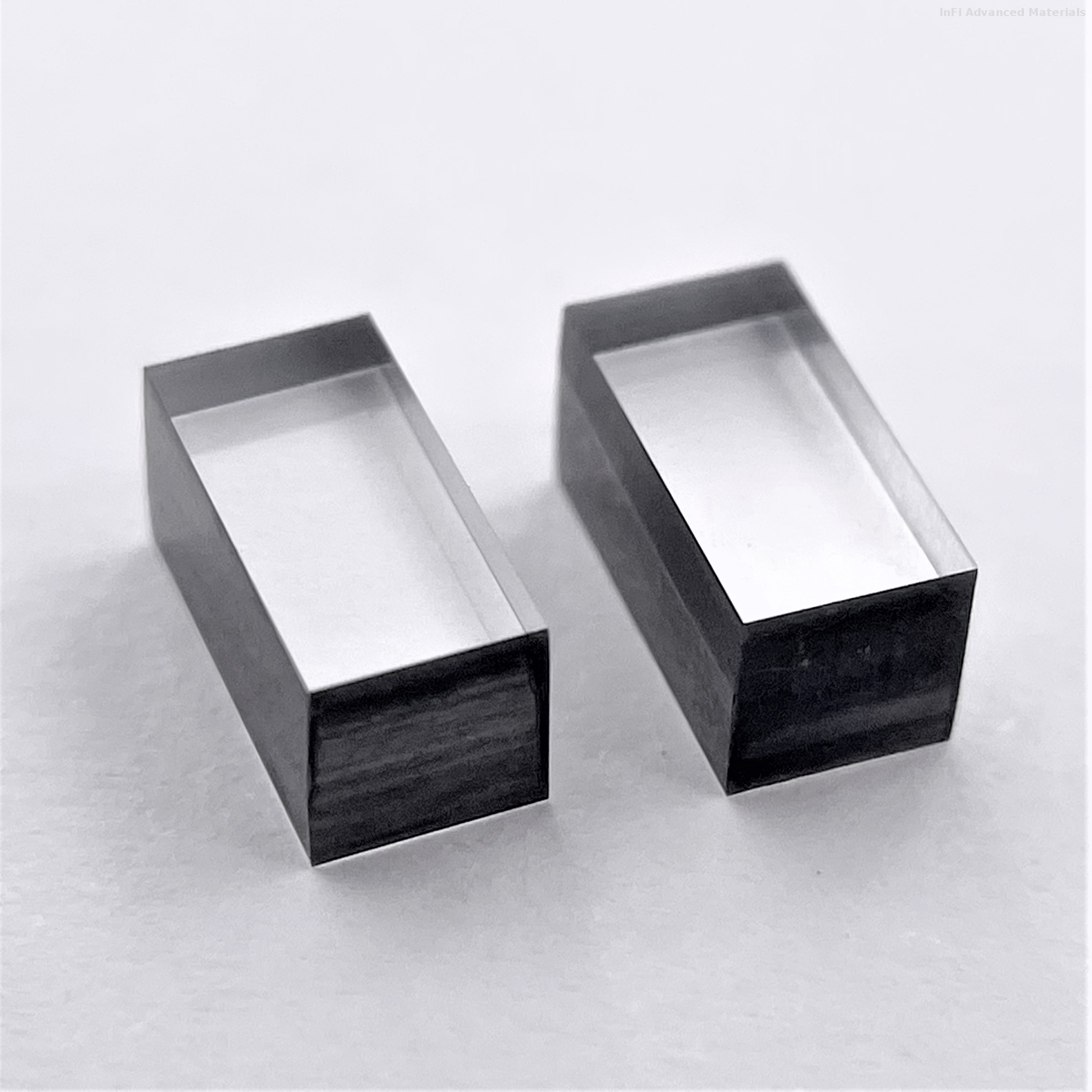

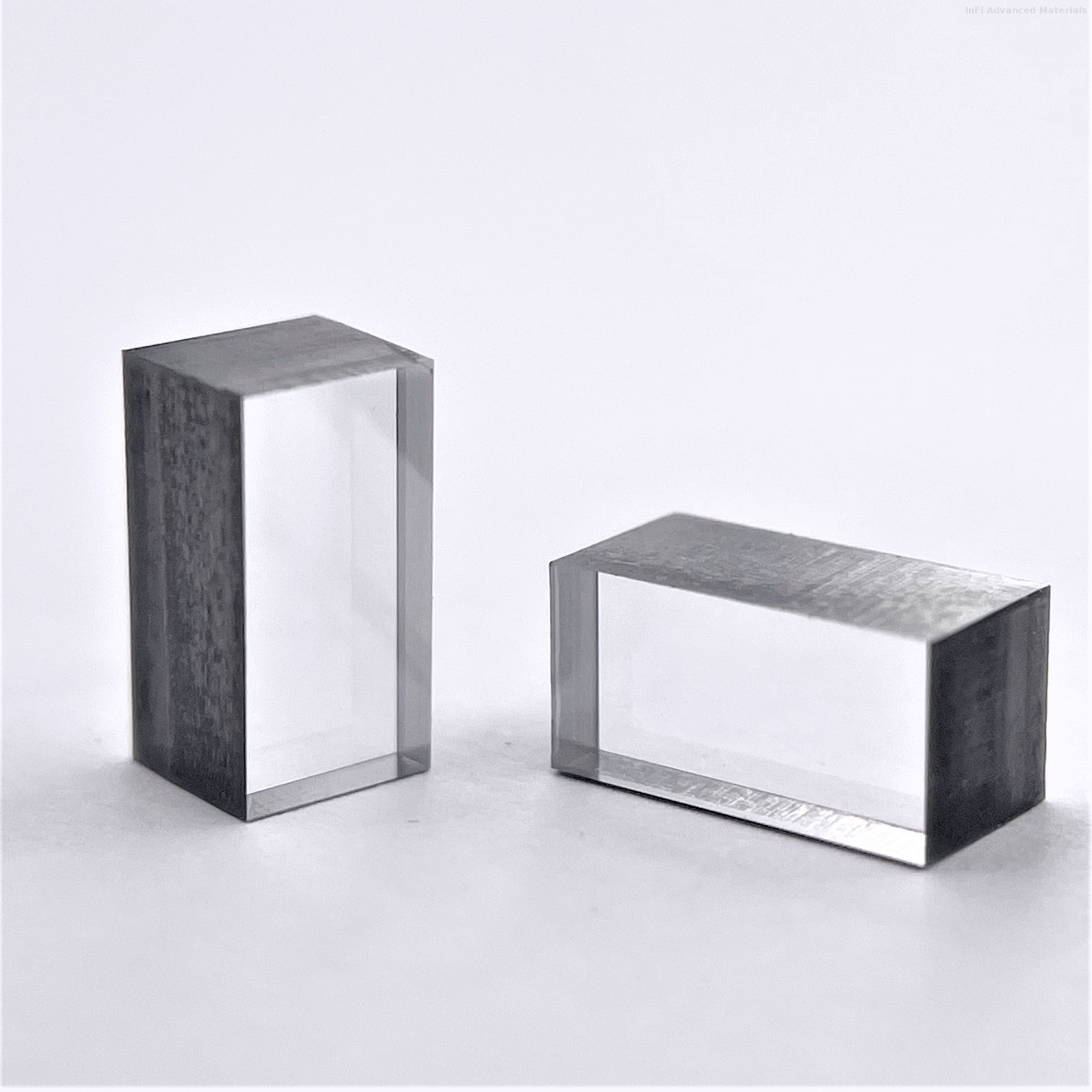

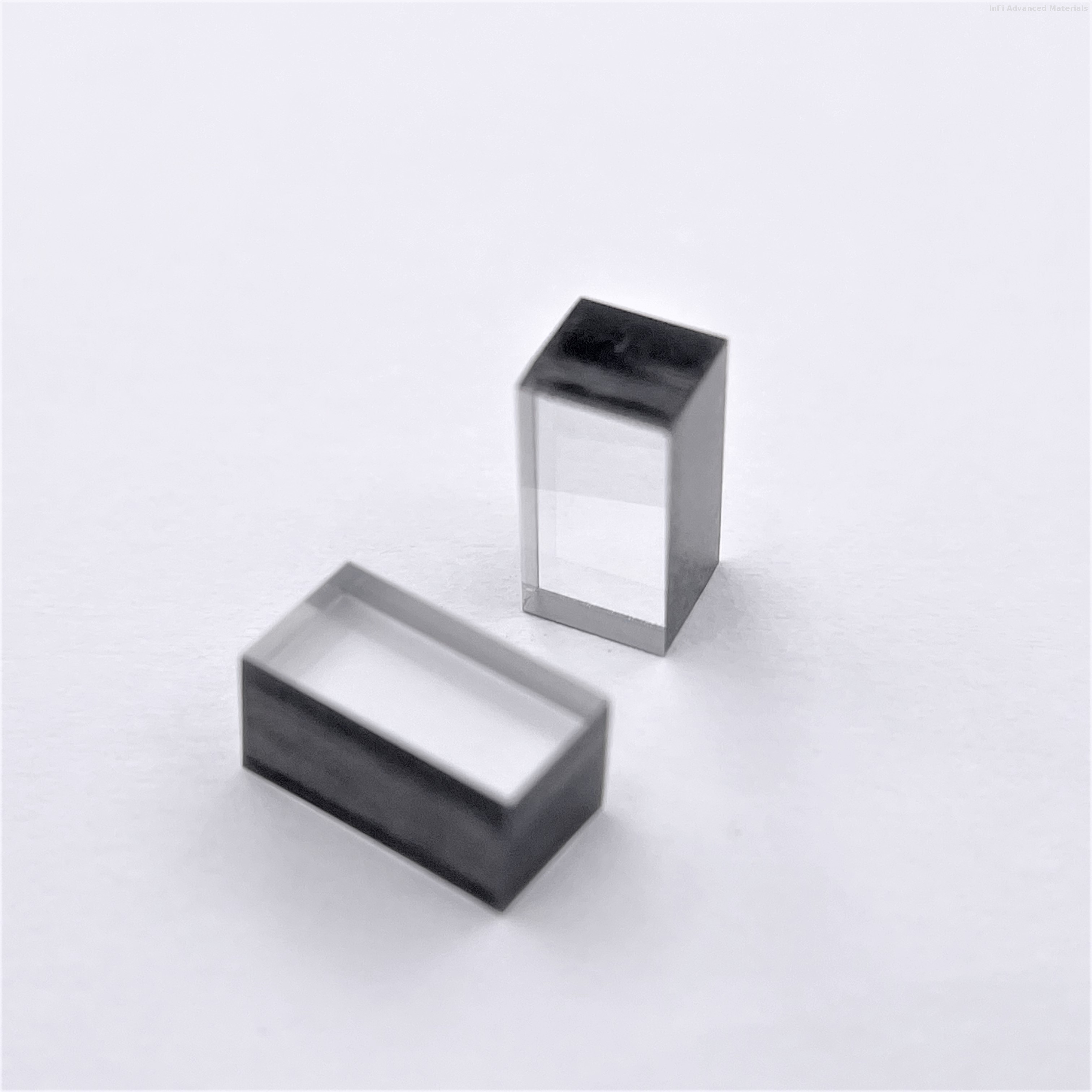

Optical-Grade Single Crystal CVD Diamond: Superior Light Transmission
CVD-grown diamond achieves unmatched optical performance with the broadest transmission spectrum among solids – spanning 225 nm (UV) to 25 μm (IR) excluding 1.8-2.5 μm – plus exceptional microwave transparency. Its unique fusion of radiation resistance, extreme hardness, thermal conductivity, chemical inertness, and ultra-low expansion establishes it as the premier infrared optical window solution.
Refractive Index: ~2.4 enabling high-efficiency transmission across 1-30 μm mid-IR bands
Surface Precision: <50 nm roughness for minimal light scattering
Dimensional Accuracy: Maximum 0.2 mm tolerance
Triangular Prism Optimization: Ideal for infrared radiation measurement systems
Laser Systems: CO₂ lasers, disc lasers, Raman lasers
Long-Wave IR Detection: 8-14 μm imaging sensors
Spectroscopic Analysis: Precision wavelength measurement
RF Power Systems: Gyrotrons and high-power generators
Advanced Optics: Miniaturized diamond lenses
Engineering Advantages
Minimal Optical Scatter: Maintains clarity in demanding IR environments
Hazard Resistance: Withstands corrosive/abrasive conditions
Geometric Flexibility: Enables compact, high-strength optical designs
Material Innovation: Cutting-edge shaping techniques solve complex optical challenges
