Harness the Power of Boron Doped Diamond for Advanced Wastewater Treatment
Product Structure

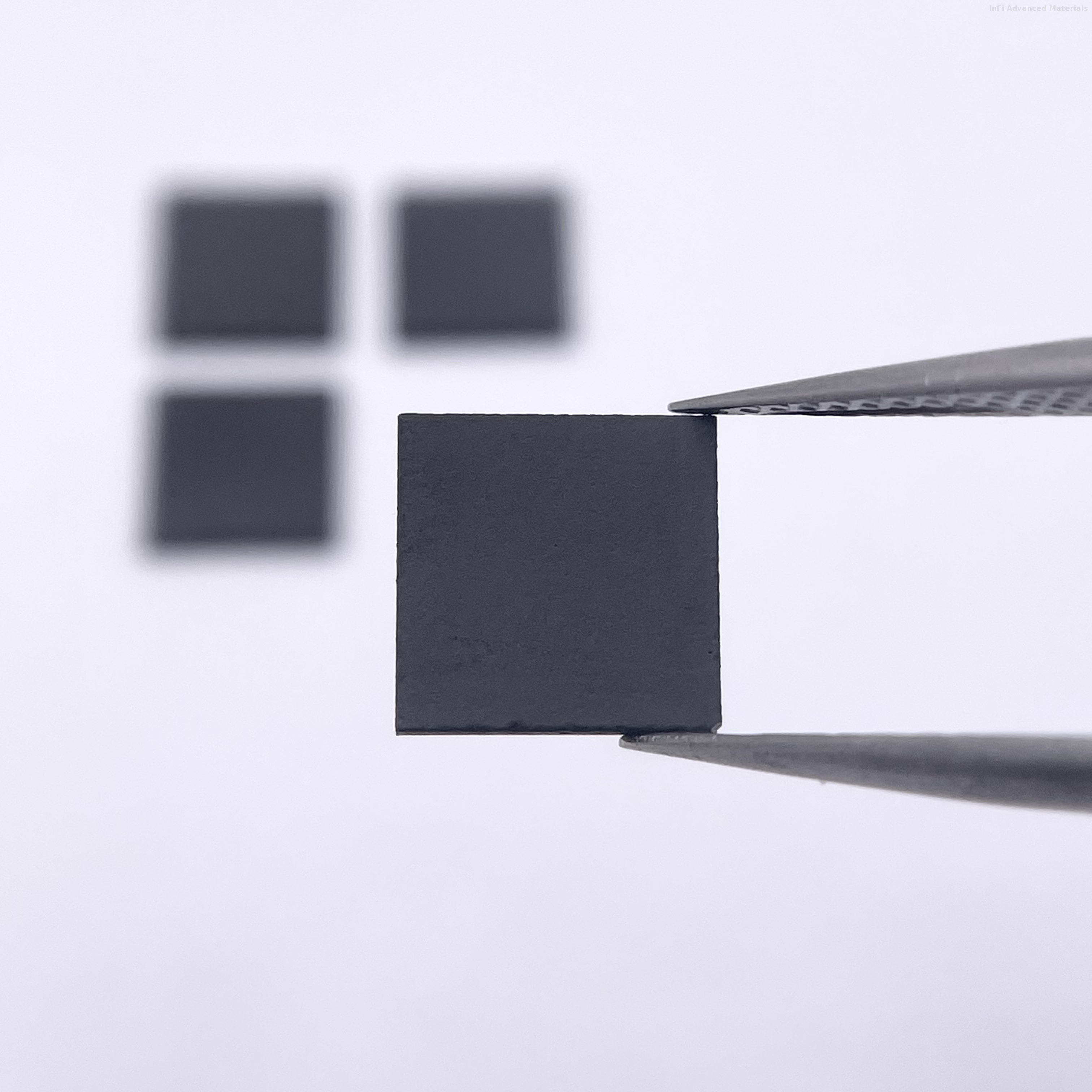

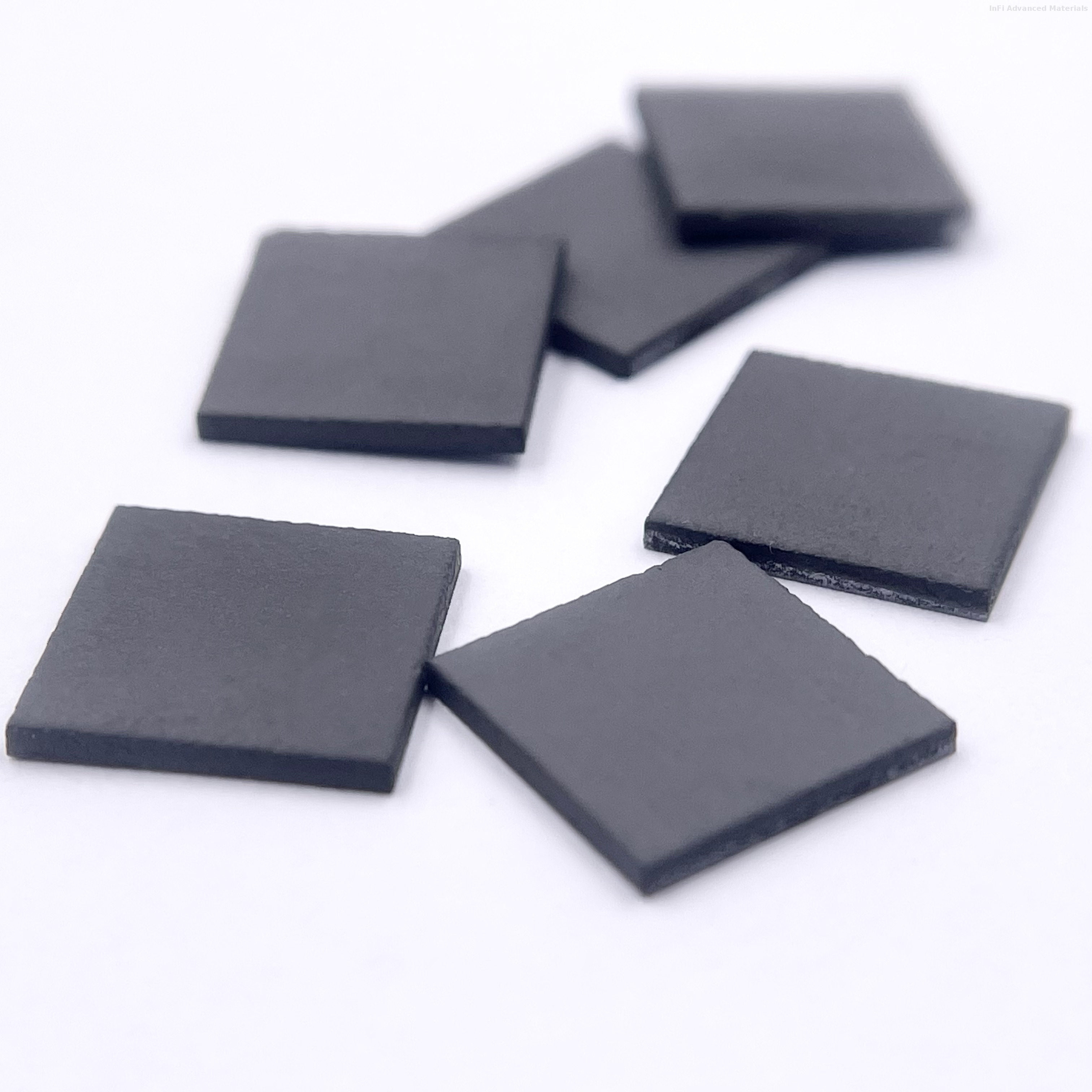

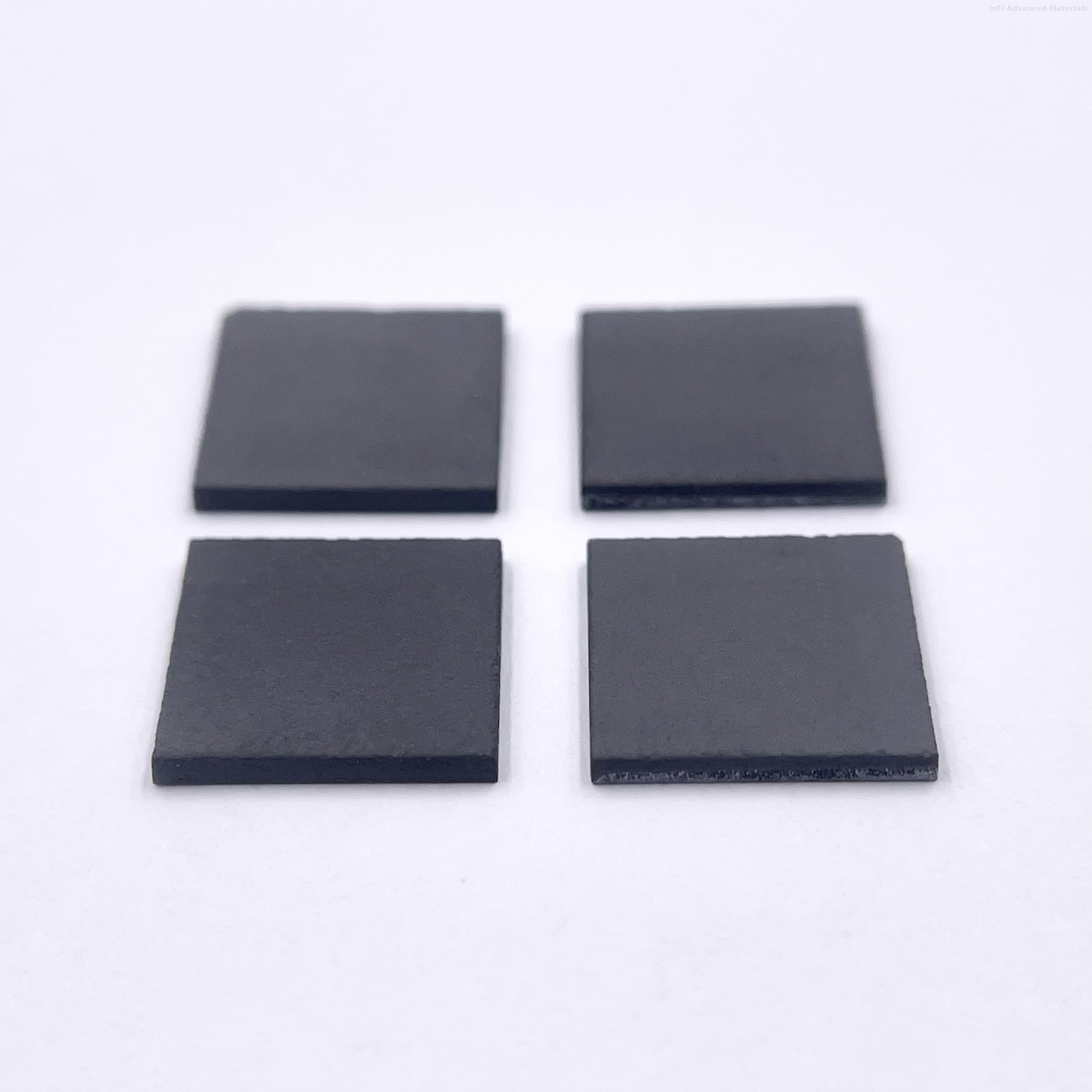

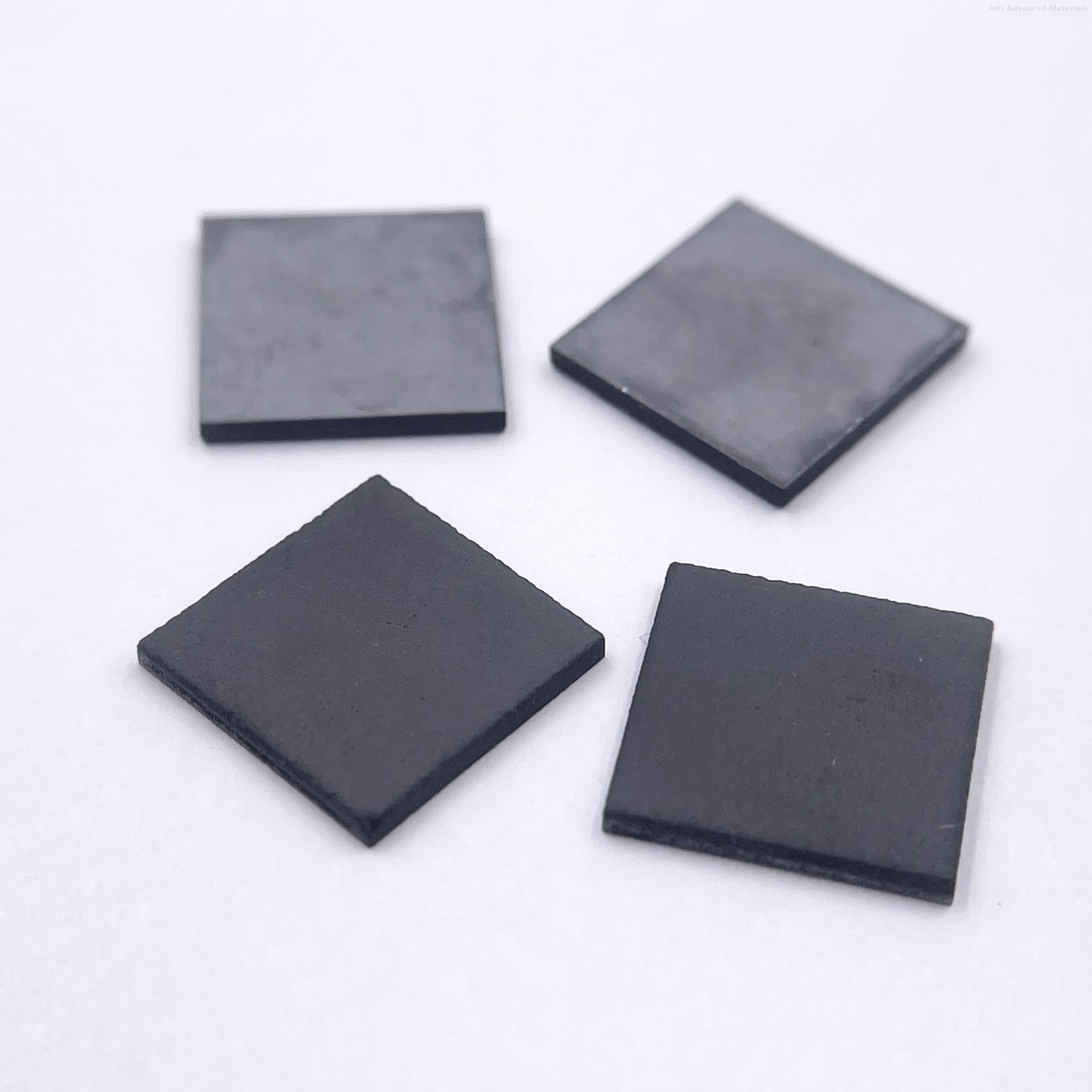

Take a close look at this electrode. The black layer you see is boron-doped diamond — this is the active working surface that drives the electrochemical reaction. The silver layer underneath is high-purity single-crystal silicon, which serves as the conductive substrate and provides mechanical support. This two-layer design delivers exceptional performance while maintaining cost-effectiveness for industrial applications.
Why Boron Doped Diamond Excels
Boron Doped Diamond is widely recognized as one of the most efficient electrode materials available today. When
boron atoms are introduced into the diamond lattice during chemical vapor deposition (CVD), the material transforms from an insulator into a highly conductive electrode while retaining all of diamond's extraordinary properties.
Key advantages of our BDD electrode include:
Extremely wide electrochemical window – significantly broader than conventional electrode materials, enabling the generation of powerful oxidizing species
Exceptionally low background current – providing high sensitivity and clean electrochemical signals
Superior chemical and dimensional stability – resistant to corrosion even in highly acidic or alkaline environments
Outstanding durability – the diamond layer maintains its integrity over prolonged use, with no peeling or degradation
Excellent corrosion resistance – outlasts conventional electrodes by a significant margin in harsh chemical environments
How It Works
When energized in water, our Boron Doped Diamond electrode generates highly reactive hydroxyl radicals (•OH) directly on its surface. These radicals are among the most powerful oxidants known, capable of completely mineralizing persistent organic pollutants into harmless carbon dioxide and water. Unlike traditional treatment methods, this electrochemical advanced oxidation process creates no secondary pollution and requires no additional chemical dosing.
Applications
Our BDD electrode is ideal for treating challenging industrial wastewaters, including:
Pharmaceutical and chemical manufacturing effluents
Textile dye wastewater
Petrochemical and refinery spent caustic streams
Landfill leachate
High-salinity and high-concentration organic wastewater
Electroplating and industrial process waters
In pilot studies, BDD technology has achieved significant reduction in Chemical Oxygen Demand (COD) for difficult waste streams like refinery spent caustics.
Customization Options
We offer our Boron Doped Diamond electrodes in various sizes and configurations to meet your specific requirements. Whether you need different dimensions, alternative substrates, or specialized doping levels, we can provide a customized solution tailored to your application.
Choose Performance That Lasts
When you choose our Boron Doped Diamond electrode, you're investing in a solution that delivers serious oxidation power with minimal maintenance. The diamond surface resists fouling, the silicon substrate provides stable support, and the result is reliable, long-term performance for your toughest water treatment challenges.
Contact us today to discuss your requirements and discover how our BDD electrode can transform your wastewater treatment process.
