CVD Single Crystal Diamond Blades That Can Be Used for Surgical Blade

Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button

  • Surgical Blades Type

  • INFI

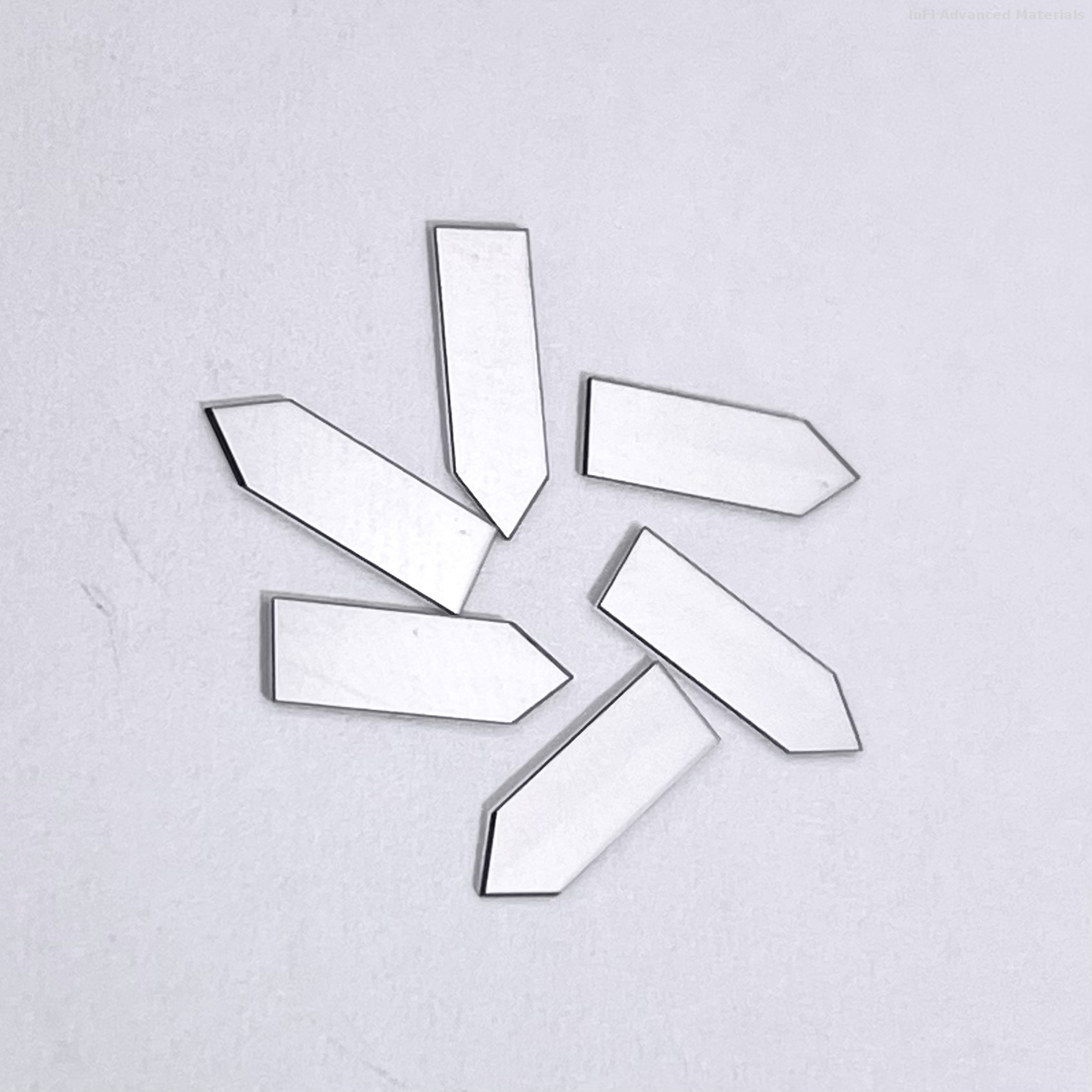

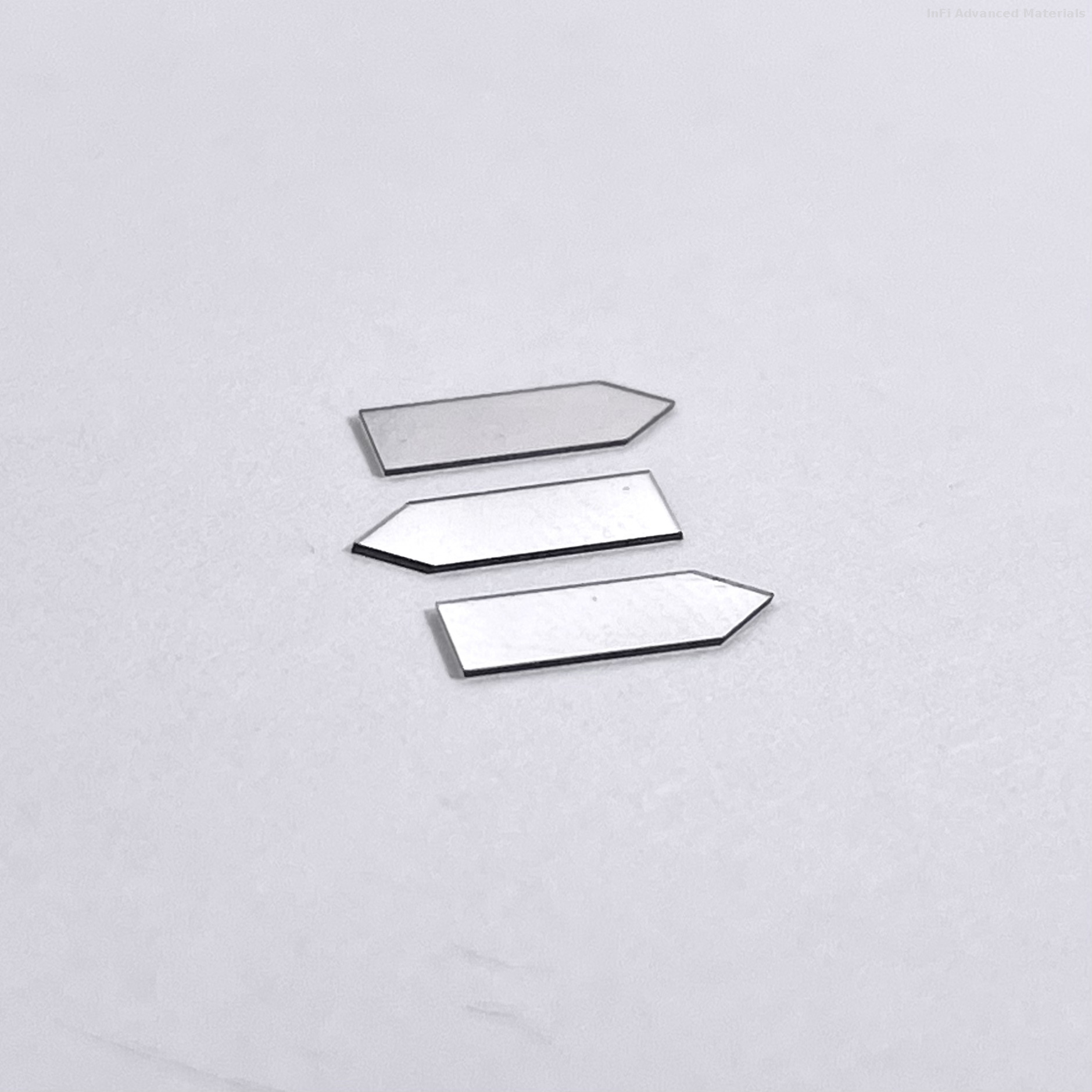

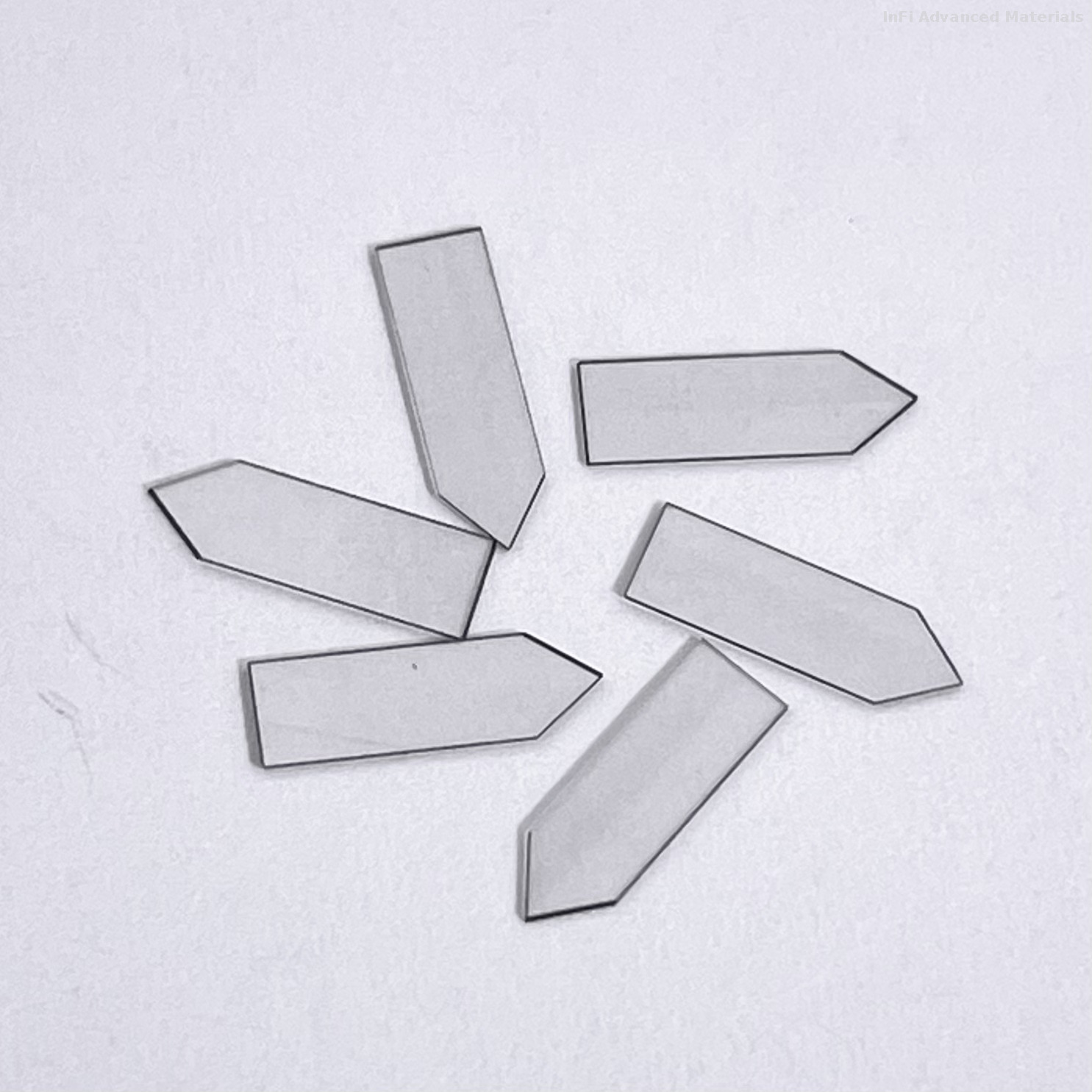

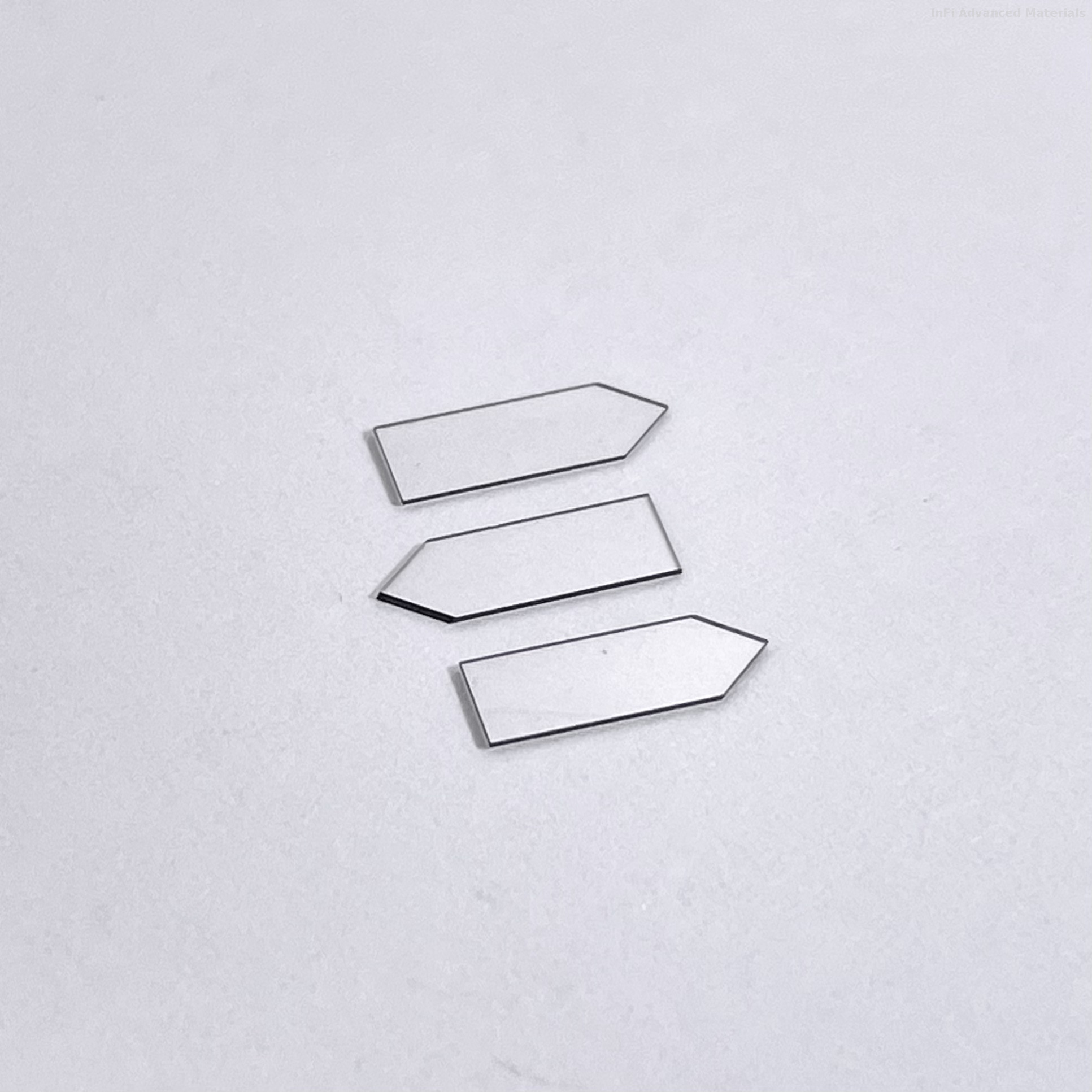

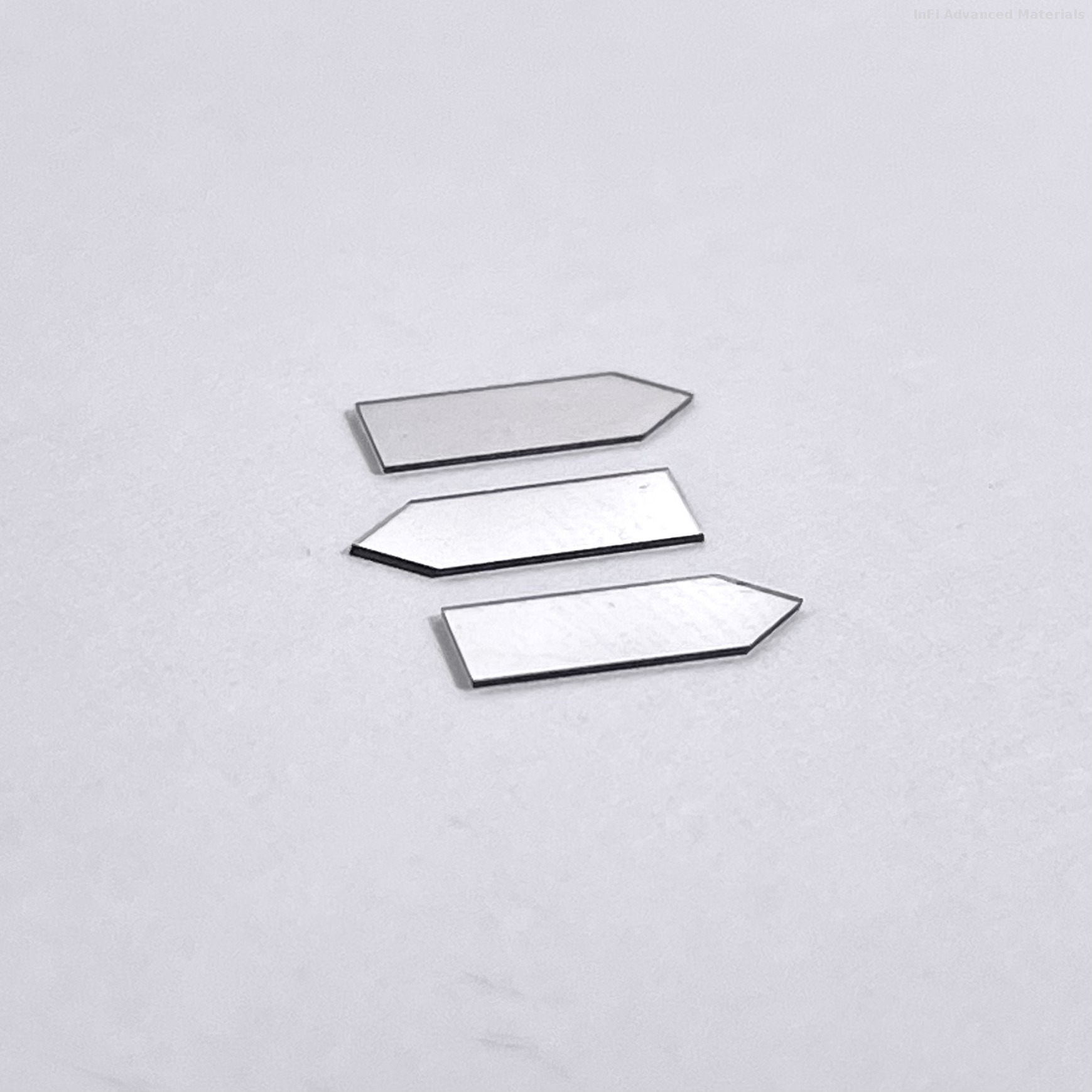

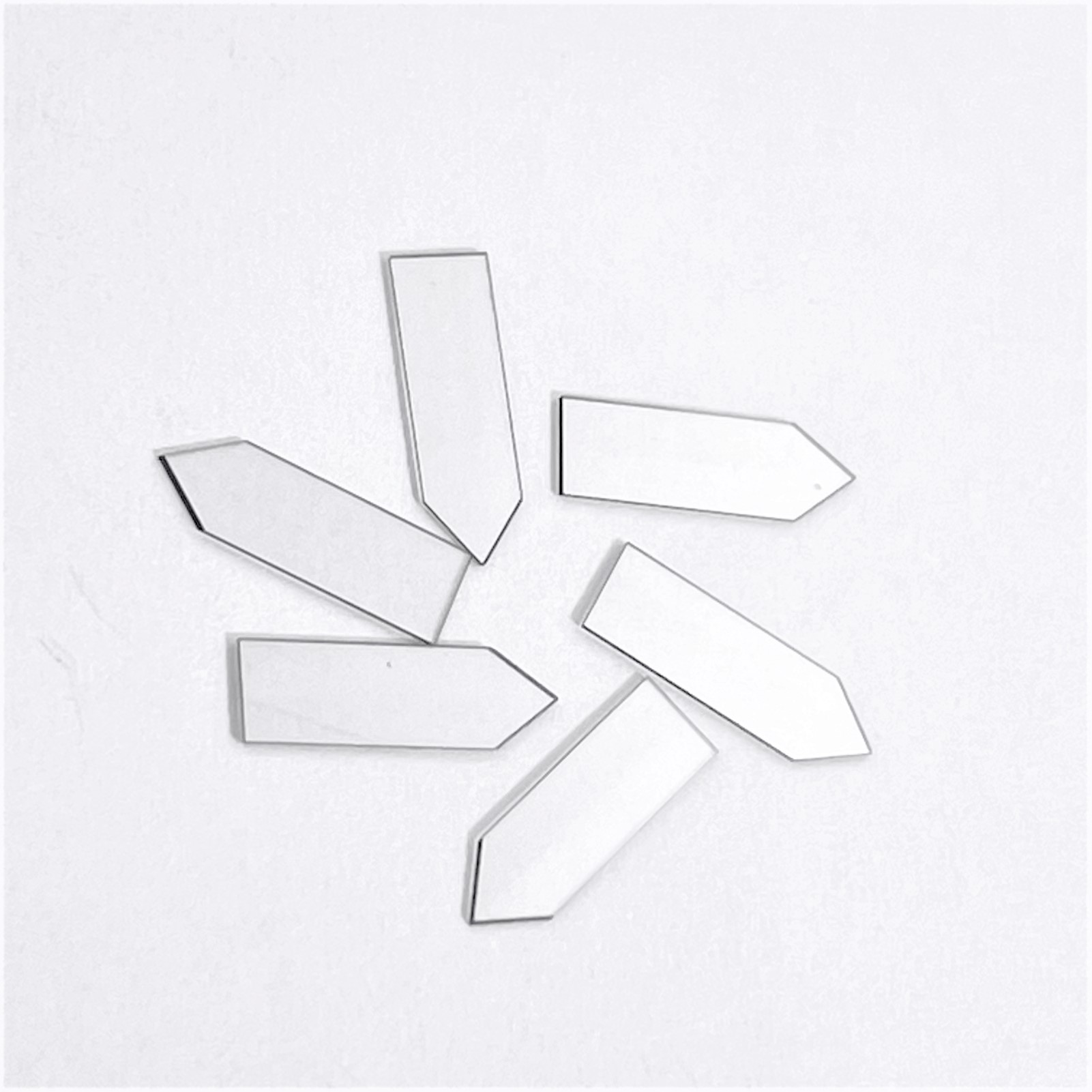

CVD single crystal diamond blades that can be used for scalpels | Surgical Blade Type

Product details:

Product name CVD single crystal diamond blades
Stucture Monodiamond
Appliation can be used for scalpels
Tangent Angle 60° 90° or Customizable
Character synthetic diamond
Quality high quality, standard quality
Thickness Customizable


CVD single crystal diamond blades has high hardness, good wear resistance, high strength, high elastic modulus, good thermal conductivity, low friction coefficient, good adhesion resistance, and excellent corrosion resistance and chemical stability, meeting the requirements of precision and ultra precision cutting tool materials.

Material Science Innovation

  • ·Thermal Stability

  • ·Isotropic Durability

  • ·Sustainable Design


Application of mechanical grade CVD:
√ Surgical diamond blades, ophthalmic and neurosurgical scalpels, ultra-thin biological slicers, etc
   Milling amd cutting tools
   Wire drawing machine dies
   Diamond dressing tool
   Water jet nozzle orifices


Available thickness 0.2mm - 3mm
Lateral tolerance +0.15,-0mm
Thickness tolerance +0.1,-0.05mm
Face orientation {100}> or {110}
Crystallographic Orientation(Miscut) ±3°
Surface finish Polished,Ra<10nm
Edges Laser Cut
Laser Kerf <3°


 Ours Advantages:
1, produced by CVD
2, very competitive price,  welcome to send us inquiry
3, wide application (for cutting and dressing tools etc)
4, more stable and larger production


微信图片_20250312143212微信图片_20250312143209


Paramenters
1.Nitrogen content can be less than 10ppb.
2.Lateral tolerance: -0.1/+0.1mm
3.Thickness tolerance: -0.05/+0.05mm
4.Thermal conductivity can be more than 1800 W/mK
5.Orientation: <110>

Package & Delivery
1.package: small sealed plastic bag and carton(strong and safe package)
2.delivery: usually 3-7 working days after the payment confirmation
3.transportation: DHL, TNT, Fedex, UPS ,or as per customers' request
