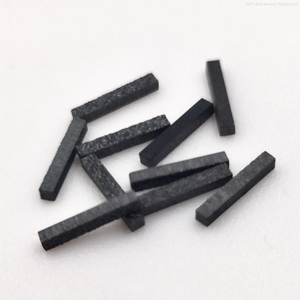

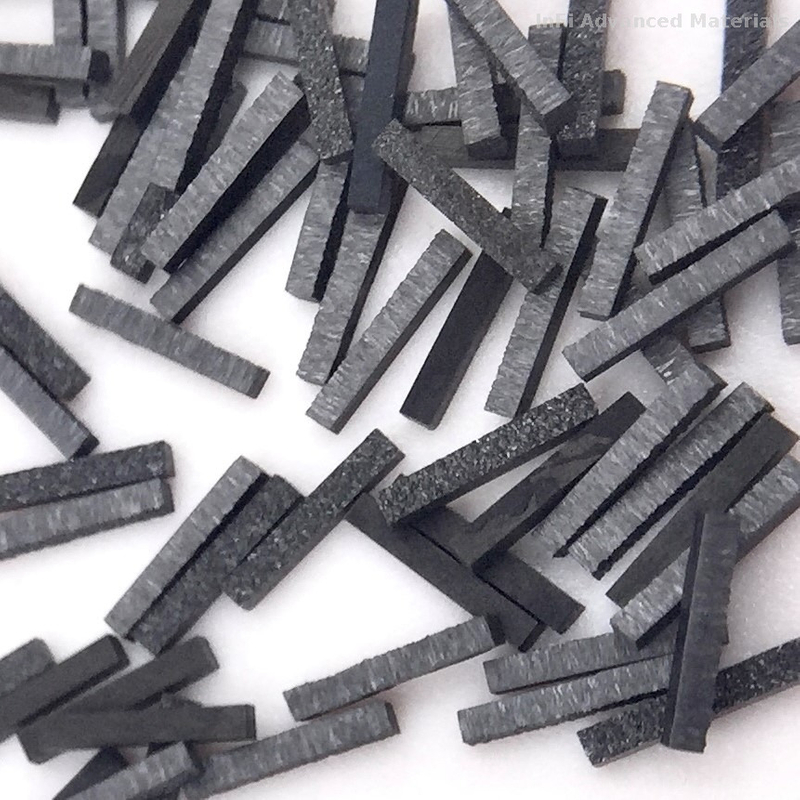

Polycrystalline CVD Diamond Logs | For Multi-Point Dresser Manufacturing
Core Attributes:
Chip-resistant performance, long operational life, and uniform wear properties suitable for high volume rough repairs.
These CVD Polycrystalline logs are specifically developed for producing high-performance bar dressers, providing unmatched stability and durability in rigorous grinding wheel conditioning and precision machining applications. Their primary function is diamond bar dresser fabrication, with widespread industrial use in precision manufacturing and grinding wheel dressing.
Key Advantages:
Capable of complex profile processing and precision grinding
Improves operational efficiency through reduced downtime
Scalable production ensures consistent bulk supply
Physical Characteristics:
Boasts minimal friction coefficient, strong adhesion resistance, remarkable chemical stability and corrosion resistance, coupled with high hardness, exceptional wear resistance, superior strength, elevated elastic modulus and effective thermal conductivity - meeting all precision cutting tool standards.
Application Scope:
Includes but not limited to:
Diamond Dressing Rollers
Diamond Pen Plate Dressing Knives
Pointed Tip Grinding Wheel Dressing Pens
Diamond Flat Tip Dressing Pens
Diamond Strip Dressing Pens
Diamond Multi-point Dressing Pens
Standard Sizes:
3x0.6x0.6 | 3x0.8x0.8
3x1.0x1.0 | 3x1.2x1.2
4x0.4x0.4 | 4x0.6x0.6
4x0.8x0.8 | 4x1.0x1.0
4x1.2x1.2 | 4x1.5x1.5
5x0.6x0.6 | 5x0.8x0.8
5x1.0x1.0 | 5x1.2x1.2
6x0.6x0.6 | 6x0.8x0.8
6x1.0x1.0 | 6x1.2x1.2
Plus other dimensions
Tailored Specifications:
• Maximum width: 7mm
• Maximum length: 20mm
• Thickness options: 0.1mm, 0.2mm, 0.3mm, 0.4mm, 0.5mm, 0.6mm, 0.7mm, 0.8mm, 0.9mm, 1.2mm, 1.5mm, 1.7mm, 2.0mm
As a company advantage product, stable large-quantity long-term supply is maintained.
| Available size | 2~20mm |
| Available thickness | 0.2mm - 3mm |
| Lateral tolerance | +0.15,-0mm |
| Thickness tolerance | +0.1,-0.05mm |
| Edges | Laser Cut |
| Laser Kerf | <3° |
The logs are also available in other materials(CVD/MCD):
