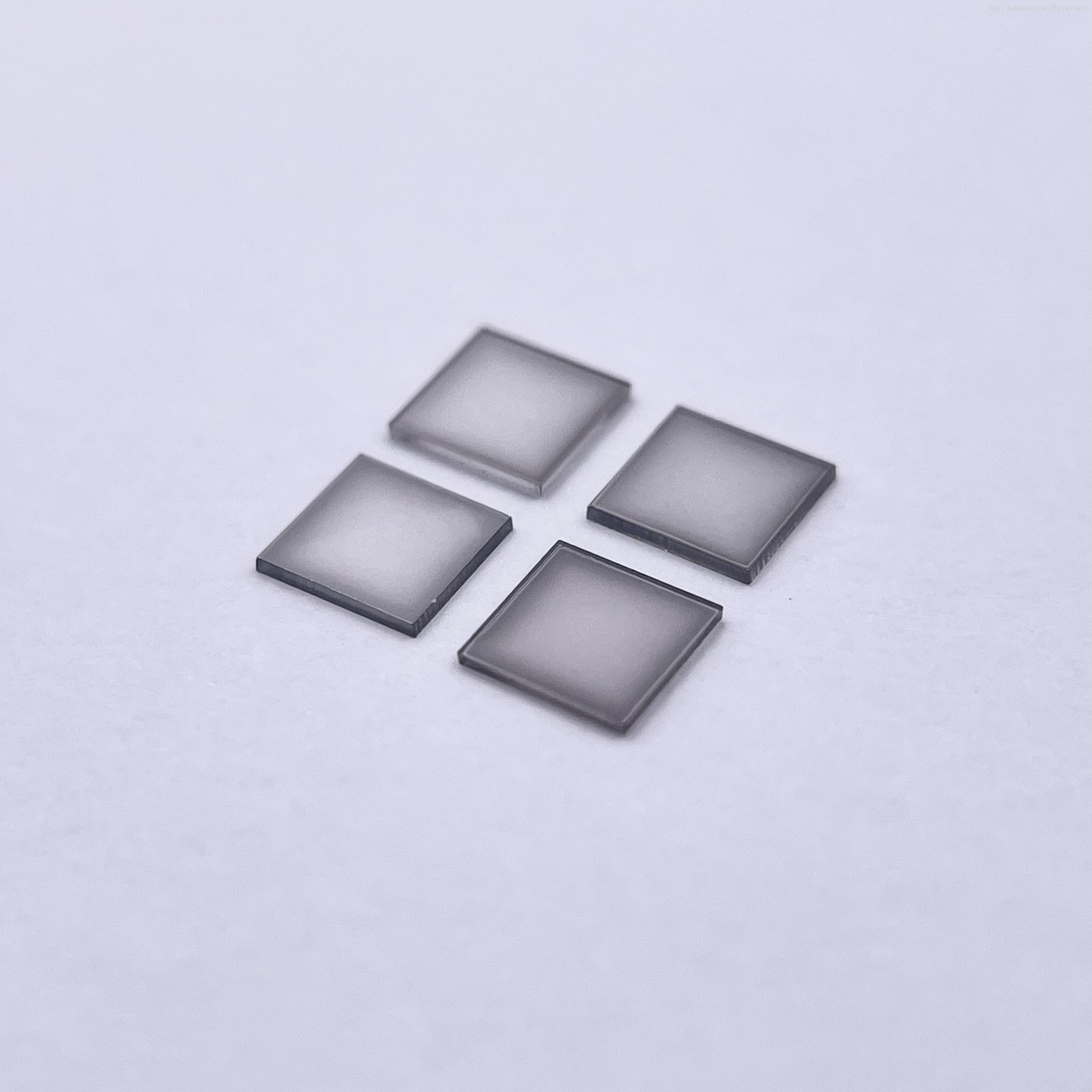

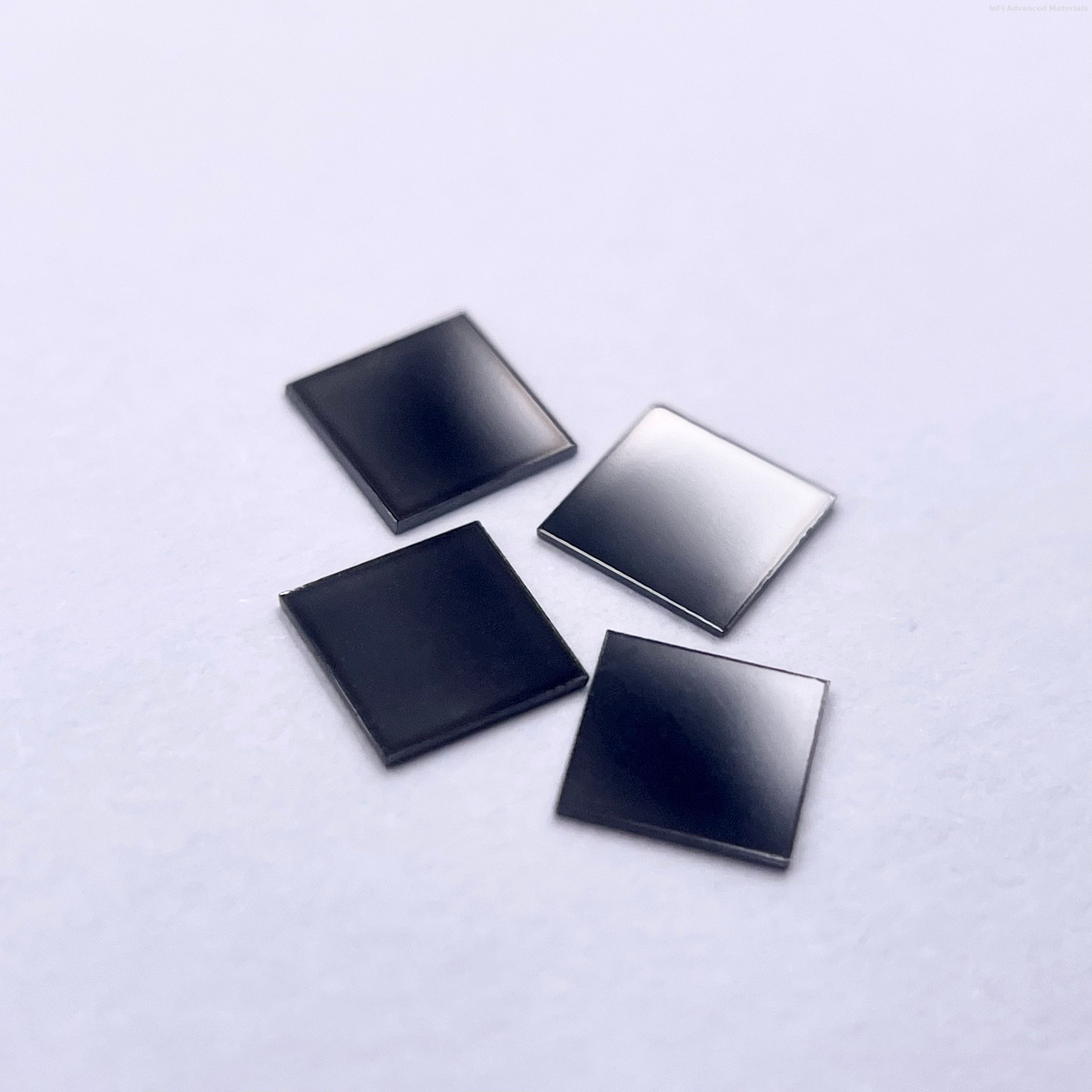

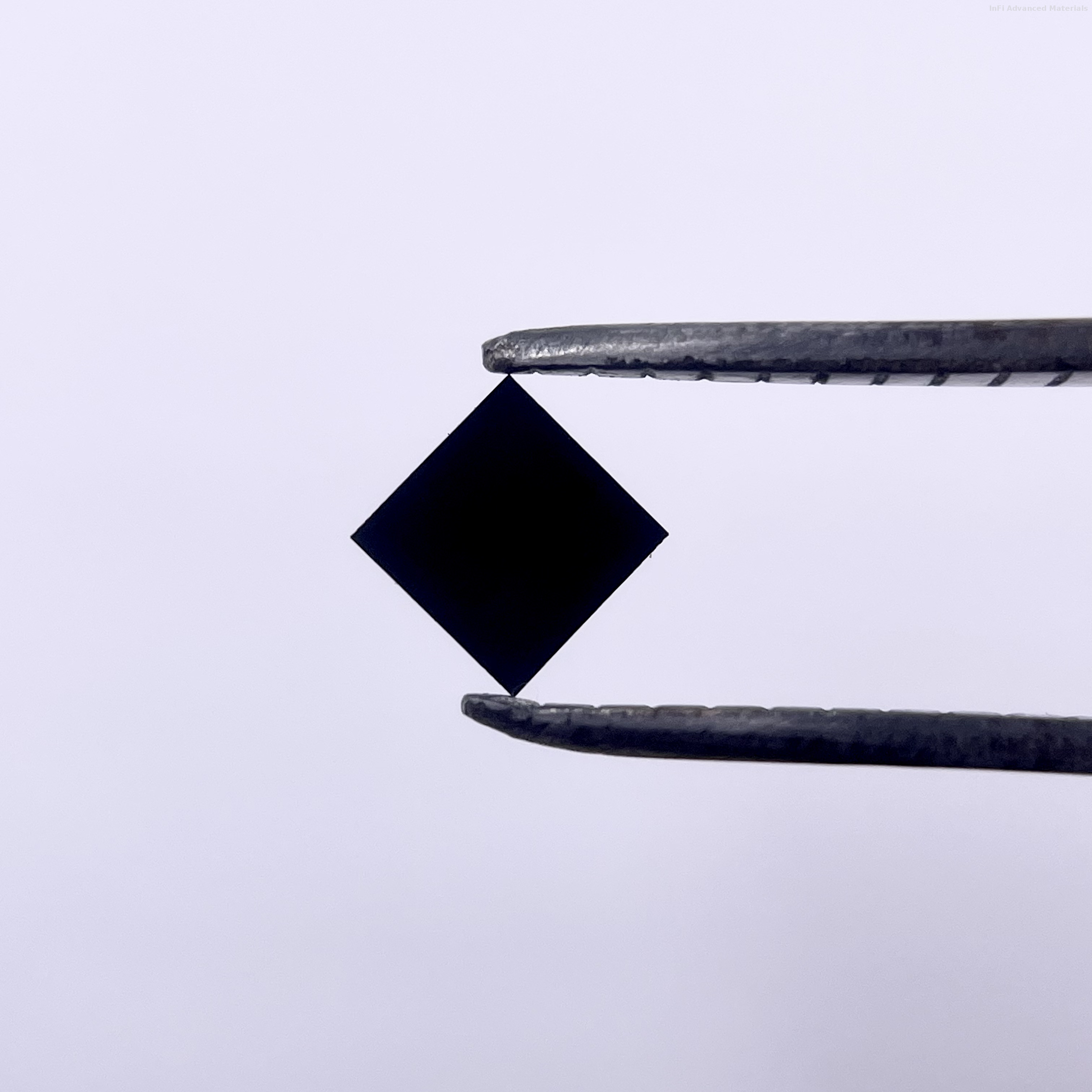

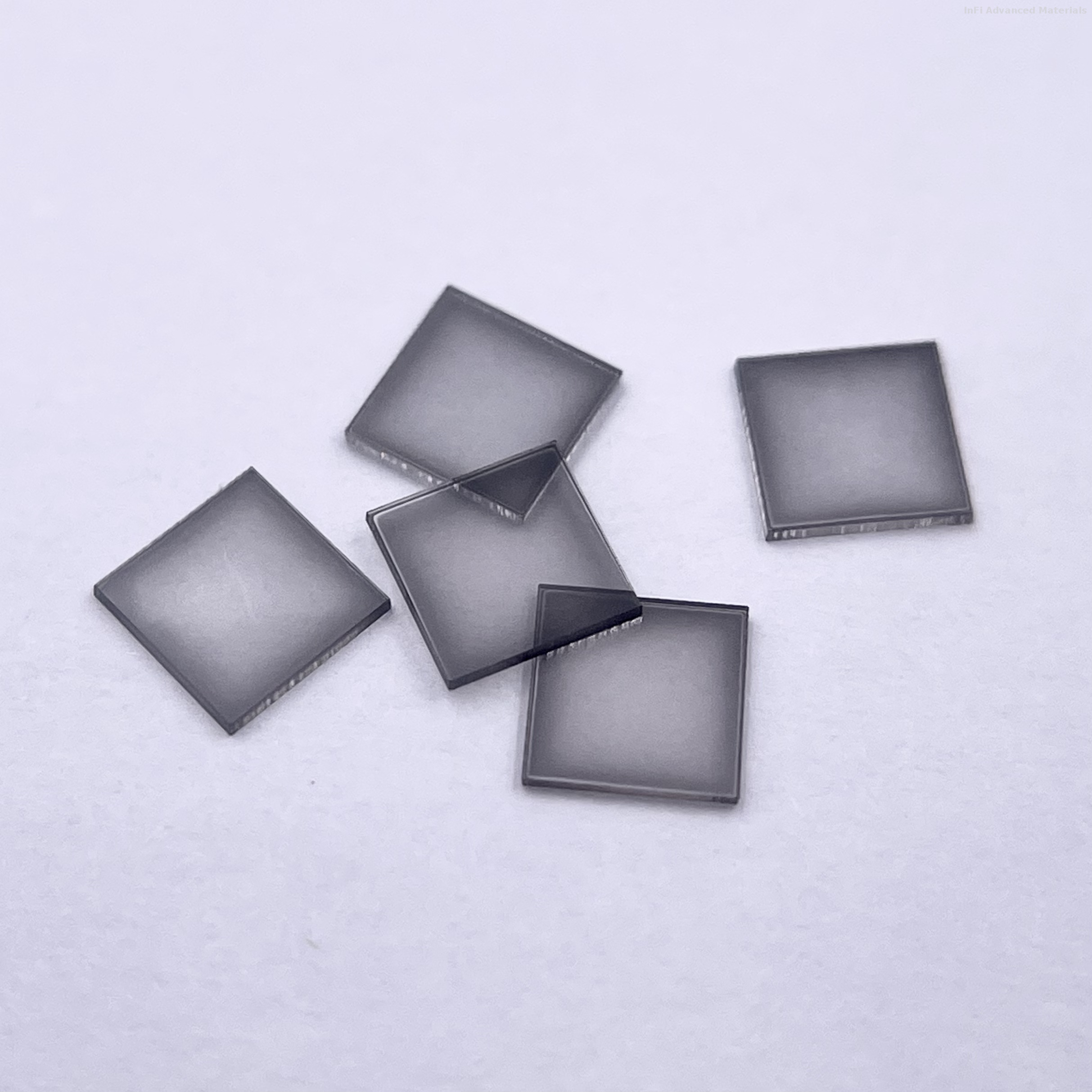

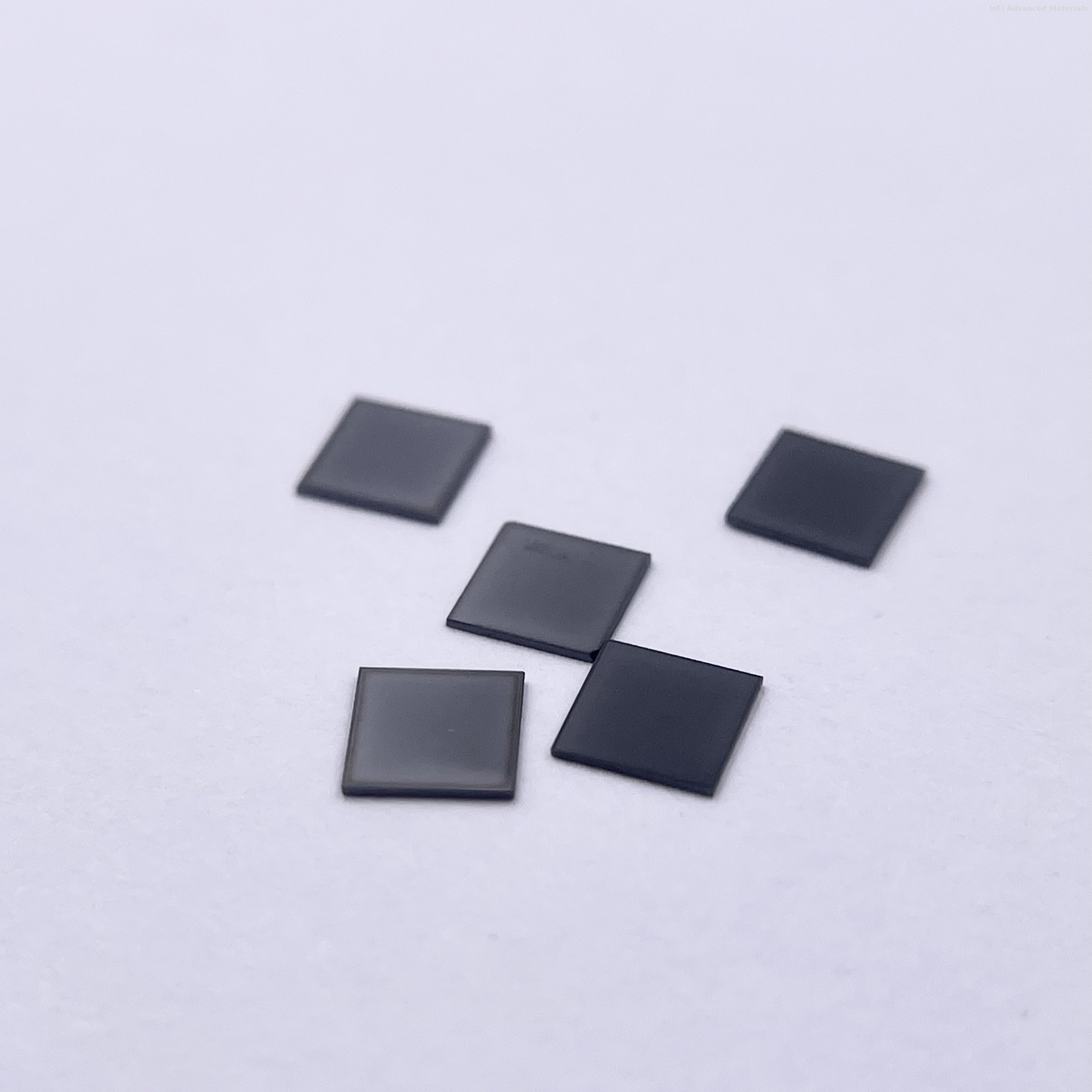

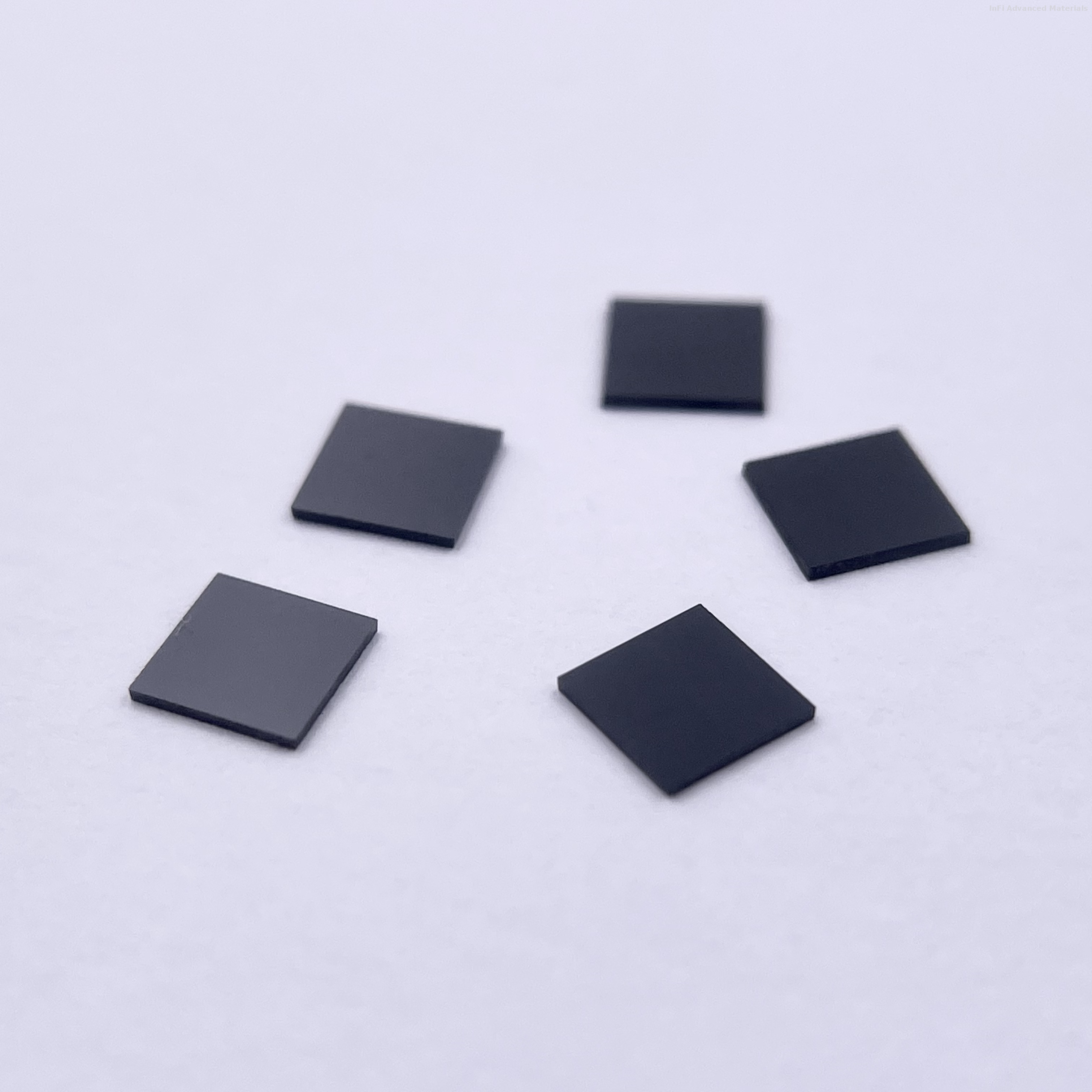

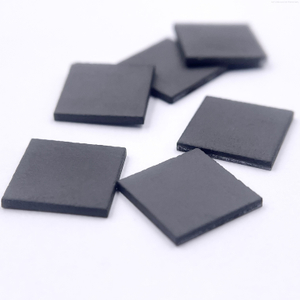

Boron Doped Diamond: CVD Single Crystal for Semiconductors & High-Power Electronics

Our Boron Doped Diamond (BDD) represents the pinnacle of engineered diamond materials. Created through precision chemical vapor deposition (CVD), this single crystal diamond is intentionally doped with boron atoms, transforming it from a natural insulator into a powerful p-type semiconductor while preserving all of diamond's extraordinary intrinsic properties.
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button
  • INFI

The Science of Boron Doping

When boron atoms substitute for carbon atoms in the diamond lattice, they act as acceptor impurities, creating a shallow energy level above the valence band and providing hole carriers. This doping process allows us to precisely control electrical conductivity across a remarkable range—from semi-insulating to metallic-like behavior depending on boron concentration.


Our Boron Doped Diamond offers:

  • Tunable Conductivity: By controlling boron concentration, we can achieve resistivity across a wide range. Lightly doped material exhibits excellent hole mobility, ideal for semiconductor devices, while heavily doped material provides very low resistivity for electrode applications.

  • Exceptional Thermal Management: Even with heavy boron doping, our BDD maintains remarkably high thermal conductivity—far exceeding most engineering materials. While undoped diamond offers superior thermal conductivity, our BDD provides the optimal balance of electrical and thermal performance for demanding applications.

  • Preserved Diamond Extremes: Despite doping, our BDD retains diamond's legendary properties: extreme hardness, outstanding chemical inertness, wide bandgap, and stability in harsh environments.

  • Low Surface States: The stable surface chemistry provides an ideal platform for advanced electronic and sensing applications.


Advanced Applications

Our Boron Doped Diamond is engineered for cutting-edge technology sectors:

High-Power Electronics: As a wide bandgap semiconductor, BDD enables diamond-based Schottky diodes, field-effect transistors, and high-voltage switches capable of reliable operation at elevated temperatures in harsh environments such as aerospace, nuclear industry, and deep-well drilling applications.

RF and Microwave Devices: Electrically conductive BDD serves as an ideal heat spreader for RF and microwave devices. Mounting high-power amplifiers on BDD enables better ground plane isolation and reduces conductive losses at higher frequencies. This makes BDD valuable for advanced communication infrastructure, satellite systems, and defense radar applications.

Thermal Management with Electrical Functionality: Our heavily doped BDD uniquely combines high thermal conductivity with metallic-like electrical conductivity, allowing it to function simultaneously as a heat spreader and an electrical interconnect or electrode. This replaces traditional multi-layer metal and diamond configurations, enabling more compact and efficient thermal management for high-power laser diodes, RF amplifiers, and power modules.

Advanced Electrode Applications: With its wide electrochemical window and low background current, our BDD is exceptional for supercapacitor electrodes, electrochemical sensing, and applications requiring stable, corrosion-resistant electrodes in aggressive chemical environments.

Quantum Technologies: Recent research indicates boron doping influences acoustic phonon properties, with potential implications for advanced quantum sensing applications.


Product Specifications

Our Boron Doped Diamond is available in various sizes and configurations:

  • Size Range: Multiple standard sizes available from small plates to larger formats, with custom sizes available upon request

  • Doping Levels: From lightly doped to heavily doped to meet your specific application requirements

  • Surface Finish: Precision polished to achieve excellent surface quality for optimal device integration

  • Doped Layer Thickness: Available in various thicknesses depending on doping concentration

  • Resistivity Range: Broad range from semi-insulating to highly conductive based on doping level

  • Hole Mobility: Excellent carrier mobility tailored to your application needs


Why Choose Our Boron Doped Diamond?

We offer single crystal CVD diamond with precisely controlled boron doping levels, grown using advanced microwave plasma CVD technology for exceptional crystalline quality. Whether you need semi-insulating material for device substrates or highly conductive grades for thermal management and electrodes, we can provide customized solutions for your specific requirements.

Contact us today to discuss how our Boron Doped Diamond can enable your next-generation electronic applications.
