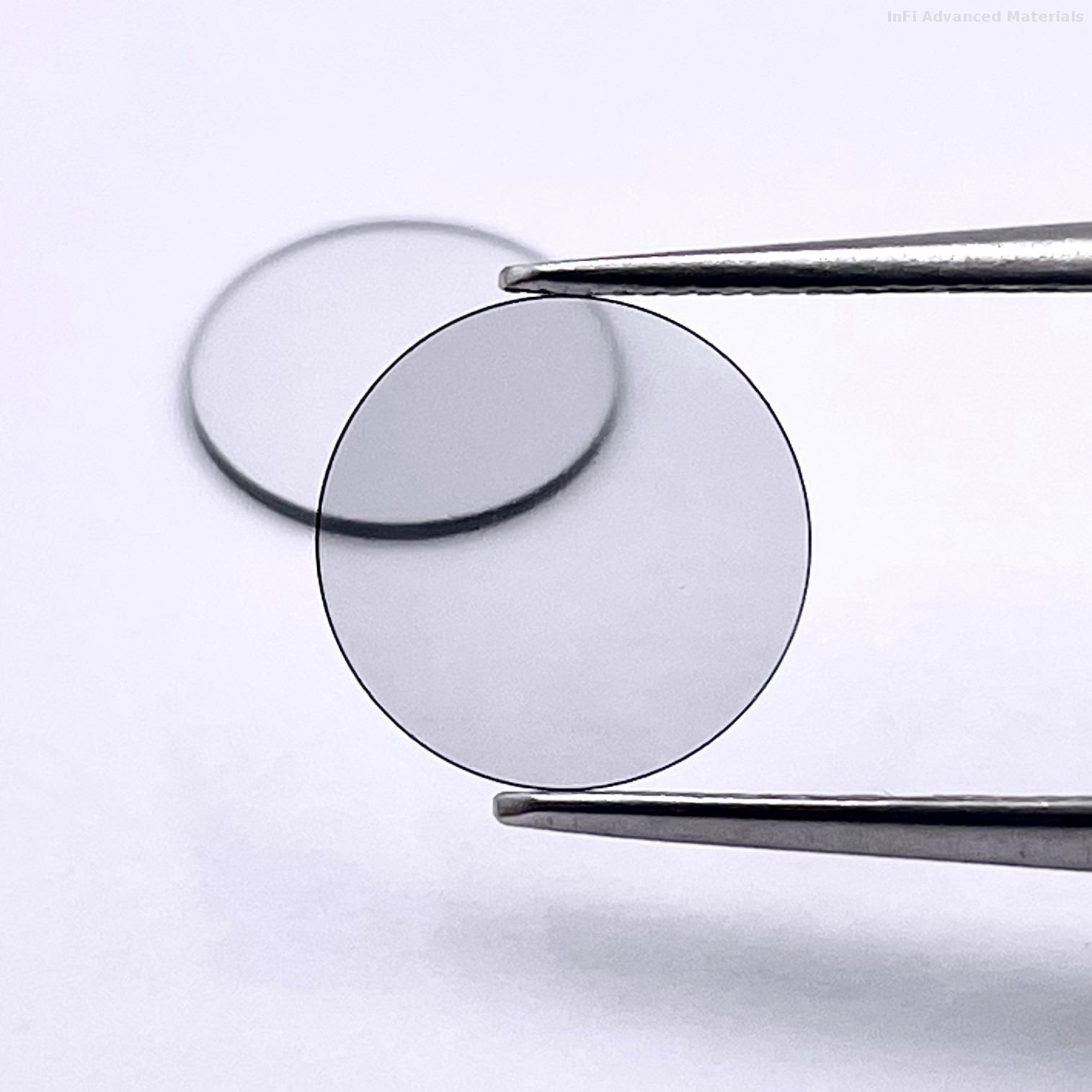

In the demanding field of high-performance Diamond Optics, where systems are pushed to their limits by extreme power, heat, and harsh environments, materials must excel beyond conventional boundaries. Optical-grade diamonds produced by Chemical Vapor Deposition (CVD) achieve this, offering a unique combination of properties that materials like glass or sapphire cannot match. For engineers and designers, the key decision often centers on two primary types: polycrystalline CVD diamond and single crystal CVD diamond. Understanding their distinct advantages is essential for selecting the optimal material for your most challenging applications.
The exceptional performance of Diamond Optics is rooted in diamond's intrinsic properties. It provides an exceptionally broad optical transmission window, spanning from the ultraviolet (UV) through the visible and far into the infrared (IR) spectra. Combined with the highest thermal conductivity of any known material, extreme hardness, and superior chemical resistance, diamond optics enable designs that are more robust, efficient, and capable.
So, which type is right for your project? The choice primarily depends on the specific requirements for optical quality, size, thermal management, and budget.

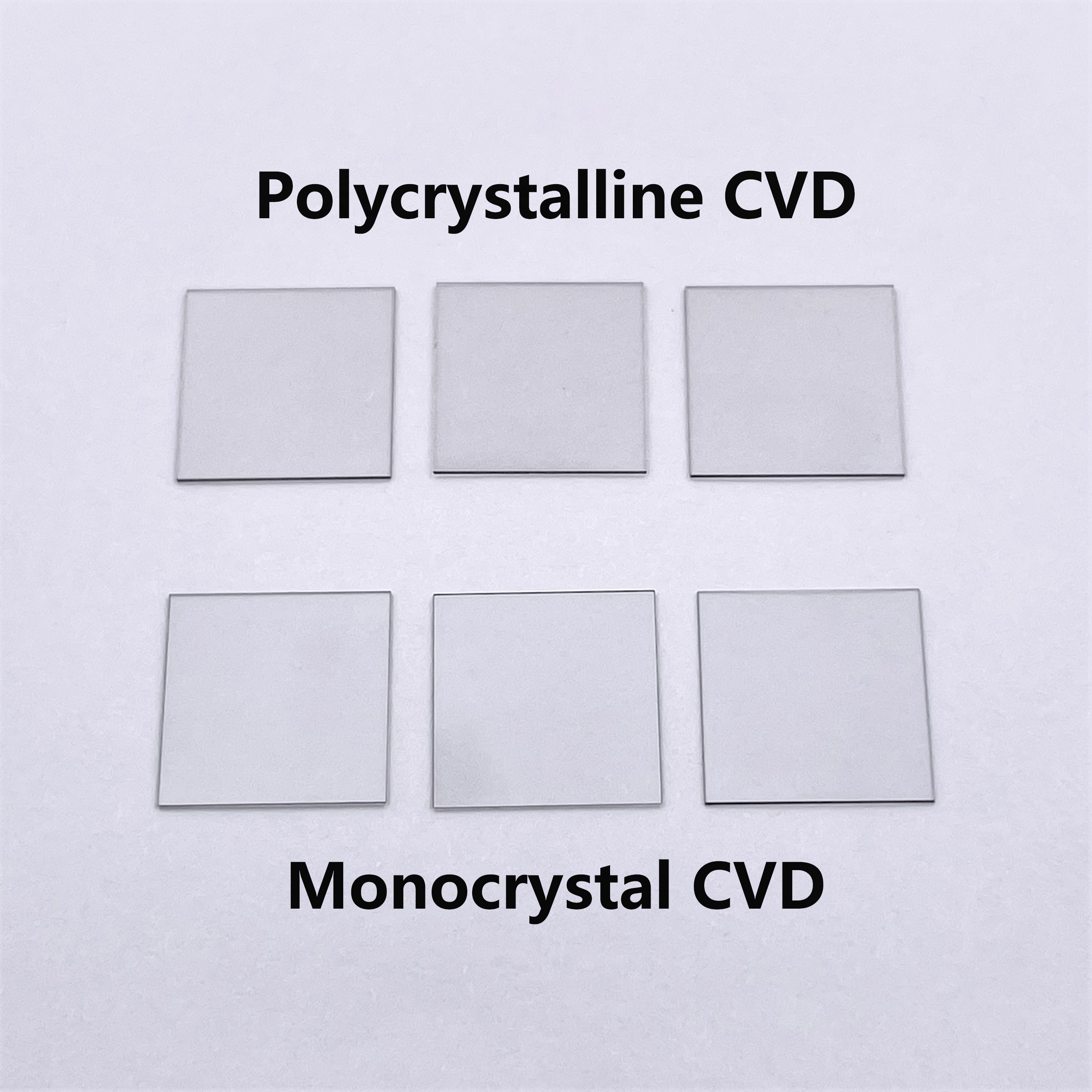

| Feature Dimension | Single Crystal CVD Diamond | Polycrystalline CVD Diamond |
|---|---|---|
| Optical Advantage | Extremely low optical scatter and absorption, high homogeneity | Excellent broadband transmission, especially in the mid-to-far IR |
| Primary Applications | High-power laser cavity mirrors, precision interferometers, quantum optics | High-power CO2 laser windows, aerospace IR windows/domes, rugged sensor windows |
| Key Consideration | Size limited by seed crystal, higher relative cost | Grain boundaries may cause minor scatter, less ideal for ultra-low scatter applications |
Single crystal CVD diamond is the premier choice where ultimate optical precision is critical. Its continuous, uniform crystal lattice—free of grain boundaries—results in extremely low optical scatter and absorption. This makes it the benchmark for applications like high-fidelity laser resonator optics, precision scientific instruments, and advanced photonic devices. Its flawless structure ensures minimal wavefront distortion and the highest possible laser-induced damage threshold.
Polycrystalline CVD diamond, composed of many small crystallites, offers its own powerful advantages. Its primary benefit is the ability to be produced in larger sizes and more complex shapes than single crystal diamond, making it commercially practical for large-aperture optics. It is the proven material for high-power CO2 laser windows and is widely used in aerospace as durable infrared windows and domes. Advanced manufacturing techniques can also be applied to its surface to create effective, durable anti-reflective structures, further enhancing its performance in long-wave infrared applications.
In conclusion, achieving optimal performance means matching the material to the mission. For unparalleled optical homogeneity and low scatter in precision systems, single crystal diamond optics are ideal. For large-scale, rugged applications requiring supreme thermal management, broad-band IR performance, and scalability, polycrystalline diamond optics deliver a robust and reliable solution. By leveraging the unique strengths of each, Diamond Optics continue to push the boundaries of the possible in laser technology, thermal imaging, aerospace, and cutting-edge scientific research.
