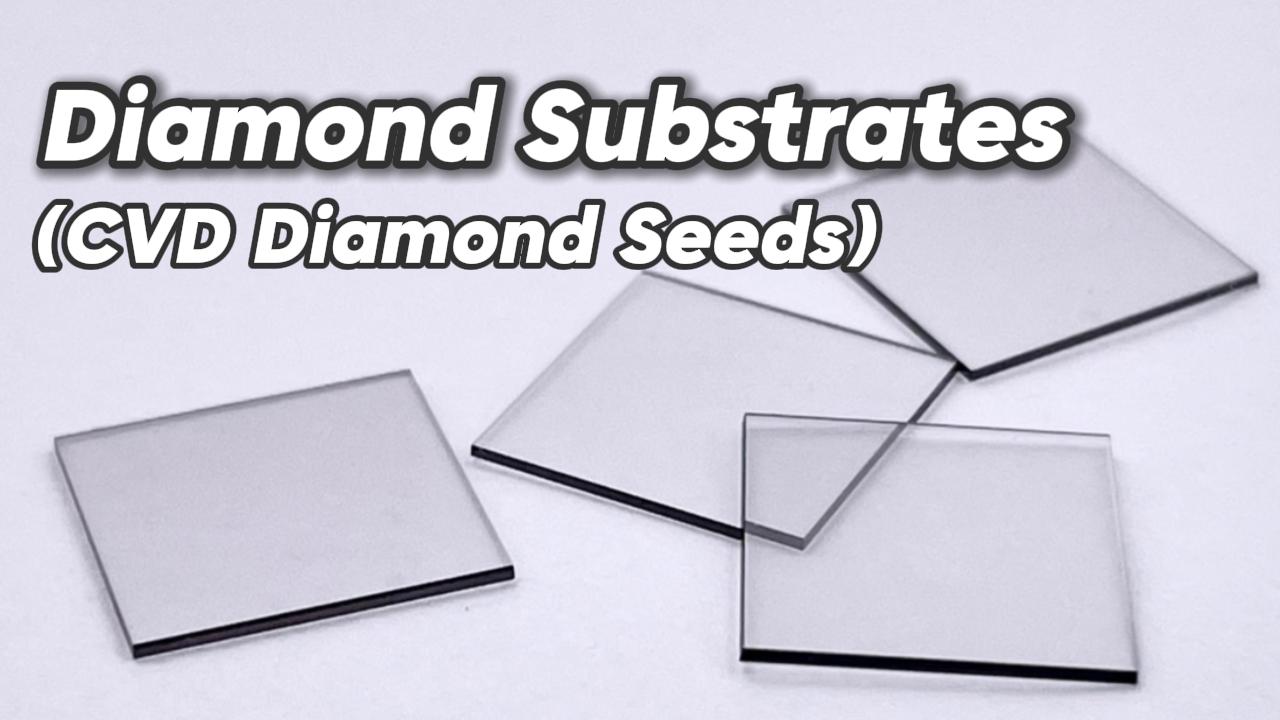

In the world of synthetic diamond production, the quality of the final product is determined long before the growth process begins. It starts with the foundation – the Diamond Substrates, also known as Diamond Seeds, upon which all subsequent diamond layers are built.
What Are Diamond Substrates?
Diamond Substrates are precisely oriented single-crystal diamond plates that serve as the foundational template for chemical vapor deposition (CVD) growth. In the homoepitaxial growth process, new diamond layers are deposited onto these seeds, inheriting their crystalline structure and orientation . This means the quality of the seed directly dictates the quality of everything that grows on top.
Unlike heteroepitaxial growth on non-diamond materials (such as silicon or iridium), homoepitaxial growth on Diamond Seeds offers the best possible crystalline continuity, resulting in fewer defects and superior material properties .
The Critical Role of Seed Quality
The importance of seed quality cannot be overstated. Research has demonstrated several key factors that influence growth outcomes:
Surface Quality Matters – Studies show that the surface condition of Diamond Seeds affects the internal stress and crystalline quality of the grown diamond. Interestingly, while seeds are typically polished before use, research indicates that seeds with moderately rough surfaces after cutting can actually improve internal stress management in the final crystal, with only a slight trade-off in crystalline perfection . This finding has significant economic implications for gem-quality diamond production.
Crystal Integrity – High-quality Diamond Substrates must have low dislocation density and be free of defects that could propagate into the growing crystal. Advanced growth techniques have demonstrated the ability to reduce etch pit density in grown substrates by one to three orders of magnitude compared to commercially available seeds, significantly improving electronic quality .
Size Considerations – The dimensions of Diamond Seeds directly impact the final product size. Researchers have developed specialized substrate holder designs that shield seed sides from intense microwave plasma, allowing substrate dimensions to increase by 1.23 to 2.5 times during growth while minimizing polycrystalline rim formation .
Applications Across Industries
High-quality Diamond Substrates enable a wide range of advanced applications:
·Semiconductor Devices – As an ultra-wide bandgap material (~5.5 eV), diamond grown on quality seeds enables high-power, high-frequency electronic devices capable of operating in extreme environments .
·Optical Components – Type IIa quality or better diamond substrates with high optical transmission are essential for laser windows, optical elements, and sensing applications .
·Thermal Management – Diamond's exceptional thermal conductivity (approaching 2000 W/m·K) makes it ideal for heat spreading applications in high-power electronics and laser diodes .
·Research and Development – High-quality substrates are critical for advancing diamond growth science, including studies on doping, defect engineering, and novel applications .
Future Directions
The demand for larger, higher-quality Diamond Substrates continues to grow. Research initiatives are actively pursuing techniques to produce device-grade substrates with diameters exceeding 50 mm, low dislocation density, and surface roughness below 0.2 nanometers . Approaches such as mosaic tiling – where multiple Diamond Seeds are arrayed and laterally overgrown – show promise for scaling up substrate dimensions while maintaining single-crystal quality .
Conclusion
Diamond Substrates and Diamond Seeds are far more than simple starting materials – they are the critical foundation upon which all diamond growth depends. With stable production capacity and consistent quality, reliable seed supply enables everything from research-scale experiments to large-scale manufacturing. For anyone serious about producing high-quality synthetic diamond, the journey begins with the right seed.
