When people hear "diamond," brilliance and jewelry often come to mind. However, in the world of advanced manufacturing and engineering, CVD Diamond represents a revolutionary engineered material, synthesized not for adornment but for unparalleled industrial performance. This article delves into the world of tool-grade CVD Diamond, exploring its creation, exceptional properties, and the transformative applications it enables.
What is CVD Diamond?
CVD Diamond, or Chemical Vapor Deposition Diamond, is a synthetic material grown in a controlled laboratory environment. Unlike natural diamonds formed over eons under immense pressure, CVD diamonds are created by breaking down a carbon-rich gas (like methane) in a vacuum chamber, allowing pure carbon atoms to deposit layer by layer onto a substrate. This precise process allows for the creation of high-purity, single-crystal or high-quality polycrystalline diamond wafers and blanks with tailored properties for specific industrial uses.
Why Tool-Grade CVD Diamond is Exceptional
Tool-grade CVD Diamond is engineered to maximize key physical properties that are critical in demanding applications. Its standout characteristics form the foundation of its superiority:
Extreme Hardness and Wear Resistance: As the hardest known material, it offers exceptional resistance to abrasion, drastically outperforming traditional materials like tungsten carbide or ceramics. This translates directly to significantly longer tool life and reduced downtime.
Unmatched Thermal Conductivity: CVD Diamond possesses the highest thermal conductivity of any material at room temperature. This allows it to rapidly dissipate heat generated during high-speed machining or operation, preventing thermal damage to both the tool and the workpiece, and enabling cooler, more precise processes.
Excellent Chemical Inertness and Low Friction: It is highly resistant to chemical attack and exhibits a very low coefficient of friction. This combination minimizes material adhesion (built-up edge) during cutting, reduces cutting forces, and ensures superior surface finishes on machined parts.
High Strength and Stiffness: With a high Young's modulus, it provides exceptional dimensional stability and rigidity under load, which is crucial for maintaining precision in micro-machining and ultra-precise cutting operations.
Transformative Industrial Applications
The unique property set of tool-grade CVD Diamond makes it indispensable across several high-tech sectors:
Precision Cutting and Machining: It is the material of choice for cutting tools, inserts, and blades used in ultra-precision machining of non-ferrous metals (e.g., aluminum, copper alloys), composites, ceramics, and advanced polymers, where it delivers mirror-like finishes and tight tolerances.
Abrasion and Wear Solutions: CVD Diamond coatings or solid tips are used in wire drawing dies, bearings, seals, and pump components that must operate in highly abrasive environments, extending service life by orders of magnitude.
Thermal Management: Its superior heat-spreading capability makes it ideal for use as a heat sink or thermal spreader in high-power electronic devices, laser diodes, and RF components, where efficient heat dissipation is critical for performance and reliability.
Our Precision Tool-Grade CVD Diamond Wafers

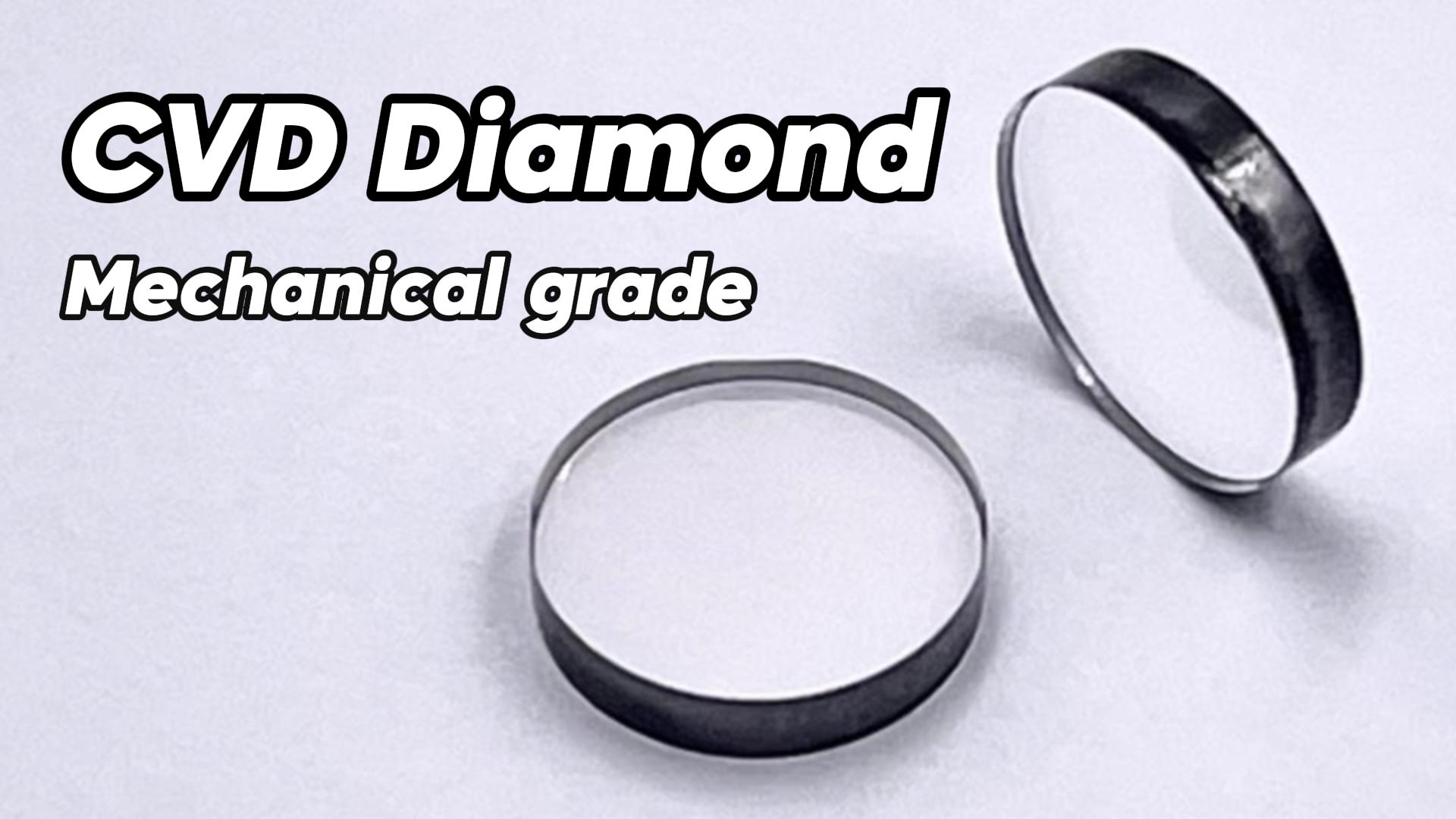

To harness these capabilities, we provide precision-engineered, tool-grade CVD Diamond wafers. Our products are characterized by high purity and controlled crystallographic orientation (such as {100} or {110} faces). They are available in diameters from 2mm to 20mm and thicknesses from 0.2mm to 3mm, with tight tolerances. Each wafer features a polished surface with a roughness (Ra) of less than 10 nanometers and laser-cut edges. We offer comprehensive customization of dimensions, shape, and crystal orientation to meet the exact requirements of your specific tooling or component design.
In conclusion, CVD Diamond is far more than a gemstone substitute. It is a pinnacle of materials engineering, offering a combination of hardness, thermal management, and chemical stability that is unlocking new levels of efficiency, precision, and durability in industrial tools and components. By adopting CVD Diamond, engineers and manufacturers can push the boundaries of what is possible in advanced fabrication and technology.
