In the precision-driven world of industrial wire manufacturing, diamond dies are the unsung heroes. These small but critical components, through which metal is pulled to reduce its diameter, directly determine production efficiency, wire quality, and operational cost. While diamond's legendary hardness makes it the ideal material, not all diamond dies are created equal. The advent of high-quality Chemical Vapor Deposition (CVD) single crystal diamond, particularly with a controlled (111) crystal orientation, is setting a new standard for performance and longevity.
The Core Challenge: Anisotropy in Diamond Dies
Traditional monocrystalline diamond dies, whether natural or synthetic, face a fundamental material challenge: anisotropy. This means their properties, especially wear resistance, vary significantly depending on the crystallographic direction. During prolonged wire drawing, this directional dependence leads to uneven wear of the die's aperture, causing ovalization that deteriorates wire surface finish and dimensional accuracy. While polycrystalline diamond (PCD) can offer more uniform wear, it often contains binding agents that compromise the precision needed for ultra-fine or high-quality wire drawing.

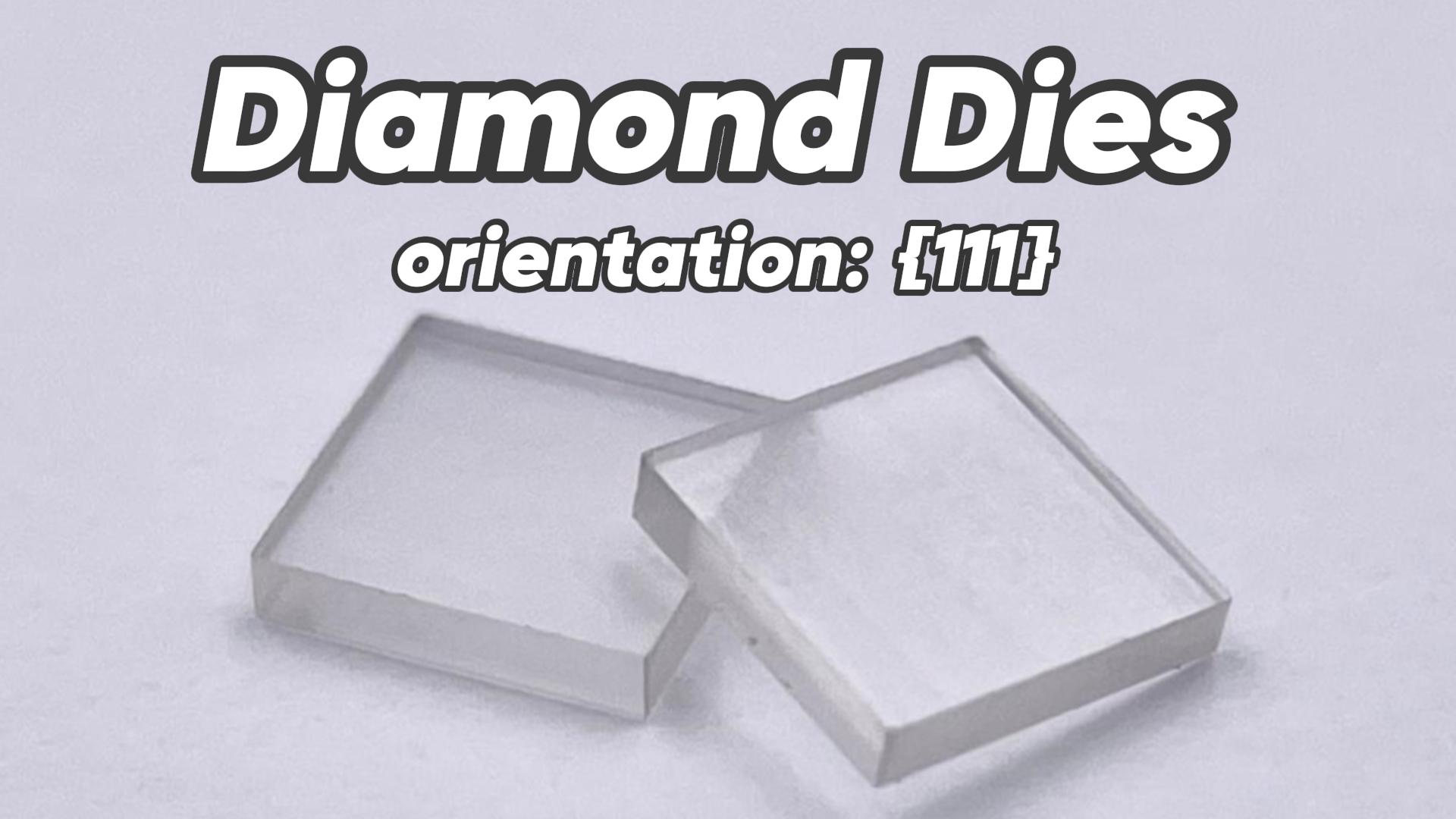

The (111) Orientation Advantage
This is where the strategic use of the (111) crystal plane in single-crystal CVD diamond creates a decisive advantage. Scientific research consistently identifies the (111) plane as the hardest face of the diamond crystal. By engineering a die so that this ultra-hard plane forms the working surface of the wire drawing aperture, manufacturers can directly combat the primary cause of failure. A (111)-oriented surface provides maximum resistance to the abrasive and adhesive wear from the wire, leading to drastically extended service life and exceptional dimensional stability. For instance, studies on gold wire drawing have shown that a strong <111> texture in the wire itself correlates with higher stiffness, suggesting that a compatible (111)-oriented die can promote better wire properties .
CVD Technology: Enabling Precision Engineering
Chemical Vapor Deposition (CVD) is the key technology that makes this level of material engineering possible. Unlike methods that cut and polish from larger stones, CVD allows for the growth of high-purity, single-crystal diamond with a specific, pre-determined orientation. Advanced processes focus on growing (111)-oriented layers with low surface roughness and high crystalline quality, overcoming historical challenges associated with this orientation. This capability results in diamond dies that are not only supremely hard but also possess the homogeneous, defect-free structure necessary for consistent, high-precision wire drawing over millions of cycles.
Applications and Impact
The benefits of (111)-oriented CVD diamond dies are most pronounced in the most demanding applications. They are particularly suited for drawing:
Hard and abrasive wires: Such as tungsten, molybdenum, and stainless steel, where wear rates are highest.
Ultra-fine and precision wires: Used in electronics (e.g., bonding wire) and medical devices, where dimensional consistency is critical.
High-value wire production: Where maximizing die life directly reduces downtime and cost per unit.
Conclusion
For wire producers seeking to push the boundaries of quality, efficiency, and cost-effectiveness, the choice of die material is paramount. Diamond dies crafted from (111)-oriented single-crystal CVD diamond represent the pinnacle of this technology. By directly addressing the anisotropy of traditional diamond through crystallographic engineering, they deliver unmatched wear uniformity, extended lifespan, and superior wire quality. Investing in this advanced die technology translates directly to a more robust, reliable, and productive wire drawing process.
