Diamond Materials: Engineering the Ultimate Semiconductor for Next-Generation Electronics

Beyond their timeless appeal in jewelry, diamond materials are emerging as one of the most transformative platforms for next-generation electronics. With an extraordinary combination of physical and electrical properties, engineered diamond is no longer just a gem—it is a high-performance semiconductor material poised to address the fundamental limitations of silicon and other conventional materials .

The Extraordinary Properties of Diamond Materials

What makes diamond materials so exceptional for electronic applications? The answer lies in a suite of properties unmatched by any other material. Diamond possesses the widest bandgap (approximately 5.5 eV), allowing it to handle extreme voltages and operate at temperatures far beyond the capability of silicon . It has the highest thermal conductivity of any bulk material—around 2200 W/m·K—which means it can dissipate heat faster and more efficiently than copper or any other engineering material . This combination of wide bandgap and superior thermal management enables diamond-based devices to handle immense power densities without overheating, opening new possibilities for compact, high-power electronics .

Additionally, diamond offers high carrier mobility (up to 4500 cm²/V·s for holes), high breakdown voltage (10 MV/cm), and exceptional mechanical hardness (100 GPa) . Its natural resistance to radiation and extreme temperatures makes it ideal for deployment in harsh environments such as space, nuclear reactors, and deep-well drilling applications where traditional semiconductors fail .

Engineering Diamond for Electronic Applications

The true potential of diamond materials lies in our ability to engineer them for specific functions. Through advanced chemical vapor deposition (CVD) techniques and post-growth processing, diamond can be tailored to meet diverse application requirements.

Boron-doped diamond is a prime example. By introducing boron atoms into the diamond lattice during growth, the material transforms from an insulator into a p-type semiconductor with tunable conductivity . Research shows that by controlling boron concentration, resistivity can be adjusted across a wide range—from highly insulating to metallic-like behavior below 0.05 Ω·cm . Lightly doped layers (10¹⁵–10¹⁷ cm⁻³) are essential for high-power electronic devices such as Schottky diodes and transistors, while heavily doped material (above 10²⁰ cm⁻³) provides low-resistivity paths for electrodes and interconnects .

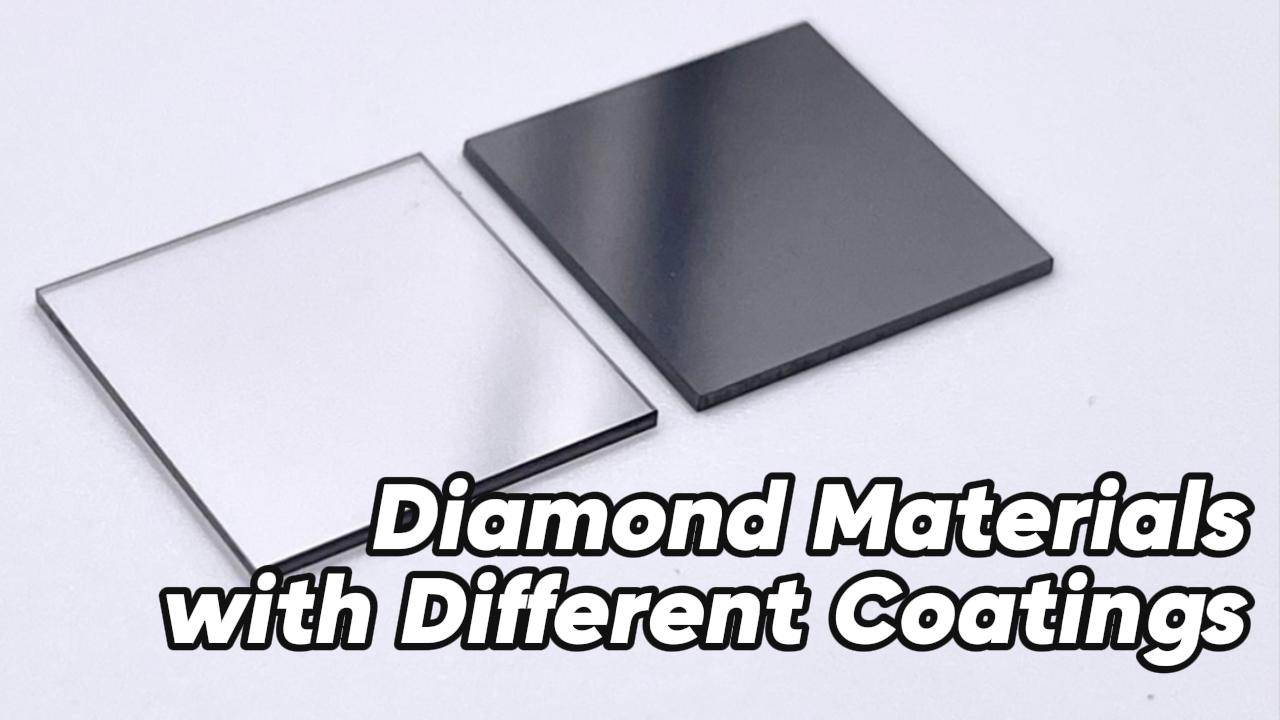

Metal-coated diamond materials address another critical need: thermal management with electrical functionality. Chrome-coated, copper-coated, and silver-coated CVD diamond combine diamond's exceptional heat-spreading capability with the electrical conductivity of metals. These engineered composites enable simultaneous heat dissipation and electrical conduction, replacing traditional multi-layer metal/diamond configurations in high-power laser diodes, RF amplifiers, and advanced electronic packaging.

Applications Across Technology Sectors

The versatility of diamond materials positions them as enabling solutions across multiple cutting-edge fields:

·High-Power Electronics: Diamond-based Schottky diodes, field-effect transistors, and high-voltage switches capable of reliable operation above 500°C are advancing power conversion and grid infrastructure . PIN diodes have demonstrated current density exceeding 100 kA/cm², making them suitable for high-frequency receiver protect circuits .

·RF and Microwave Devices: Diamond's high carrier mobility and thermal conductivity enable more efficient RF amplifiers, 5G infrastructure components, and defense radar systems. As a heat spreader, diamond effectively removes heat from high-power RF devices while providing electrical isolation or conductivity as needed .

·Thermal Management: Metal-coated diamond materials serve as advanced heat spreaders for high-power laser diodes, power modules, and microprocessors, enabling more compact designs and improved reliability .

·Quantum and Sensing Technologies: Nitrogen-vacancy centers in diamond enable nanotesla-level quantum magnetometry, while boron-doped diamond electrodes find applications in electrochemical sensing and energy storage .

Customization and Future Directions

The field of diamond materials continues to advance rapidly. Research into microstructure engineering—including nanotwinned diamond architectures, diamond-graphene composites, and amorphous diamond phases—is pushing the boundaries of mechanical and physical properties . Meanwhile, innovations in heterointegration with 2D materials such as molybdenum disulfide are opening new pathways for electrostatic doping and enhanced device performance .

Importantly, diamond materials can be customized to meet specific application needs. Beyond standard boron-doped and metal-coated options, custom coatings, shapes, and sizes can be engineered to customer drawings. This flexibility, combined with diamond's inherent extreme properties, makes engineered diamond materials a cornerstone of next-generation electronics, thermal management, and quantum technologies.

As synthesis techniques continue to improve and wafer-scale single-crystal diamond becomes more accessible, the adoption of diamond materials in industrial and commercial applications will only accelerate . For engineers and researchers pushing the limits of what electronics can achieve, diamond offers not just incremental improvement—but a fundamentally new material platform.
