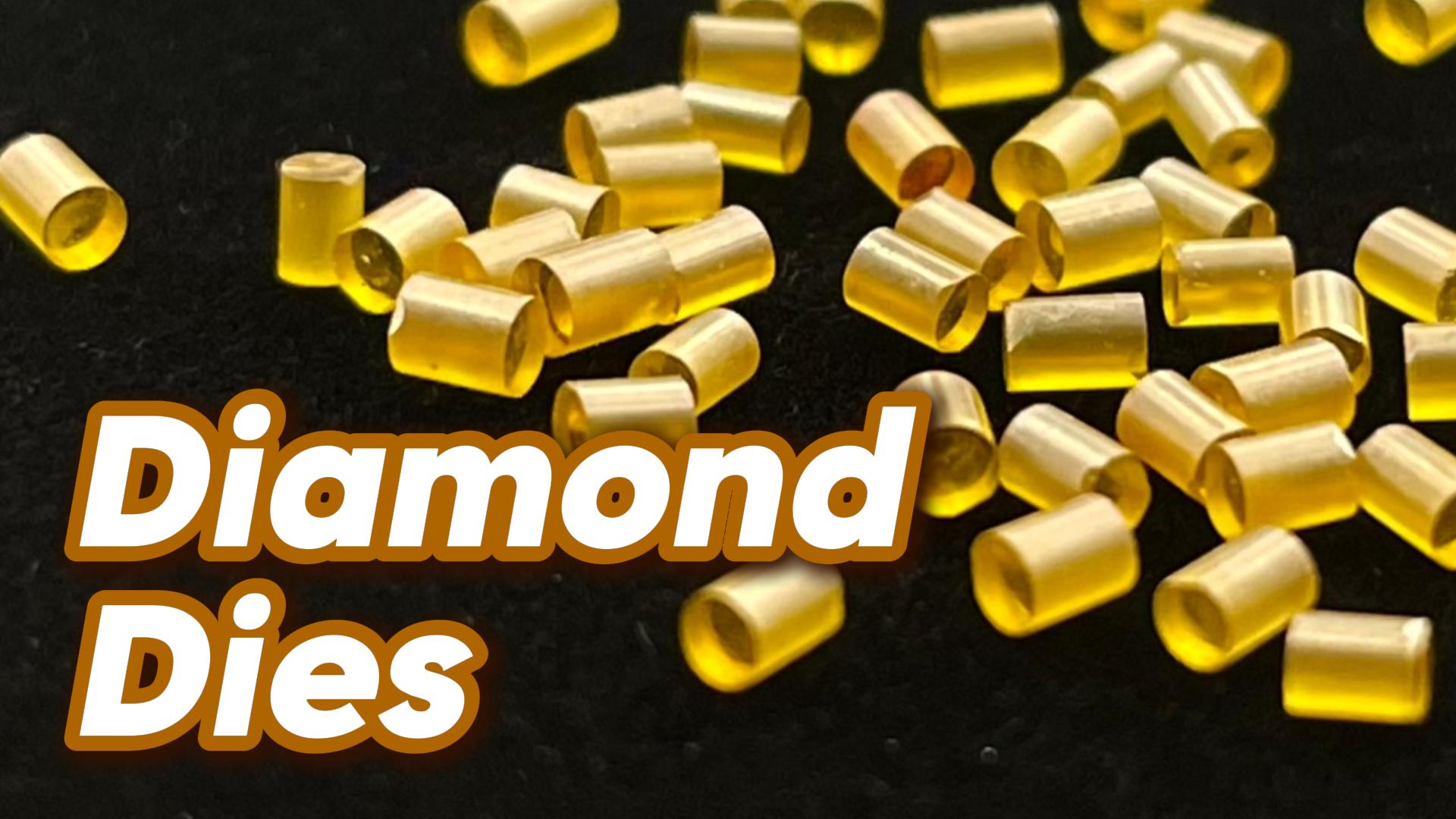

In the world of metalworking, precision and durability are everything. When it comes to reducing the diameter of wire—whether copper, aluminum, stainless steel, or tungsten—the quality of the die directly determines production efficiency, wire consistency, and operational cost. This is where diamond dies come into play. As one of the hardest materials known, diamond offers unparalleled wear resistance, making diamond dies the preferred choice for demanding wire drawing applications across industries ranging from electronics to aerospace .
A diamond die is a precision tool with a carefully shaped orifice through which wire is pulled to reduce its diameter. The die must withstand immense tensile forces, constant abrasion, and thermal stress while maintaining exact dimensional accuracy . Diamond dies achieve this by leveraging the extreme hardness of diamond—ranking 10 on the Mohs scale—to resist wear far longer than conventional materials like tungsten carbide .
Different applications call for different types of diamond dies. Each type offers a unique balance of performance, cost, and durability.
Natural Diamond Dies are crafted from high-grade single-crystal natural diamonds, often oriented along the {111} crystal plane for maximum hardness . These dies are ideal for ultra-fine wire drawing, producing wires with exceptional surface finish and dimensional stability. They are widely used in electronics, medical devices, and high-precision metalworking where wire diameters can be as small as 0.015 mm .
Polycrystalline Diamond (PCD) Dies are manufactured by sintering microscopic diamond particles with a metallic binder, typically cobalt, under high pressure and temperature . The result is a composite material that combines diamond’s extreme hardness with improved toughness. PCD dies offer excellent wear resistance and thermal conductivity, making them ideal for high-volume drawing of non-ferrous metals like copper, aluminum, and brass . They are available in various grain structures—from ultra-fine (1 µm) to coarse (25 µm)—allowing manufacturers to achieve specific surface finish requirements .
Diamond Coated Dies represent a newer innovation, where a nano-diamond layer is applied to a tungsten carbide substrate .This advanced coating can reduce friction by up to ten times compared to conventional diamond dies and a hundred times compared to standard carbide dies, resulting in exceptional wear resistance and enhanced surface quality for drawn wires .
Exceptional Wear Resistance: Diamond is the hardest known material. In abrasive applications, diamond dies can outlast traditional carbide dies by a significant margin, with some studies showing lifespan improvements that can reach multiple times that of conventional tools .This translates directly to fewer die changes and reduced downtime.
Superior Surface Finish: The low friction coefficient of diamond enables smoother wire flow, producing wires with excellent surface quality and minimal defects .This is particularly critical for applications like electrical wiring, where surface imperfections can affect conductivity.
Consistent Dimensional Accuracy: Diamond dies maintain their precise bore geometry over extended production runs, ensuring uniform wire diameter and tight tolerances that meet the stringent requirements of aerospace, medical, and electronics industries .
Versatility Across Materials: Diamond dies are suitable for drawing a wide range of wire types, including:
Soft wires: Copper, aluminum, gold, silver, brass
Hard wires: Stainless steel, tungsten, molybdenum, and various coated steel wires
Specialty alloys: High-performance alloys used in aerospace and medical applications
The versatility of diamond dies makes them indispensable across multiple sectors. In electronics, they are used to draw fine copper and gold bonding wire for semiconductors and circuit boards . In automotive and aerospace manufacturing, they process stainless steel and specialty alloy wire for springs, fasteners, and critical components .In telecommunications and power transmission, they produce high-conductivity copper and aluminum wire for cables .
For manufacturers seeking to optimize wire production with longer tool life, better surface quality, and reduced downtime, diamond dies offer a proven solution. By combining diamond’s unmatched hardness with precision engineering, these dies enable efficient, high-quality wire drawing across a spectrum of demanding applications. Whether your operation involves fine wire for medical devices or heavy-duty cable for power transmission, selecting the right diamond die is an investment in consistent performance and long-term value.
