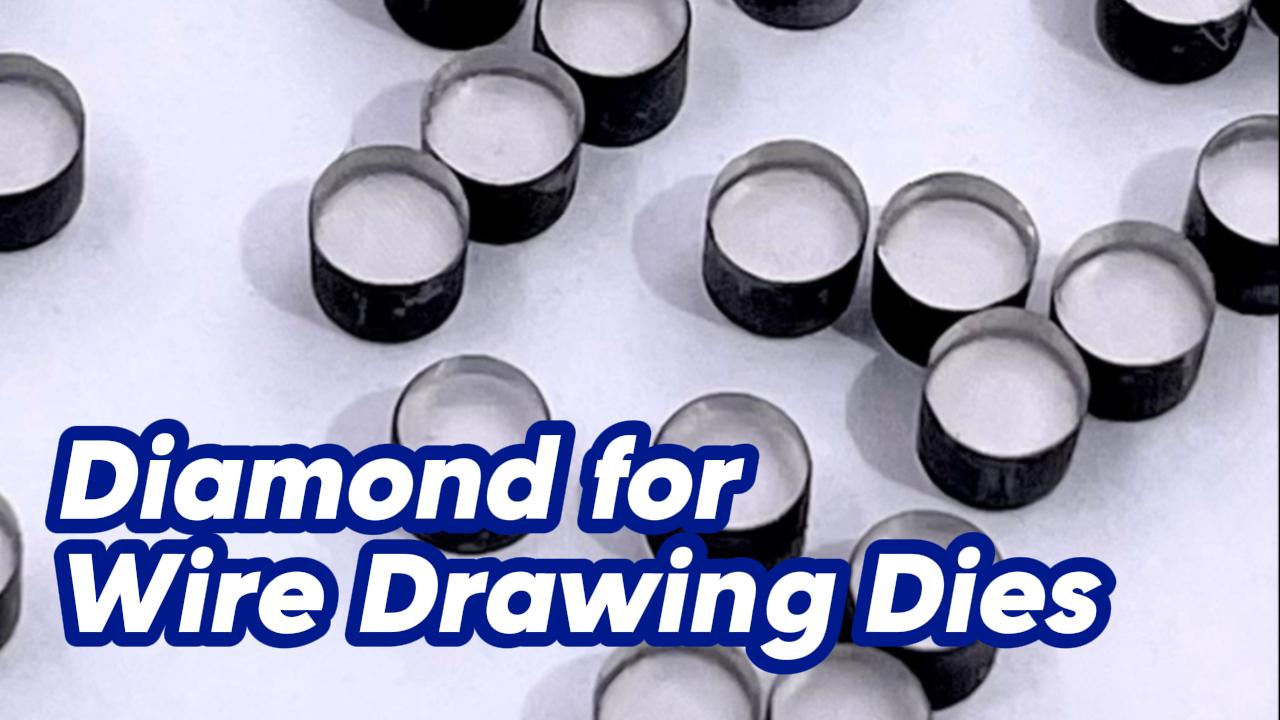

When wire manufacturers talk about improving production efficiency and wire quality, the conversation often focuses on the finished Diamond Wire Drawing Dies themselves — the precision tools that reduce wire diameter through controlled pulling. But experienced die makers know that a truly great die begins long before the final shaping and polishing. It starts with the material at its core.
This article looks at Diamond Wire Drawing Dies from a different angle — not from the finished tool perspective, but from the foundation that makes high performance possible.
For wire drawing applications demanding tight tolerances and extended service life, the choice of diamond material is critical. Whether drawing copper, aluminum, stainless steel, or tungsten wire, the die’s core must withstand constant abrasion, thermal stress, and mechanical load while maintaining dimensional accuracy over millions of cycle .
Different applications call for different diamond materials. Polycrystalline diamond (PCD) dies offer a balance of hardness and toughness for high-volume production of non-ferrous metals, with grain structures ranging from ultra-fine (1 µm) to coarse (25 µm) to meet specific surface finish requirements .Monocrystalline diamond (MCD) dies, particularly those oriented along the {111} crystal plane, provide superior hardness and structural stability for fine and ultra-fine wire drawing where precision is paramount .
Research and industry practice have shown that precise crystal orientation directly affects die performance. The {111} plane in diamond is recognized as one of the hardest crystallographic orientations, offering exceptional wear resistance when aligned with the die’s working surface .
Dies manufactured with {111}-oriented monocrystalline diamond have demonstrated extended service life compared to natural diamond alternatives. Available data indicates that MD/SSCD (synthetic single crystal diamond) dies with precise {111} orientation can deliver longer tool life while maintaining superior surface quality and dimensional accuracy even under high-speed drawing conditions .
The internal structure of the diamond material also influences die performance. Advanced manufacturing techniques have produced diamond polycrystalline bodies using nanocrystalline grains (with grain sizes ≤ 100 nm) combined with plate-like coarse grains, creating a mixed construction that enhances both strength and wear resistance . This understanding of material science at the microstructural level is what enables consistent die performance across demanding applications.
For larger diameter wire drawing where solid diamond cores become cost-prohibitive, alternative approaches such as diamond-coated dies have proven effective. Research demonstrates that diamond coatings deposited on cemented carbide substrates can extend working lifetime by five to ten times compared to uncoated carbide dies, making them a practical solution for applications requiring apertures above 2 mm .
The versatility of Diamond Wire Drawing Dies spans across industries. They are essential for drawing fine copper and gold bonding wire for electronics, stainless steel and medical wire for precision instruments, and high-strength alloy wire for aerospace and automotive applications . From ultra-fine wire diameters as small as 0.015 mm to larger rod drawing, diamond dies enable consistent quality across the wire production spectrum .
For die manufacturers seeking to build reliable, long-lasting tools, the conversation should start upstream — with the selection of quality diamond blanks and cores. A well-made finished die depends entirely on the material from which it is crafted. Consistent crystal orientation, uniform material properties, and controlled manufacturing processes all contribute to the final product’s performance.
When the foundation is right, the rest follows. For those who manufacture Diamond Wire Drawing Dies, the choice of core material isn’t just a technical detail — it’s the first and most important decision in creating a tool that will perform reliably over the long term.
