Diamond cutting Stylus Troubleshooting & Support Guide
Cutting noise or poor sound quality can come from many parts of the cutting chain, not only the cutting stylus.
Before replacing the stylus, we recommend checking the blank, heating, cutting level, static, dust, chip suction, and machine setup first. These are common causes of cutting problems and can often be corrected without changing the stylus.
A steady background hiss is often related to:
1)blank material
2)static
3)dust or contamination
4)poor chip pickup
5)cutting environment
A damaged or worn stylus can increase surface noise, but an even hiss across the whole disc is usually not caused by the stylus alone.
Before replacing the stylus, please try another blank and make sure the cutting area is clean and free of static.
Sharp, distorted, or tearing high frequencies are usually related to cutting level, heating, or EQ settings.
Common causes include:
1)cutting level too high
2)heating too low
3)too much high-frequency EQ
4)difficult or overly bright source material
Stylus wear can make this problem worse, especially after long cutting hours, but cutting setup should be checked first.
Try lowering the cutting level slightly and adjusting the heating gradually.
A dull or muddy sound is often related to heating or playback.
Too much heat may soften the groove and reduce high-frequency detail. Try reducing the heating slightly before assuming the stylus is worn.
Also check the playback cartridge and playback stylus. A worn playback cartridge can make a good cut sound dull.
Sibilance is often caused by the source material or cutting level.
Please check:
1)de-essing
2)high-frequency EQ
3)cutting level
4)playback cartridge condition
Cuts that are too loud can exaggerate “S” sounds quickly. Try reducing the level before replacing the cutting stylus.
Groove burrs or rough groove walls are commonly related to heating, chip suction, or dirty blanks.
Common causes include:
1)heating too low
2)poor chip removal
3)dust or debris near the cutting area
4)dirty or inconsistent blank material
Please check chip pickup and clean the cutting area before testing again.
One-channel problems are usually related to setup rather than stylus failure.
Please check:
1)stylus mounting
2)stylus alignment
3)wiring or contact
4)cutter head calibration
5)playback system balance
Stylus damage can affect cutting quality, but channel imbalance should be checked through the full signal and mechanical setup first.
Pitch wobble or wow is very unlikely to be caused by the stylus.
Common causes include:
1)off-center blanks
2)unstable platter speed
3)vibration
4)turntable or lathe setup issues
Please check the platter, blank centering, and machine stability.

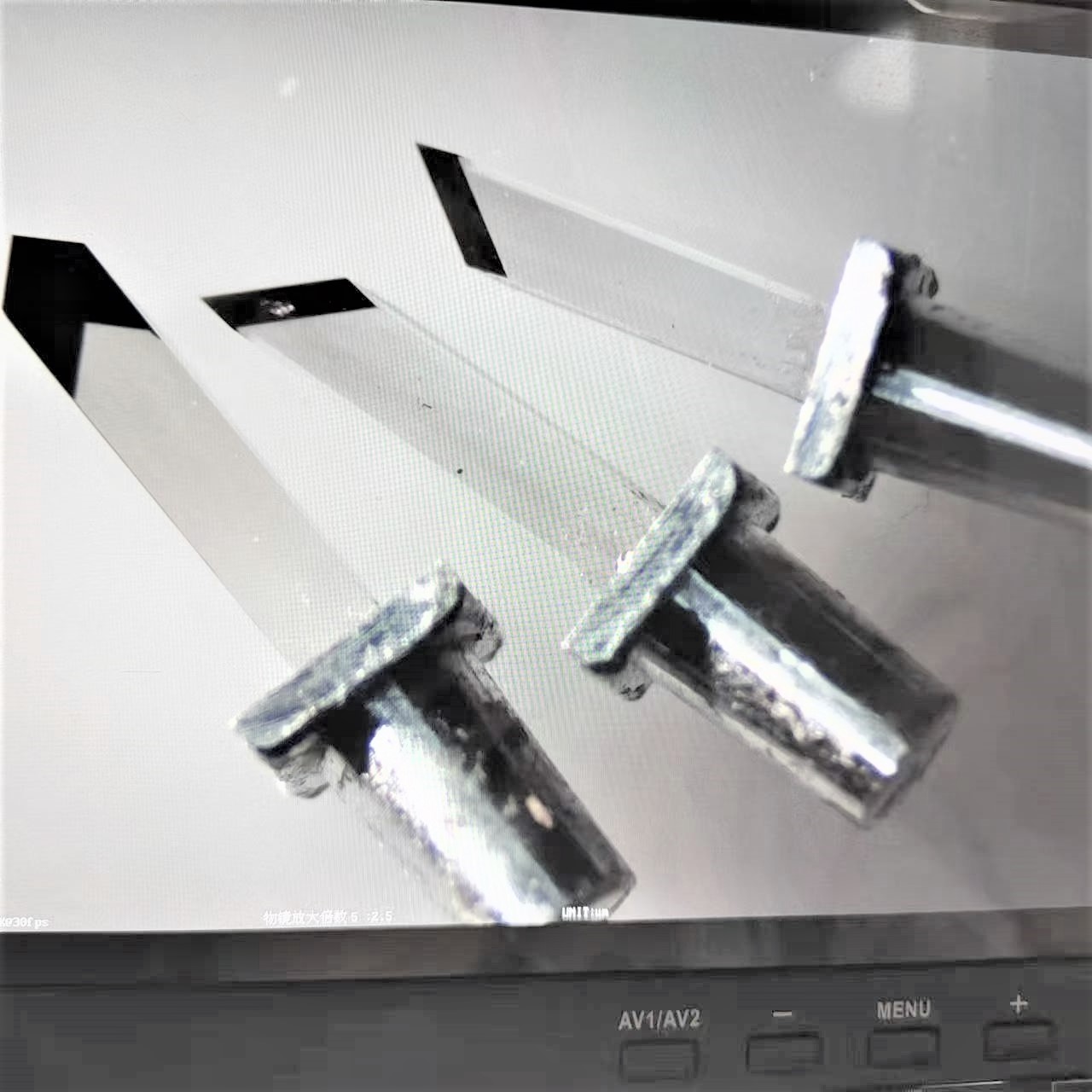

A microscope inspection is very helpful. Ideally, use 200x magnification or higher if available.
Please check for:
1)chipped cutting edges
2)uneven wear
3)asymmetrical tip shape
4)debris or contamination on the tip
5)visible damage after impact or mishandling
For support requests, please include:
1)microscope photos of the stylus tip
2)a short audio sample
3)approximate cutting hours
4)blank material used
5)cutter head model
6)cutting level and heating settings, if available
Please try the following basic tests:
1)use another blank
2)lower the cutting level slightly
3)adjust heating gradually
4)clean the cutting area
5)check chip suction
6)repeat the cut under the same conditions
If the same problem remains after changing only the stylus, the issue is usually elsewhere in the cutting chain.
This process helps identify the real cause of the problem and avoids unnecessary replacement.
