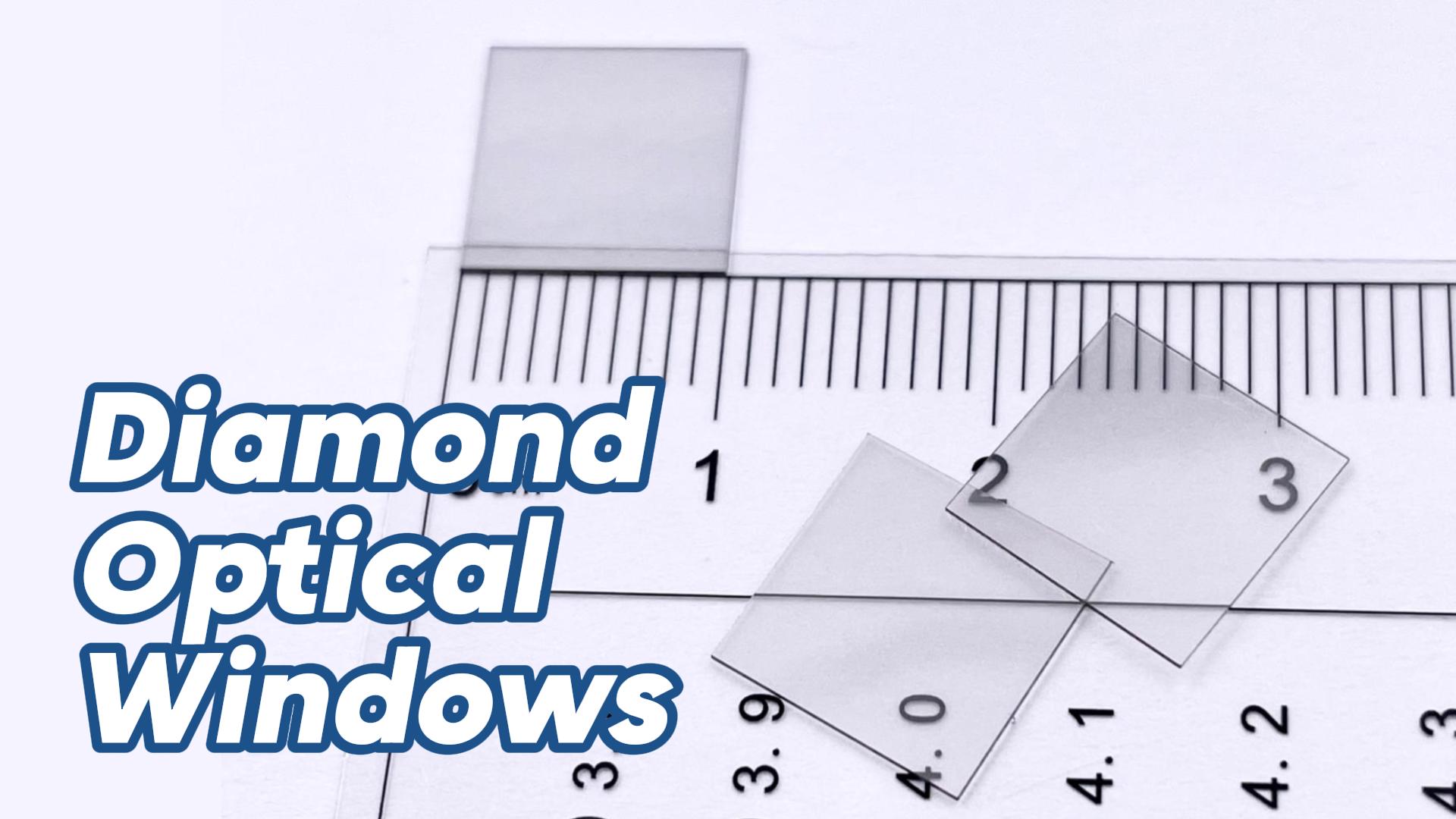

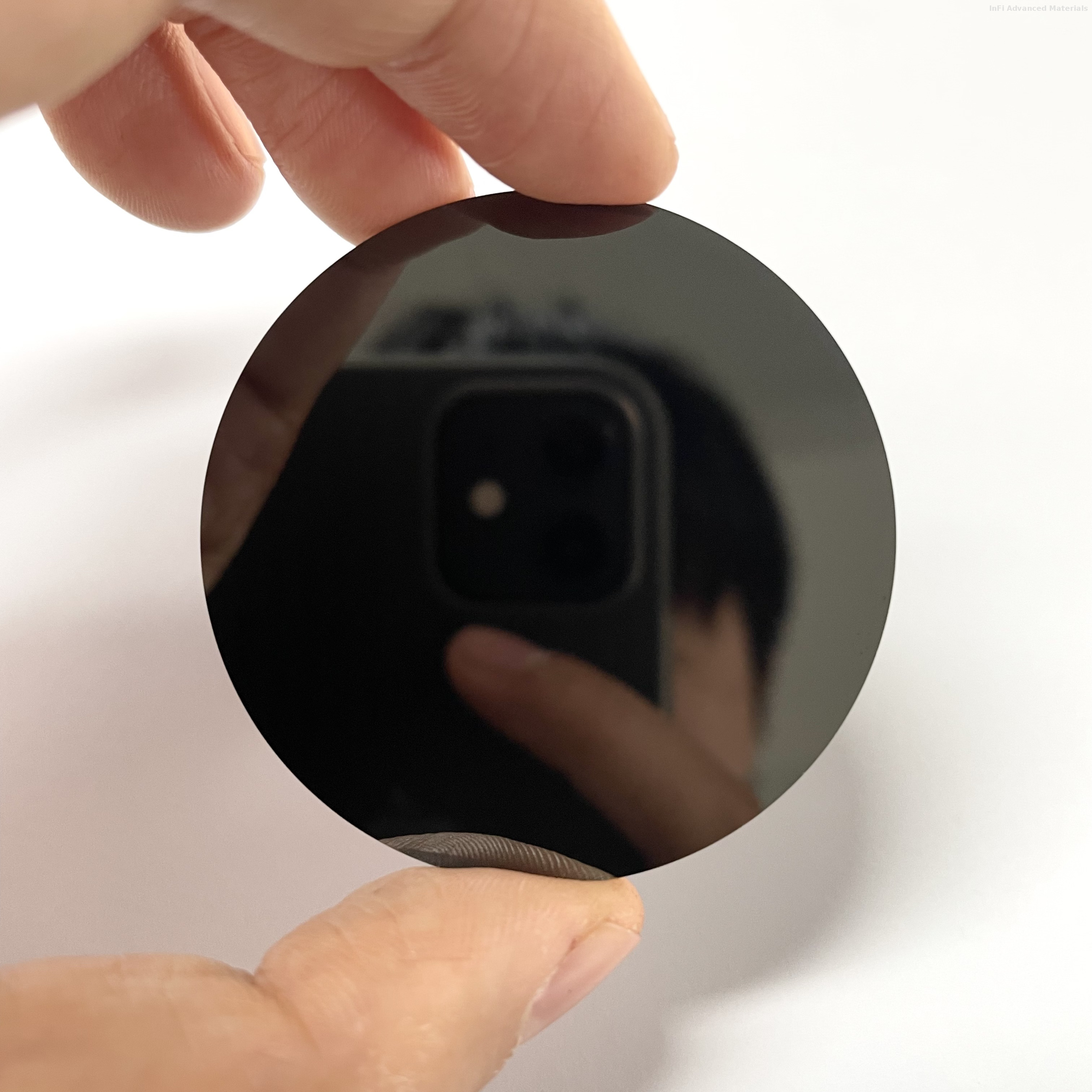

In the demanding world of high-power lasers, aerospace sensing, and advanced optics, the window material is not just a passive cover—it's a critical component that defines system performance, reliability, and limits. For applications where failure is not an option, Diamond Optical Windows engineered from optical-grade polycrystalline Chemical Vapor Deposition (CVD) diamond have emerged as the material of choice, offering a unique combination of properties unattainable by any other material.
The supremacy of diamond in extreme optics stems from its unparalleled innate properties. It is the hardest known material, offering exceptional resistance to abrasion and erosion from rain, sand, or other particulates—a crucial factor for aerospace apertures.Most importantly for thermal management, it possesses the highest thermal conductivity of any bulk material, allowing it to rapidly dissipate heat from high-power laser beams or aerodynamic heating without distorting the transmitted light.
Unlike traditional infrared window materials like zinc sulfide or sapphire, which may struggle under severe thermal and mechanical stress, diamond maintains its integrity. Furthermore, high-quality optical-grade CVD diamond offers broad spectral transmission, from the ultraviolet (UV) through the visible and far into the infrared (IR) and microwave regions.
While single-crystal diamond exists, optical-grade polycrystalline CVD diamond windows provide distinct engineering advantages for most demanding applications. The growth process allows for the creation of large, planar windows or even hemispherical domes suitable for robust aerospace systems.
Two key benefits stand out:
Superior Fracture Toughness: A polycrystalline structure, comprised of countless tiny diamond crystals, has no single cleavage plane. This means cracks cannot propagate easily through the material; they are deflected and halted at the grain boundaries. This results in exceptional resistance to thermal shock and mechanical fracture, making these windows ideal for unpredictable high-stress environments.
Engineered Optical Performance: Through precise control of the CVD process, including parameters like controlled nitrogen doping, manufacturers can tailor the microstructure of the diamond.This allows for the optimization of optical properties for specific bands, such as enhancing transmission in the critical long-wave infrared (LWIR) range for thermal imaging systems.
The unique property set of polycrystalline CVD diamond windows is revolutionizing several fields:
High-Power & Industrial Lasers: They are the preferred exit window for high-power CO₂ lasers, where their low absorption and ultra-high thermal conductivity prevent thermal lensing and damage, ensuring stable beam quality and maximum power output.
Aerospace and Defense: As infrared windows and domes on high-speed aircraft or missiles, they provide a durable, transparent barrier that can withstand extreme temperatures, pressure, and erosive particle impact while protecting sensitive IR sensors.
Multispectral and Harsh Environment Sensing: Their broad-band transparency and chemical inertness make them perfect for optical systems that must operate across multiple wavelengths or in corrosive environments.
| Feature | Traditional IR Materials (e.g., ZnS, Sapphire) | Optical-Grade Polycrystalline CVD Diamond Windows |
|---|---|---|
| Thermal Conductivity | Low (<30 W/m·K). | Extremely High (up to ~2200 W/m·K). |
| Hardness & Erosion Resistance | Moderate | Exceptional (Hardest known material). |
| Fracture Toughness | Can be brittle with cleavage planes | Very High (No cleavage planes, crack deflection). |
| Spectral Range | Often limited to specific bands | Very Broad (UV to Far-IR/Microwave). |
In conclusion, when optical systems must push the boundaries of power, speed, and environmental resistance, Diamond Optical Windows made from optical-grade polycrystalline CVD diamond provide the reliable, high-performance solution. They are not just windows; they are engineered components enabling the next generation of technological advancement.
