Diamond Frontier Application: Next-Gen Thermal Interface Material Revolutionizes Semiconductor Cooling

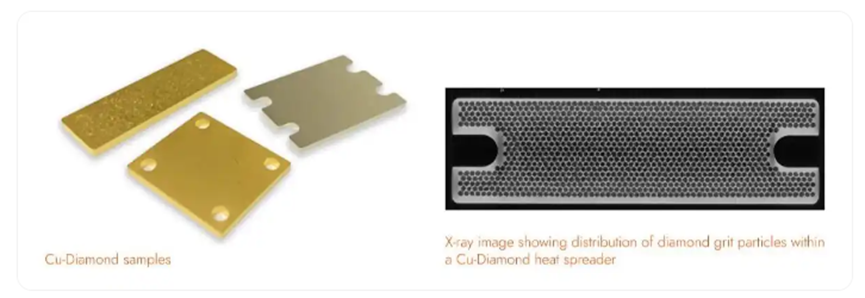

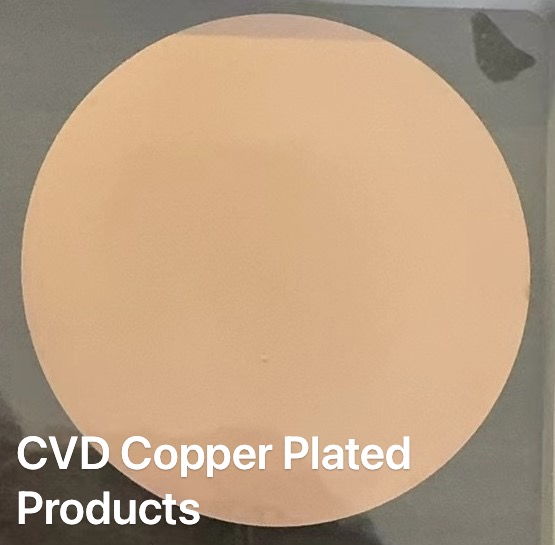

Jan 23, 2025 - A groundbreaking copper-diamond composite material has entered mass production, resolving critical thermal challenges in advanced semiconductor packaging. This innovation achieves an unprecedented balance between thermal conductivity (κ) and coefficient of thermal expansion (CTE), setting new benchmarks for power-dense electronics thermal management.


The hybrid material synergizes copper's established thermal properties with diamond's exceptional κ (2000+ W/m·K bulk value). Through proprietary gas-channel diffusion bonding, it delivers:
κ = 1000-1200 W/m·K (3× pure copper, ASTM E1461 verified)
CTE = 4.5-5.5 ppm/K (matches silicon/SiC substrates)
Interfacial thermal resistance <1 mm²·K/W
This addresses the "thermal brick wall" facing 3nm-node chips and 200W/mm² GaN devices, where traditional copper heat spreaders fail beyond 400W/cm² flux.
Hyper-Conductive Matrix
Enables 50°C hotspot reduction in 5G RF frontends during 100% duty cycle operation.
Zero Delamination Risk
CTE matching eliminates solder joint failures under 5000 thermal cycles (MIL-STD-883H).
Military-Grade Durability
Vickers hardness >600 HV withstands 50G mechanical shock (IEC 60068-2-27).
Design Flexibility
Laser-machinable to 50μm thickness with <1μm surface roughness (ISO 1302).
Immediate Use Cases
| Sector | Application | Thermal Gain |
|---|---|---|
| HPC/AI | 3D chiplet interposers | 40% lower θJA |
| 5G/6G | mMIMO AAU power amplifiers | 60°C Tj reduction |
| EV | SiC traction inverter modules | 2× lifespan @175°C |
| Photonics | Co-packaged optics | 0.01°C/nm gradient |
Emerging Opportunities
Quantum computing cold plates (<10mK stability)
Nuclear reactor instrumentation (10^18 n/cm² tolerance)
Hypersonic vehicle electronics (2000°C transient survival)
Current 200mm wafer-level processing will scale to 300mm by 2026, reducing cost by 45%. Defense-grade variants and graphene-doped versions are under qualification.
