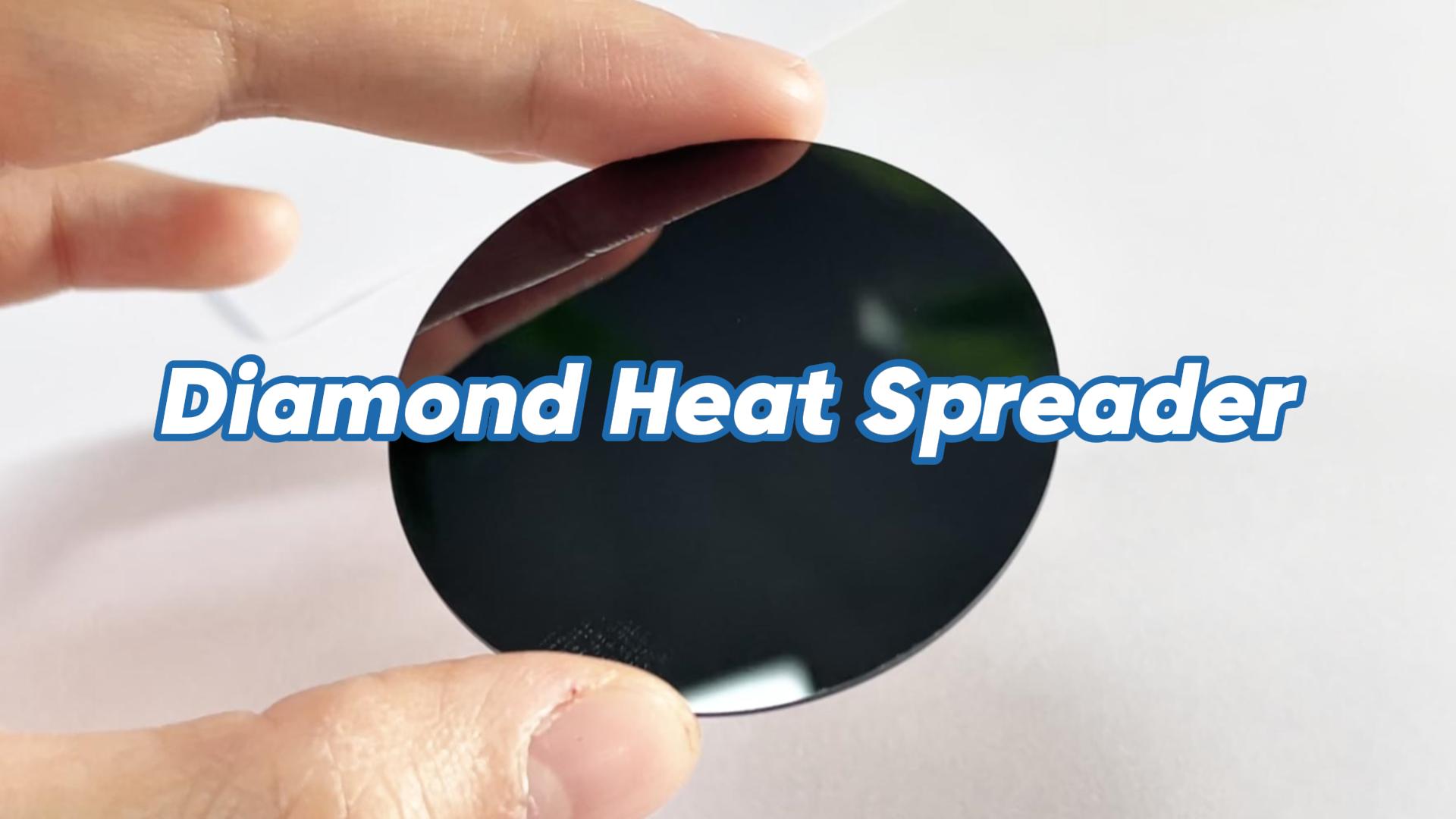

As the power density of chips in fields like 5G/6G communication, artificial intelligence (AI), and high-performance computing (HPC) continues to surge, managing heat has become one of the most critical challenges for device reliability and performance.Traditional cooling materials are reaching their limits. This is where the diamond heat spreader emerges as a game-changing thermal management solution.
The core advantage of a diamond heat spreader lies in diamond's extraordinary physical properties. It possesses the highest thermal conductivity of any natural material, ranging from 1,000 to over 2,200 W/(m·K)—approximately five times higher than copper.This allows it to rapidly "spread" heat away from concentrated hotspots, preventing localized overheating that can degrade performance and lifespan.
Furthermore, diamond exhibits a low coefficient of thermal expansion (CTE) and high electrical resistivity. The low CTE is crucial for better compatibility with semiconductor materials like GaN (Gallium Nitride), reducing damaging thermal stresses during operation. Its electrical insulation property also simplifies package design.
Diamond heat spreaders are indispensable in high-power, high-frequency applications where thermal flux is extreme:
RF & Power Electronics: They are vital for dissipating heat from GaN-based high-electron-mobility transistors (HEMTs) used in 5G/6G base stations, radar, and satellite communications, where heat fluxes can exceed 10 kW/cm².
Advanced Computing: AI accelerators, GPU/TPU, and high-performance processors generate intense heat. Integrating a diamond heat spreader directly into the package or as a microchannel-cooled substrate is a forward-looking path to manage heat fluxes of hundreds of W/cm².
Optoelectronics & Lasers: High-power laser diodes and LED arrays require efficient heat sinking to maintain wavelength stability and output power.
Precision Measurement: Recent developments also show their use in sensitive thermal converters to achieve more uniform temperature distribution and improve measurement sensitivity.

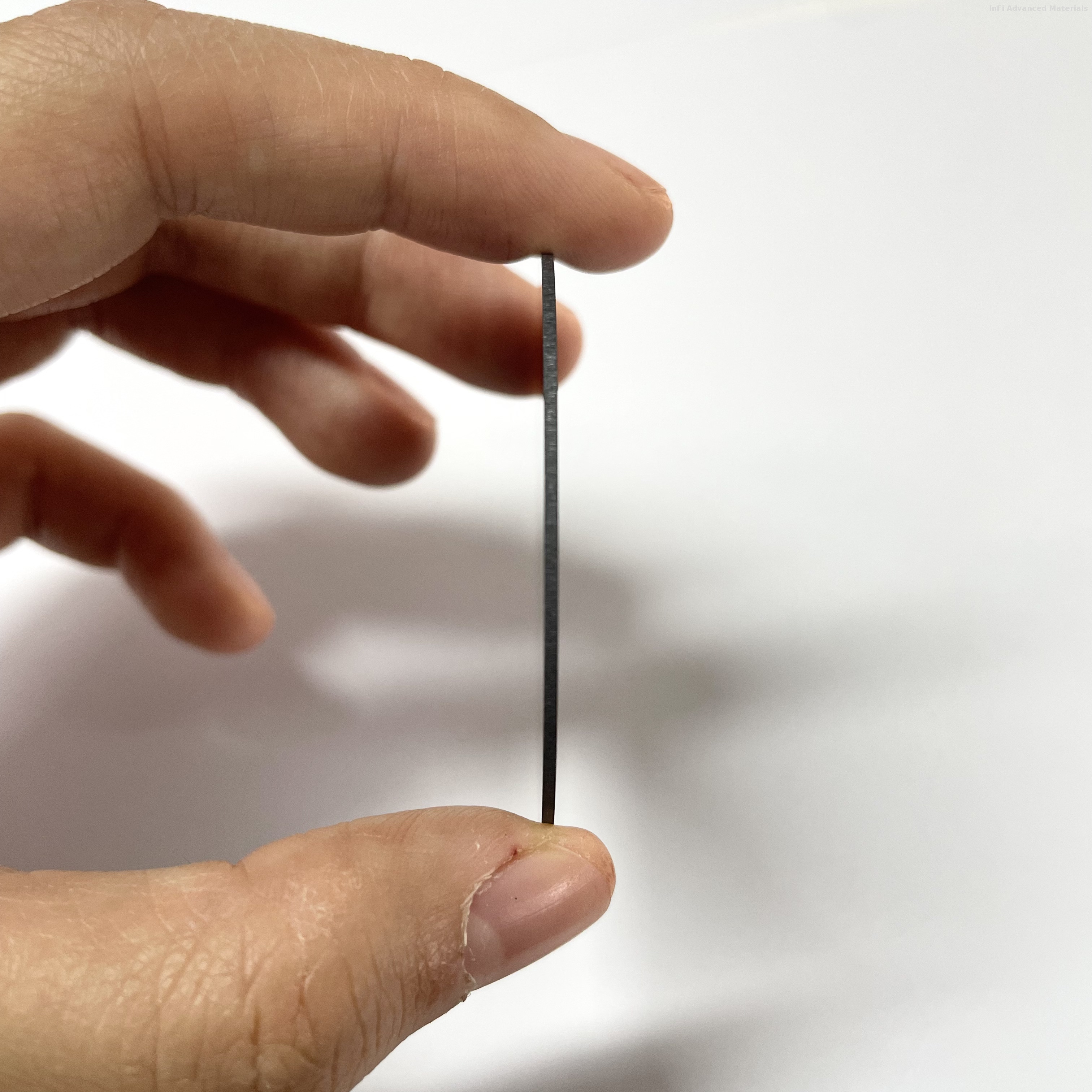

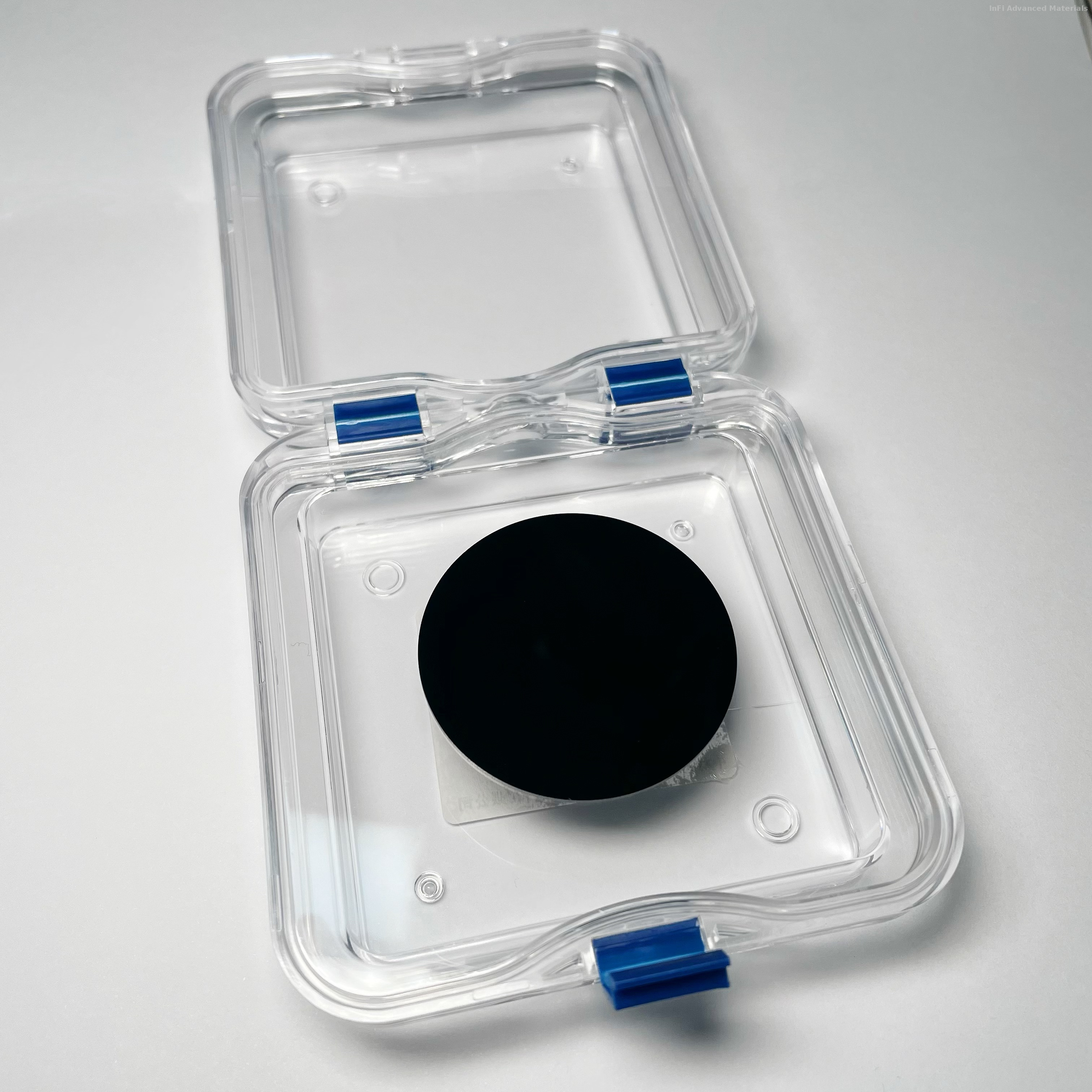

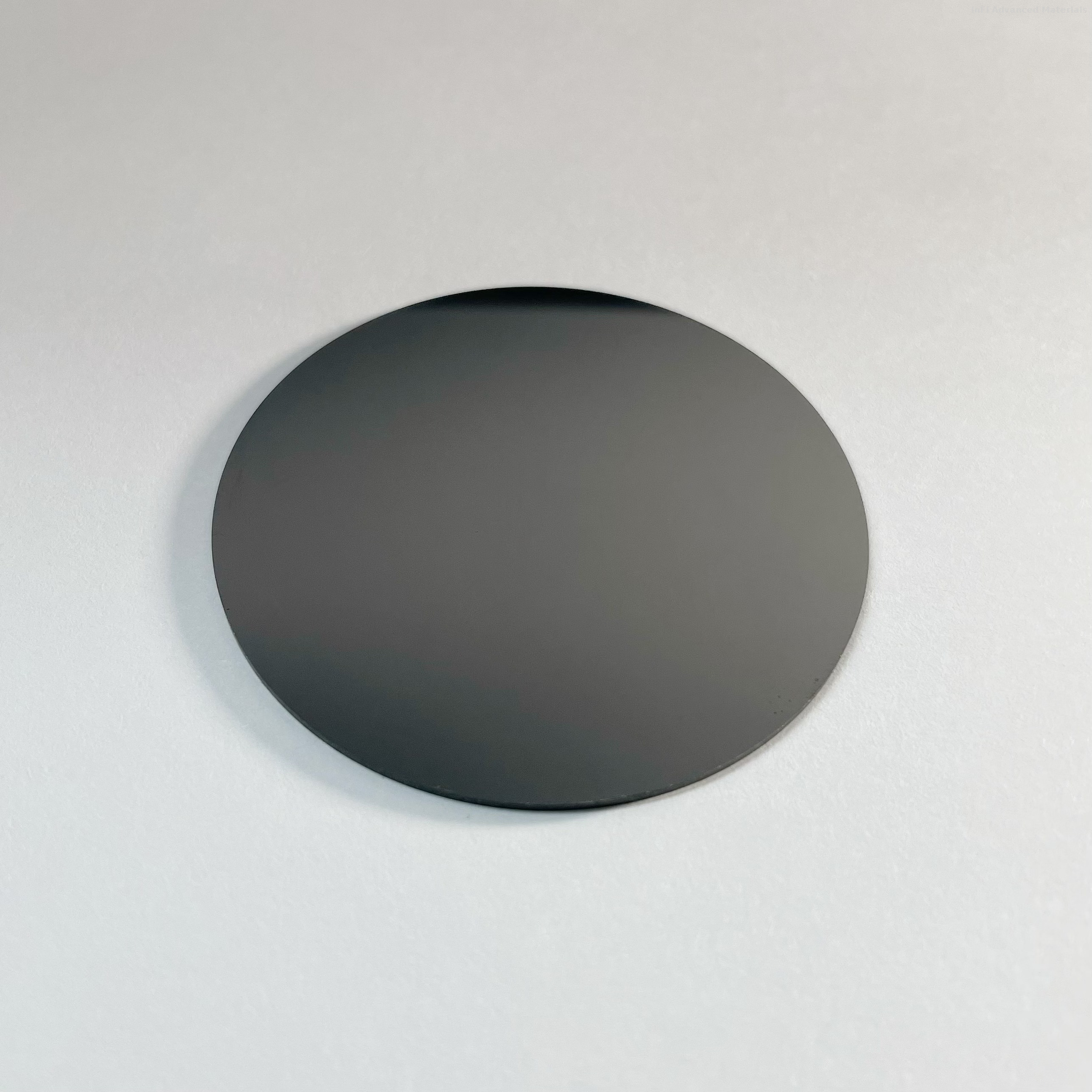

The industry is advancing rapidly with practical solutions. Polycrystalline diamond films grown by Chemical Vapor Deposition (CVD) are now available. For instance, companies have successfully produced 6-8 inch polycrystalline diamond wafer heat sinks with thicknesses from 0.02mm to 1mm, meeting (mass production) standards for(high-end) applications.
Additionally, metal-diamond composite heat spreaders (e.g., diamond-copper) offer an excellent balance of very high thermal conductivity (400-700 W/(m·K)) and a tailorable CTE, making them easier to integrate into existing package architectures.
In summary, the diamond heat spreader is no longer a laboratory curiosity but a critical, industrially viable technology solving the most demanding thermal challenges. By enabling higher power densities, greater reliability, and continued miniaturization, it is powering the future of electronics, from everyday connectivity to cutting-edge scientific instruments.
