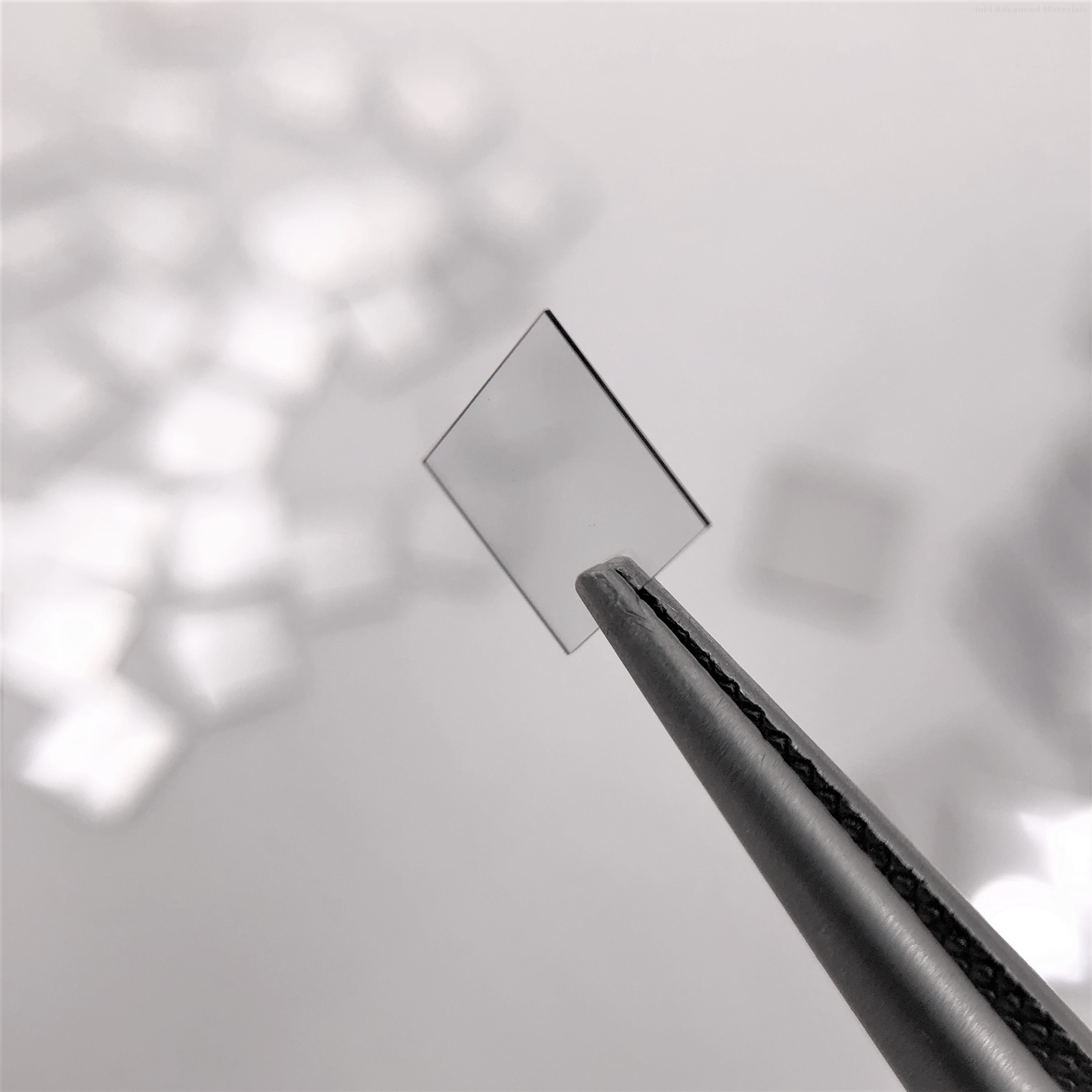

Large-Area Monocrystalline Diamond Heat Spreaders: Revolutionizing Thermal Management

Monocrystalline diamond heat spreaders represent a quantum leap in thermal management technology, offering transformative benefits for advanced electronics:
1. Extreme Thermal Conductivity
With a thermal conductivity of 2,000 W/(m·K – 5x higher than copper – these diamond spreaders enable rapid heat dissipation from high-power components. This effectively reduces junction temperatures by 30-50%, significantly enhancing device reliability and lifespan in power-intensive applications.
2. Superior Electrical Insulation
Featuring an electrical resistivity exceeding 10¹⁶ Ω·cm, our diamond solutions eliminate electromagnetic interference (EMI) risks, making them ideal for high-frequency RF devices and precision measurement systems.
3. Unmatched Chemical Stability
Resistant to oxidation up to 800°C and all common corrosive agents, these heat spreaders maintain performance integrity in extreme environments – from aerospace avionics to deep-sea exploration systems.
4. Ultra-Compact Design
Diamond heat spreaders achieve a breakthrough 0.5mm thickness profile, saving 70% space compared to traditional solutions. This enables:
40% weight reduction in mobile devices
25% higher component density in PCB layouts
Enhanced thermal efficiency in confined spaces
1. 5G Infrastructure
Reduces base station power amplifier temperatures by 45°C
Enables continuous 100W/mm² power density operation
Extends MIMO antenna array lifespan by 3x
2. Hyperscale Data Centers
Cuts GPU/CPU thermal throttling incidents by 90%
Supports 50kW/rack density in AI training clusters
Reduces cooling energy consumption by 35%
3. EV Power Systems
Maintains battery pack ΔT <5°C at 4C charging rates
Withstands 200°C peak temperatures in SiC inverters
Achieves 98% thermal interface stability over 10,000 cycles
4. Photonic Computing
Enables <0.01°C/nm thermal gradients in laser arrays
Supports 200W/mm² heat flux in optical interconnects
Eliminates thermal lensing effects in quantum chips
