Diamond Technology: Unlocking the Future of High-Power Electronics
In power electronics, achieving both absolute safety when devices are off and high-efficiency power output when active has long been a critical challenge. Recently, a novel diamond-based transistor has achieved breakthrough performance in "extreme enhancement mode," advancing practical applications of diamond semiconductors in smart grids, new energy vehicles, and other high-power systems.



Diamond, nature’s hardest material, boasts extraordinary electrical properties:
l Ultrawide bandgap: 5.47 eV (vs. silicon’s 1.12 eV)
l Exceptional thermal conductivity: 13× higher than silicon
l High breakdown electric field, radiation resistance, and extreme temperature tolerance
These traits make diamond ideal for high-power, high-frequency, and high-temperature electronics, such as EV inverters and ultra-high-voltage grid switches.

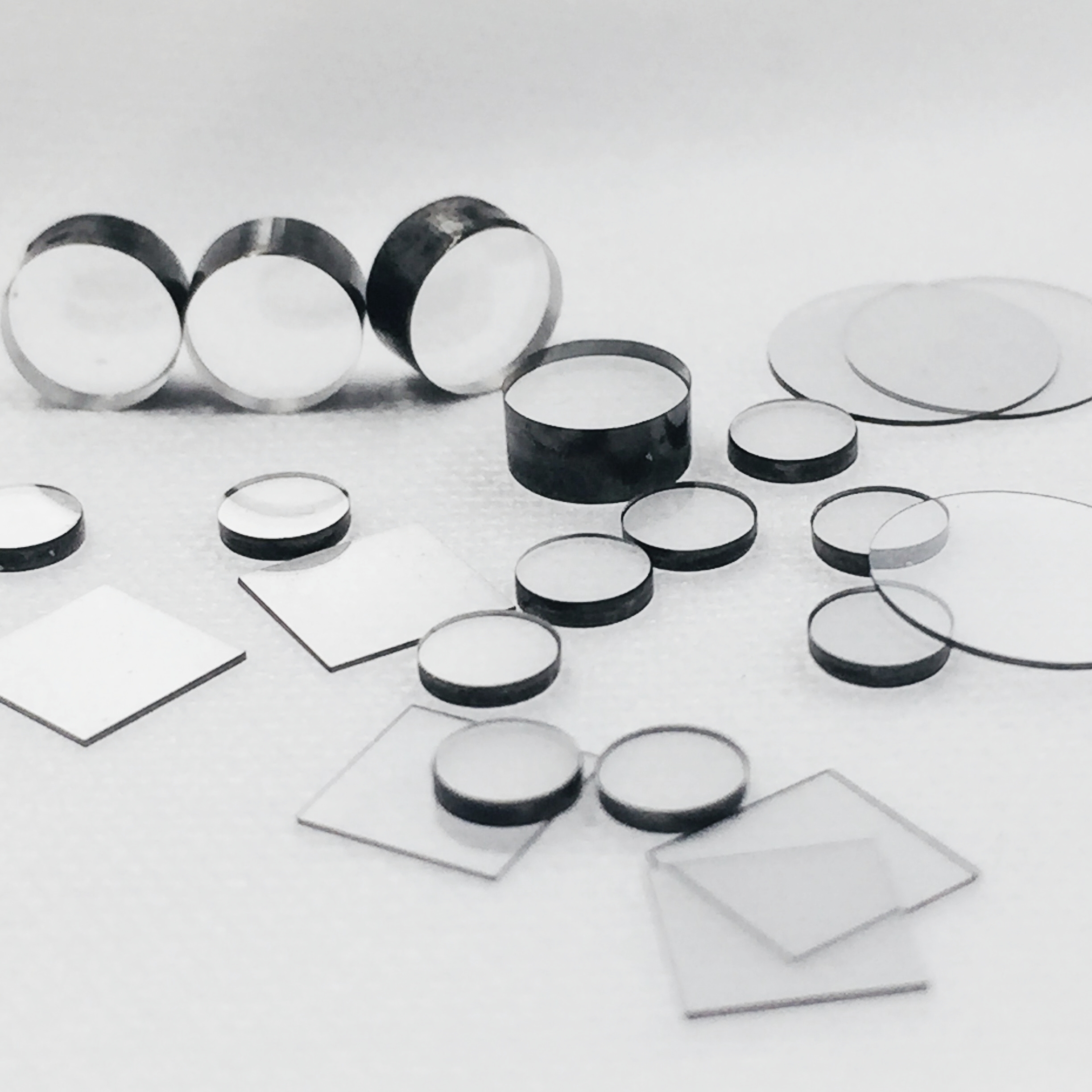

However, natural diamonds are unsuitable for semiconductor use. Scientists now synthesize high-quality diamond films via chemical vapor deposition (CVD) and modify their surfaces (e.g., hydrogen termination) to enable controllable conductivity. The research team leveraged hydrogen-terminated diamond to design a new field-effect transistor (FET) that overcomes historical limitations.
Traditional diamond transistors faced a trade-off:
l Complete insulation when off but limited current when active, or
l High current capacity with leakage risks when off
The team resolved this paradox through two innovations:
1.Surface Engineering: Hydrogen termination creates conductive channels, while an aluminum oxide gate dielectric layer enhances insulation and gate control.
2.Extreme Enhancement Mode:
l Requires -6V threshold voltage to activate (vs. -3V for conventional devices), ensuring fail-safe shutdown during voltage fluctuations.
l Delivers record current density when active.
This "rock-solid in standby, powerful in operation" design balances safety and efficiency.
The new diamond transistor promises transformative impacts:
l Smart Grids: Withstands tens of thousands of volts, reducing energy loss in high-voltage transmission systems.
l New Energy Vehicles: Enables compact, heat-resistant motor controllers and onboard chargers to extend range and cut charging times.
l Aerospace: Survives extreme radiation and temperatures near rocket engines.
By optimizing charge mobility, the team further reduced energy consumption. While this milestone demonstrates diamond’s potential, industrialization requires advances in growth and processing techniques. As diamond technology matures, these transistors may replace silicon-based devices, becoming the cornerstone of next-gen high-power electronics. Soon, the "diamond heart" could pulse in EVs, charging stations, and even smartphone fast chargers.
